HTC 5000V / 200G Ohm Digital Insualtion Tester, 6350IN
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- AC Voltage Range: 0 - 600V
- Resolution: 1V
- Accuracy: ±2.0% of rdg + 5 digits
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,204 (Incl. of all taxes)
₹7,800 + ₹1,404 GST (18%)
MRP was MRP ₹9,750
Save 20%
7 Business Days
1
90303350
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3½ Digit Insulation Tester with Backlight.
- 1,999 Count.
- Data Hold.
- Test Range 100 V to 5000 V.

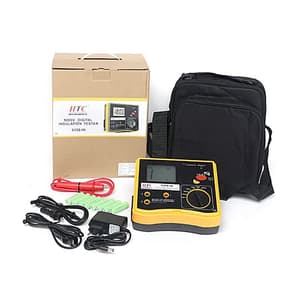

Package Contents:
- Soft Carrying Case,
- Test Lead,
- Manual,
- Power Adaptor,
- AA 1.5V X 8 (Rechargeable Battery).
| Range | 0.1M 20G for 100/250/500 V 0.1M 200G for 1000/2500/5000 V |
| Resolution | 0.01MΩ |
| Accuracy | 0.1MΩ-200MΩ ± (3% rdg + 5 dgt) 200MΩ-10GΩ ± (5% rdg + 10 dgt) 10GΩ-200GΩ ± (10% rdg + 5 dgt) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| AC Voltage Range | 0 - 600V |
|---|---|
| Resolution | 1V |
| Accuracy | ±2.0% of rdg + 5 digits |
| Testing Voltage | 100/250/500/1000/2500/5000 V |
| Out Voltage | 90%~110% of the test voltage |
| Power | AA 1.5V X 8 |
| Dimension | 190 (H) x 155 (W) x 75 (D) mm |
