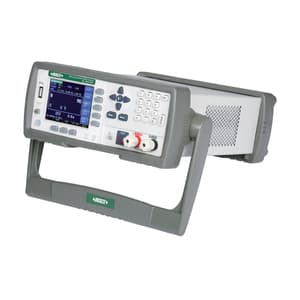

Insize 10 - 1000V Insulation Resistance Tester, 9456-DR01
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 2.25 kg
- Output Voltage Range: 10V - 1000V
- Insulation Resistance Range: 0.000MOhm - 9.99GOhm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹98,239 (Incl. of all taxes)
₹83,253 + ₹14,986 GST (18%)
MRP was MRP ₹1,22,431
Save 32%
5 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Rapidly assess in as fast as 50 ms
- Quick discharge of residual voltage
- Charge timer function for capacitive loads
- The contact check function and short-circuit check function prevent errors due to poor contact and potential defects
- Comparator function, beep can be set
- Save 10 test files, USB supports file access
- Various communication interfaces to meet automation test requirements
- Display Result: reading, current, resistance, peak, sorting result, audible & visual alarm
- Interface: Handler interface, RS232 interface, USB interface, RS485 interface
List Sweep:
| List Count | 5 Groups |
| Discharge Time | Synchronized Setup: 10ms~10s |
| Charge Time | Independent Setup: 0.1s~99s |
| Test Time | |
| Comparator | Independent Setup: 0.000MOhm - 10GOhm |
Measuring Speed:
| Contact Check | mode off | mode on |
| Auto Range |
|
|
| Manual Range |
|
|
Technical Data:
| Test Voltage | Range | Accuracy | Resolution |
| 10V≤Vx<100V | 0MOhm - 4MOhm | ±(2%+5d) | 0.001MOhm |
| 1.9MOhm - 40MOhm | 0.01MOhm | ||
| 19MOhm - 400MOhm | ±(5%+5d) | 0.1MOhm | |
| 100V≤Vx<500V | 0MOhm - 4MOhm | ±(2%+5d) | 0.001MOhm |
| 1.9MOhm - 40MOhm | 0.01MOhm | ||
| 19MOhm - 400MOhm | ±(5%+5d) | 0.1MOhm | |
| 190MOhm - 4GOhm | ±(5%+10d) | 1MOhm | |
| 500V≤Vx≤1000V | 0MOhm - 4MOhm | ±(2%+5d) | 0.001MOhm |
| 1.9MOhm - 40MOhm | 0.01MOhm | ||
| 19MOhm - 400MOhm | 0.1MOhm | ||
| 190MOhm - 4GOhm | ±(5%+5d) | 1MOhm | |
| 4GOhm - 9.99GOhm | ±(25%+10d) |
What's Included In This Package:
- 1x Insulation Resistance Tester
- 2x Test Leads
- 1x HANDLER Connector
- 1x RS232 Communication Cable
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Output Voltage Range | 10V - 1000V |
|---|---|
| Output Voltage Resolution | 1V |
| Output Voltage Setting Accuracy | ±(1%+2d) |
| Output Voltage Readback Accuracy | ±(2%+1d) |
| Insulation Resistance Range | 0.000MOhm - 9.99GOhm |
| Insulation Resistance Resolution | 0.001MOhm - 1MOhm |
| Insulation Resistance Basic Accuracy | ±2% |
| Short-circuit Current | <2mA |
| Max. of Charging Current | 1.8mA |
| Operating Environment | 10°C - 40°C (Temperature) / 10% - 85% (Relative Humidity) |
| Power Supply | AC 100V - 240V, 50Hz/60Hz, 20VA |
| Dimensions (L x W x H) | 264 x 304 x 107 mm |
