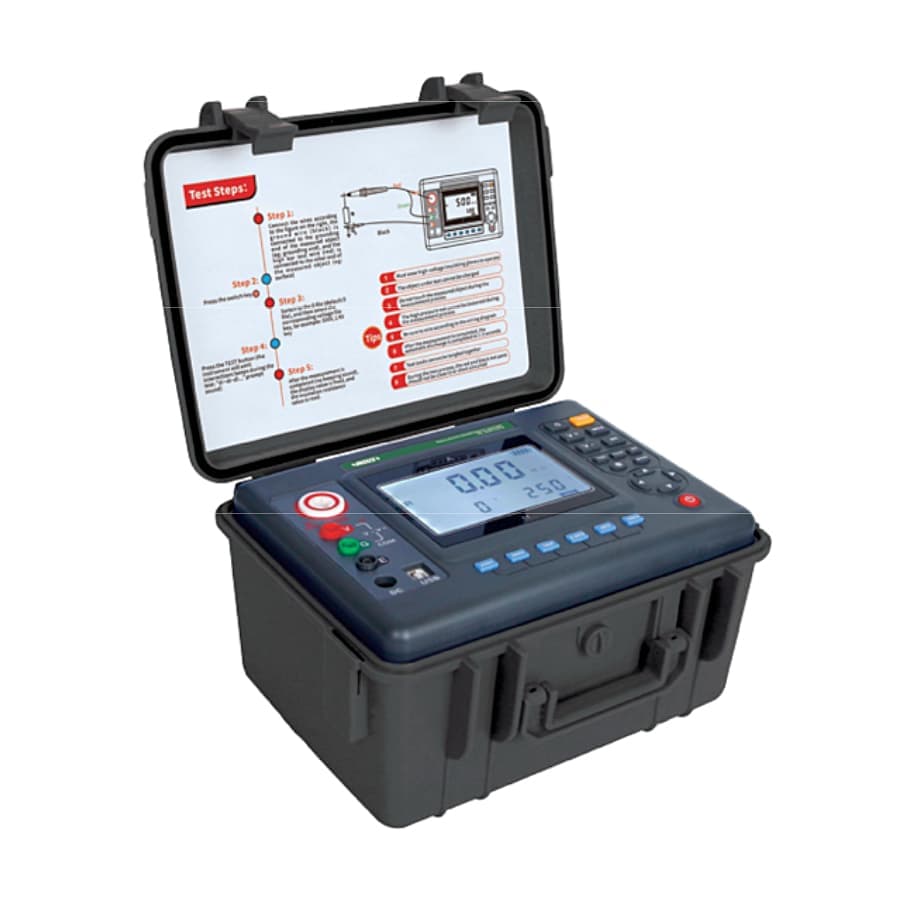

Insize -10 ~ 40°C Operation Temperature Insulation Resistance Tester, 9454-SR35
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 1.28 kg
- Operation Temperature: -10 ~ 40°C
- Operation Humidity: <85%RH
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹45,226 (Incl. of all taxes)
₹38,327 + ₹6,899 GST (18%)
MRP was MRP ₹53,232
Save 28%
5 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Continuous measurement, comparative measurement
- Timed measurement, polarization index measurement
- AC and DC voltage measurement
- Data storage, USB interface data transfer
- High voltage output warning, automatic discharge
- Battery level indication
- Backlight display function
- Auto power off function
- Open-circuit voltage: DC voltage 0%~+20%
- Insulation resistance of 100G ohm or more should be measured under 50% RH humidity
Technical Data:
| Insulation Resistance | Test Voltage | 500V | 1000V | 2500V | 5000V |
| Range | 0.5M ohm - 20G ohm | 1M ohm - 40G ohm | 2.5M ohm - 100G ohm | 5M ohm - 1000G ohm | |
| Resolution |
|
||||
| Accuracy |
|
||||
| DC Voltage | Range | ±(30 - 600)V | |||
| Resolution | 1V | ||||
| Accuracy | ±(2%+3d) | ||||
| AC Voltage (50/60Hz) | Range | (30 - 600)V | |||
| Resolution | 1V | ||||
| Accuracy | ±(2%+3d) |
What's Included In This Package:
- 1x Insulation Resistance Tester
- 3x Alligator Clip Test Lead
- 8x Battery (LR14)
- 1x Power Adapter
- 1x USB Cable
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Short-circuit Current | >3.0mA |
|---|---|
| Operation Temperature | -10 ~ 40°C |
| Operation Humidity | <85%RH |
| Power Supply | 8 LR14 Batteries or Power Adapter |
| Dimension (mm) | 202 x 155 x 94 mm |
