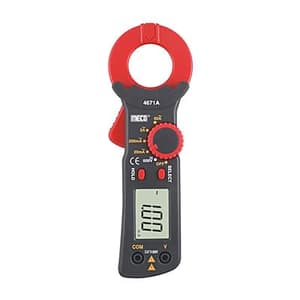

Leakage Current Tester 10mA high resolution on 40mA range. Shield transformer jaws to minimize the effect of external stray magnetic field. Large jaw with 30 mm diameter. Continuity and frequency measurements. Max/Min, Data Hold functions and Relative Measurement. 600V overload protection for ohm measurement. Easy single rotary switch for any function selection.

Features & Benefits:

• 10µA Ultra High Resolution
• Large Conductor Diameter (30mm)
• AC Current in 4 Ranges (20mA, 200mA, 2A, 60A)
• Wide Frequency Response (40Hz-400Hz)
• AC A, AC V, DC V
• Large 3½ Digit LCD (1999 Count)
• Data Hold
• Low Battery Indication
• Auto Power Off
• Wrislet

Accessories:

• Pair of test leads x 1,
• Instruction manual x 1,
• 1.5V batterys (installed) x 2,
• Carring Case x 1

Specifications:

AC Current

Range	Resolution	Accuracy
20mA	10mA	±2.5% ± 5 dgts
200mA	100mA
2A	1mA
60A	100mA	±3.0%±5dgts

Though the meter can display up to 200A, it is not calibrated beyond 60A

AC Voltage :

Range	Resolution	Accuracy
600V	1V	±2.0% ± 5 dgts

DC Voltage

Range	Resolution	Accuracy
600V	1V	±2.0% ± 5 dgts



General Specifications:

Jaw Opening Size : 30mm max. (approx.)

Battery Type : two 1.5V AAA

Display : 3-1/2 Digits 1999 counts

Range Selection : manual

Overload Indication : OL

Low battery Indication : Yes

Power Consumption: 15mA

Operating Temperature : -100C to 500C

Operating Humidity : less than 85% relative

Storage Temperature : -200 C to 600 C

Storage Humidity : less tban 75% relative

Altitude : up to 2000M

Dimensions : 183 x 63 x 29.6mm (approx.)

Weight : 200gms including battery (approx.)

Accessories : Carrying bag x 1 Instruction manual x 1 1.5V battery (installed) x 2 Pair of test leads x 1
