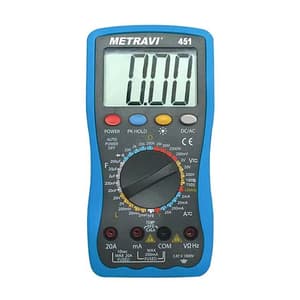

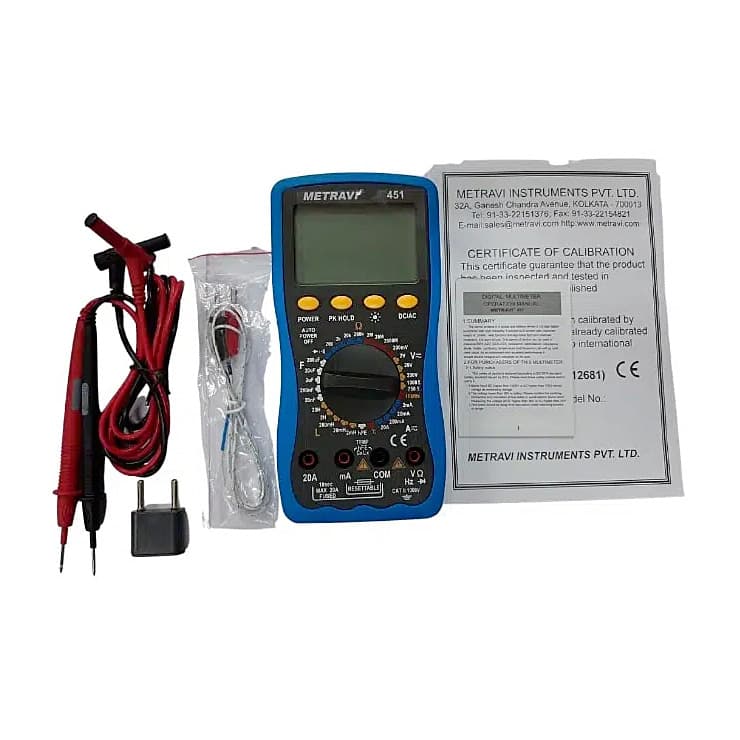

Metravi 3-1/2 Digits / 200 - 2000M Ohms Digital LCR Meter With Multimeter, 451
Roll over image to zoom zoom_in
- Weight: 0.45 Grams
- Product Type: LCR Meter
- DC Voltage Range: 200mV to 1000V
- AC Voltage Range: 200mV to 750V
- DC Current Range: 2mA to 20A
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹4495.8 (Incl. of all taxes)
₹3810+ ₹685.8 GST (18%)
MRP ₹5603
SAVE 32%
5 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
3-1/2 Digits, Backlit LCD, Peak Hold, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Inductance, Frequency, Temperature, Diode, Transistor and Continuity Test. With Overload Protection.
Features:
- Peak Hold facility Display: 3-1/2 Digital 1999 Counts Backlit LCD
- Low Battery and Overload Indication
- Confirms to IEC1010 Standards
- Auto Power Off
- DC Voltage : 0 – 200mV/2V/20V/200V/1000V
- Accuracy : ±0.5%
- AC Voltage : 0 – 200mV/2V/20V/200V/750V
- Accuracy : ±0.8%
- DC Current : 0 – 2mA/20mA/200mA/20A.
- Accuracy : ±0.8%
- AC Current : 0 – 2mA/20mA/200mA/20A.
- Accuracy : ±1.0%
- Resistance : 0 – 200/2k/20k/200k/2M/20M/2000M.Ohms
- Accuracy : ±0.8%
- Capacitance : 0 – 20nF/200nF/2uF/20uF/200uF
- Accuracy : ±2.5%
- Frequency : 0 – 2k/20k/200k/2M/10MHz
- Accuracy : ±1.0%
- Inductance : 0 – 2m/20m/200m/2/20H
- Accuracy : ±2.5%
- Temperature : -40°C~+1000°C
- Accuracy : ±1.0%
- Diode Test, Transistor Test and Audible Continuity test facility.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.LC.00005 |
|---|---|
| Product Type | LCR Meter |
| Model No | 451 |
| Display | Backlit LCD |
| Colour | Blue-Black |
| Sampling Time | 3 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| DC Voltage Range | 200mV to 1000V |
| AC Voltage Range | 200mV to 750V |
| DC Current Range | 2mA to 20A |
| AC Current Range | 2mA to 20A |
| Resistance Range | 200 to 2000M Ohms |
| Capacitance Range | 20nF to 200uF |
| Inductance Range | 2mH to 20H |
| Frequency Range | 2kHz to 10MHz |
| Temperature Range | -20°C to 1000°C |
| DC Current Accuracy | ±0.8% |
| AC Current Accuracy | ±1% |
| DC Current Resolution | 1µA to 1mA |
| AC Current Resolution | 1uA to 1mA |
| DC Voltage Accuracy | ±0.5% |
| DC Voltage Resolution | 100uV to 1V |
| AC Voltage Accuracy | ±0.8% |
| AC Voltage Resolution | 100uV to 1V |
| Resistance Accuracy | ±0.8% |
| Resistance Resolution | 0.1 to 1M Ohms |
| Capacitance Accuracy | ±2.5% |
| Capacitance Resolution | 10pF to 100nF |
| Inductance Accuracy | ±2.5% |
| Inductance Resolution | 1uH to 10mH |
| Frequency Accuracy | ±1.0% |
| Frequency Resolution | 1Hz to 10kHz |
| Temperature Accuracy | ±1.0% |
| Temperature Resolution | 1°C |
| Certifications | IEC1010 |
