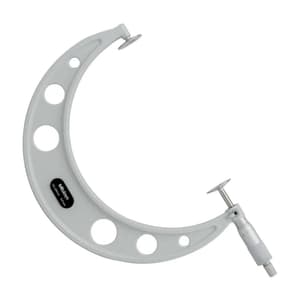

A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.

Features:

• Measures "root tangent length" of spur gears and helical gears.
• Equipped with a Ratchet Stop for constant measuring force.
• Measuring the root tangent length of spur and helical gears.
• You can measure recessed features that are difficult to reach with a standard micrometer.

Package Content:

• Disc Micrometer
• Spanner
• Setting Standard

Dimensions Measurement:

L: 175 mm a: 14.5 mm b: 118 mm c: 6 mm e: 30 mm f: 12 mm t: 1 mm
