Mitutoyo 25 - 50 mm Disk Micrometer, 123-102

Name: Mitutoyo 25 - 50 mm Disk Micrometer, 123-102
Brand: Mitutoyo
SKU: ME.MI.DI.00034
Price: 7125 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Mitutoyo

SKU: ME.MI.DI.00034

Model: 123-102

Roll over image to zoom zoom_in

Visit Mitutoyo Store keyboard_double_arrow_right

Key Features

Weight: 250 Grams
Product Type: Disk Micrometer
Range (mm): 25 - 50 mm

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹8407.5 (Incl. of all taxes)

₹7125+ ₹1282.5 GST (18%)

MRP ₹9500

SAVE 25%

Dispatch: 1 Business Days

Items in Pack: 1 Pcs

HSN Code: 90173010

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

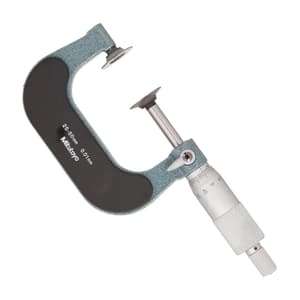

A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.

Features:

Measures "root tangent length" of spur gears and helical gears.
Equipped with a Ratchet Stop for constant measuring force.

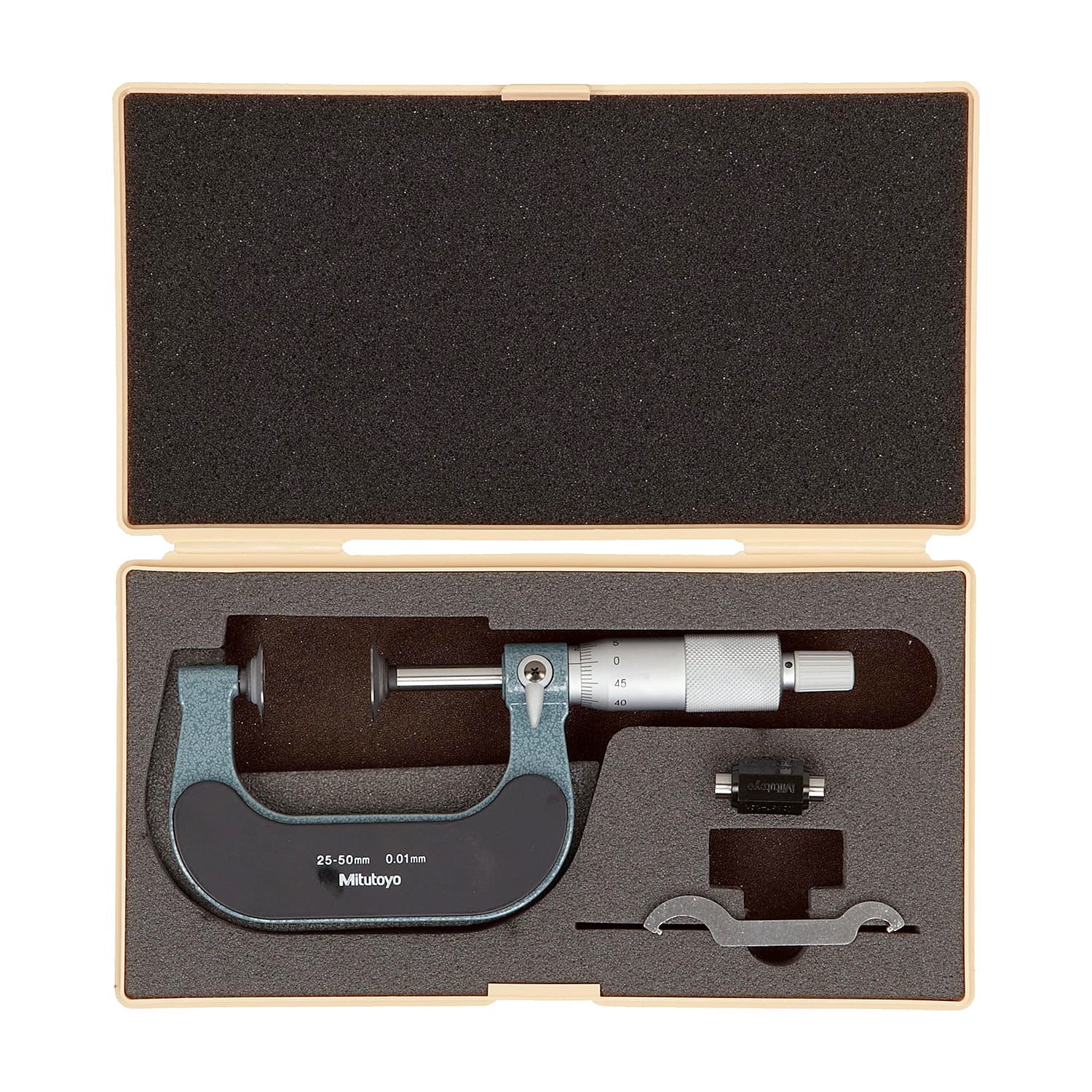

Package Content:

Disc Micrometer
Spanner
Setting Standard

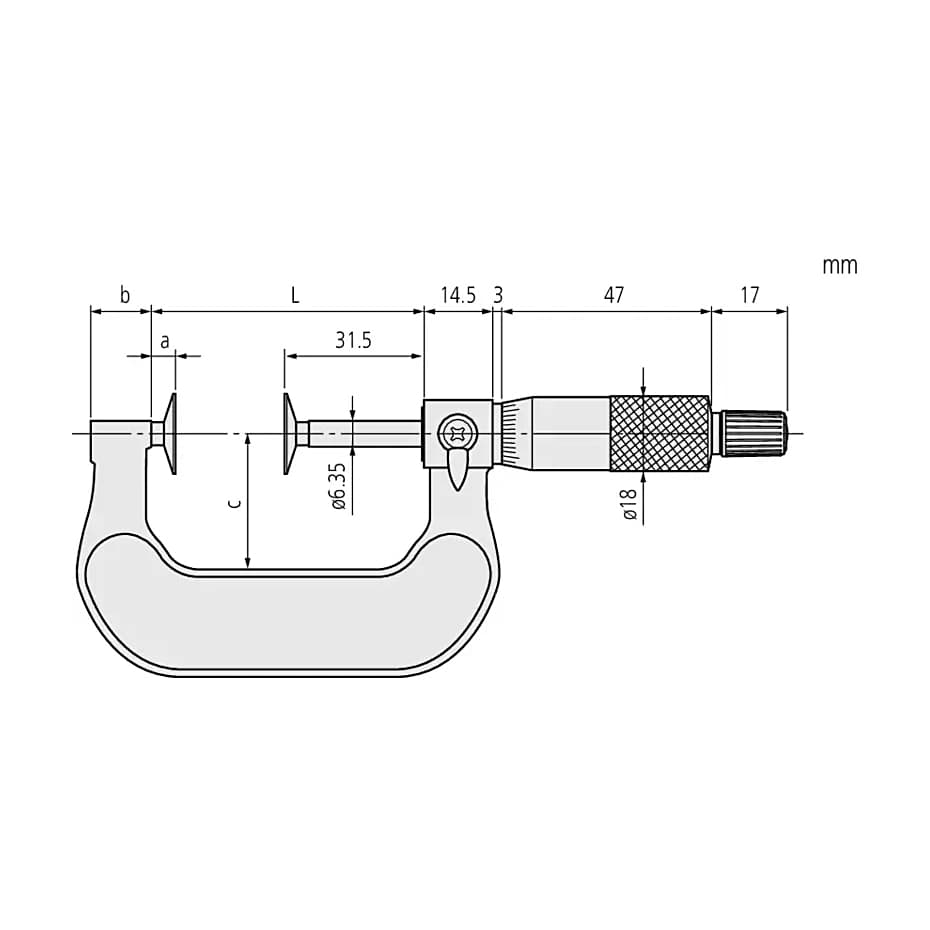

Dimensions Measurement:

L: 25 mm
a: 13.8 mm
b: 32 mm
c: 5.7 mm
e: 20 mm
f: 8 mm
t: 0.7 mm

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKU	ME.MI.DI.00034
Product Type	Disk Micrometer
Model No	123-102
Range (mm)	25 - 50 mm
Graduation	0.01 mm
Max. Permissible Error JMPE (µm)	±4µm
Anvil Dia (mm)	Ø20 mm
Measurable Module	0.5 - 6 mm
Flatness	1µm
Parallelism	4µm
Measuring Force	5 - 10
Disk Size	20 mm
Scale	Thimble & Sleeve Satin Chrome Finish
