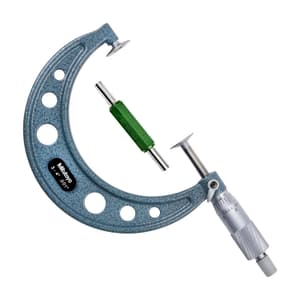

Mitutoyo 3 - 4 inch Disk Micrometer, 123-128

Shop all Mitutoyo

SKU: ME.MI.DI.00052

Model: 123-128

Roll over image to zoom zoom_in
  1. Mitutoyo 3 - 4 inch Disk Micrometer, 123-128
Visit Mitutoyo Store keyboard_double_arrow_right
  • Weight: 250 Grams
  • Product Type: Disk Micrometer
  • Range (Inches): 3 - 4 inch
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹9532.04 (Incl. of all taxes)

₹8078+ ₹1454.04 GST (18%)

MRP ₹10770

SAVE 25%

1 Business Days

1 Pcs

90173010

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.


Features:

  • Measures "root tangent length" of spur gears and helical gears.
  • Equipped with a Ratchet Stop for constant measuring force.


Package Content:

  • Disc Micrometer
  • Spanner
  • Setting Standard

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.MI.DI.00052
Product TypeDisk Micrometer
Model No123-128
Range (Inches) 3 - 4 inch
Graduation 0.001 inch
Max. Permissible Error JMPE ±0.0003 inch
Anvil Dia 0.787 inch
Measurable Module 0.5 - 6 mm
Flatness 0.00004 inch
Parallelism 0.00024 inch
Measuring Force 5 - 10
Disk Size 20 mm
Scale Thimble & Sleeve Satin Chrome Finish
