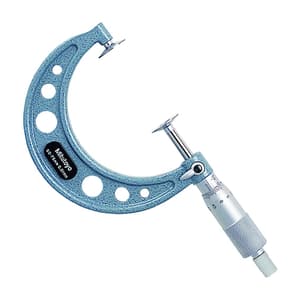

Mitutoyo 50 - 75 mm Disk Micrometer, 123-103
Roll over image to zoom zoom_in
- Weight: 300 Grams
- Product Type: Disk Micrometer
- Range (mm): 50 - 75 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹8983.34 (Incl. of all taxes)
₹7613+ ₹1370.34 GST (18%)
MRP ₹10150
SAVE 25%
1 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures "root tangent length" of spur gears and helical gears.
- Equipped with a Ratchet Stop for constant measuring force.
Package Content:
- Disc Micrometer
- Spanner
- Setting Standard
Dimensions Measurement:
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.DI.00035 |
|---|---|
| Product Type | Disk Micrometer |
| Model No | 123-103 |
| Range (mm) | 50 - 75 mm |
| Graduation | 0.01 mm |
| Max. Permissible Error JMPE (µm) | ±6µm |
| Anvil Dia (mm) | Ø20 mm |
| Measurable Module | 0.5 - 6 mm |
| Flatness | 1µm |
| Parallelism | 6µm |
| Measuring Force | 5 - 10 |
| Disk Size | 20 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish |
