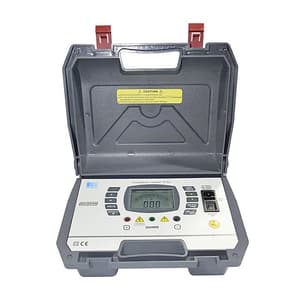

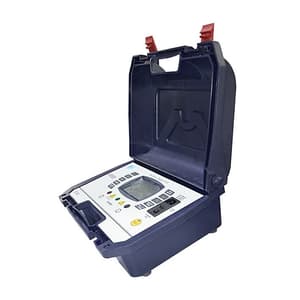

The Motwane IT-51 is a microprocessor based digital insulation tester designed for testing various types of electrical apparatus like transformers, switchgear, motors, generators, cables, and substation products. IT-51 has a digital display and an analog for arc display. It automatically performs IR Test and Polarization Index by selecting modes. IT-51 has a large LCD white backlight display that shows leakage current in scrolling form along with its IR value and PI value.

Insulation Resistance Test: The IR test is an acceptance test which is important for future comparative purposes. It helps to determine the suitability of the electrical apparatus for energizing or for the application of the high-potential (hi-pot) test. The IR test must attain successful completion to validate the factory warranty. It must be conducted immediately before energizing the electrical apparatus or  before commencing the high potential test.

Polarization Index Test: This is an extension of the IR test. In this test, two IR measurements are considered where the first reading is taken at 1 min and the second reading is taken at 10 mins. Then the ratio of the 10 min reading is compared to a 1 min reading which is then calculated to give the PI dielectric absorption value. The PI of winding-to-winding and winding-to-ground is determined. A PI value of below 2 is indicative of insulation deterioration and should be investigated further.

IT-51 is a lightweight instrument that can be easily moved around for electrical testing. It has rechargeable battery operation along with an AC mains provision for battery charging. It also has an ingress protection of IP54. The device has automatic capacitive loads discharged at the end of the test.

Features:

• Selectable test voltage from 250V, 500V, 1000V, 2500V, 5000V DC
• Insulation resistance measurement up to 1T Ohm
• Polarization index measurement facility
• Short circuit current < 1.4 mA. approx
• AC/DC voltage measurement up to 600V
• Two programmable timers from 0 Sec to 99 minutes
• Pleasant LCD Backlight
• Internal rechargeable battery
• Safety – IP54, CAT IV 600V, and CE conformity
• Robust ABS body with self-carrying handle for easy portability
• Automatic discharge for capacitive circuits
• Guard terminal to minimize the surface leakage

Application:

The Insulation Resistance test is an essential test that helps to check the condition of electrical insulation. The insulation resistance quality of an electrical system degrades with time and with environmental conditions such as temperature, humidity, moisture, and dust particles. This device is designed for routine and diagnostic testing like IR, PI of high voltage electrical apparatus including electrical rotating machinery, transformers, HV & LV switchgear, cables, insulators, etc.

Technical Data:

Insulation Resistance	Analog Display: 1 K Ohm to 1 T Ohm Digital Display: (3 Digit Display) 1 K Ohm to 1 TOhm
Insulation Accuracy	Up to 1G Ohm : All Ranges ±( 5 % + 2 digits)  Over 1 G Ohm : 5000V ± (5 % + 0.04% per G Ohm)   2500V ± (5 % + 0.08% per G Ohm)  1000V ± (5 % +0.2% per G Ohm)  500V ± (5 % + 0.4% per G Ohm)  250V ±( 5 % + 0.8% per G Ohm)
Polarization index (PI)	Display range: 0 – 99.9  Accuracy: ±(5 % of reading + 5 digits)  Resolution: 0.01

Safety & Standards:

• Safety in accordance with: EN 61010-1 : 2001
• EMC in accordance with EN 61326-1 : 2006
• Type Test in accordance with IS 11994
• CE & CAT IV 600V
• Safety of test lead in accordance with
• EN 61010-031 : 2002 +A1 : 2008

Package Content:

• 1x Digital Insulation Tester
• 1 Set Test leads 3 meter
• User manual
• Calibration sheet

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
