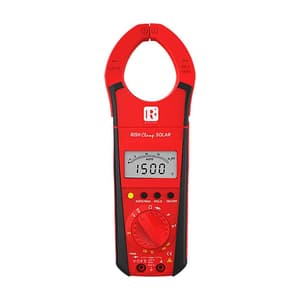

RISH Clamp SOLAR has DC voltage measurement upto 1500V DC, to measure inverter input voltage at solar power plants and current measurement upto 1500 A  AC/DC. It also measures AC Voltage(TRMS), Capacitance, Resistance & Continuity, Frequency & Duty cycle and temperature measurement.

Features:

• Measurement range upto 1500V DC to check solar inverter input voltage
• Extended current range upto 1500A AC (Trms)/DC for measurement at high current carrying applications
• Patented rotational jaw feature so as to keep display in front in every situation
• Patented trigger at back side so as to keep a safe distance from loads and offer operational efficiency
• Double mould casing to offer higher grip while holding the meter
• Consists of AC voltage upto 1000V (Trms), resistance, continuity, capacitance, frequency, diode, duty cycle, temperature, etc. functions
• Complies with CE, IP 50, CAT IV 600V protection

Applications:

• Large Jaw Opening: For Rish Clamp SOLAR Jaw opening of 51 mm for standard wire diameter of 50 mm.
• Narrow Body: Narrow housing for firm grip and easy to carry.
• High Accuracy for low current measurement: The clamp meter can measure accurately at not only the High currents but also Low current ranges.
• True Root Mean Square (TRMS) measurement: Clamp meter measures AC signal’s root-mean-square value  accurately irrespective of the shape of input waveform.
• Measurement on Variable Frequency Drives: The clamp meter can measure accurately on variable frequency drives (VFD) and UPS.
• User selectable Backlit (Optional): It is possible to conduct measurement using the clamp meter during night time in darkness with the help of Backlit. The back lit can be switched ON or OFF by pressing a single key.
• Temperature measurement: Temperatures from -200 to 800 °C using Pt 100 and Pt 1000 sensors.
• AUTO POWER OFF: In order to save the power of the Batteries, the clamp meter will automatically shut OFF if it detects no activity for 10 minutes.
• Analog Scale: Analog scale that updates at the rate 20 times/sec to observe fluctuations in input.
• CONTINOUS ON MODE: In this mode, AUTO POWER OFF is disabled
• DATA Hold Function: By pressing DATA HOLD button, reading on the display can be latched for Hands free operation.
• MIN & MAX Function: By pressing MIN/MAX button, the clamp meter will start recording latest Minimum and Maximum readings
• NULL ZERO Correction for Resistance: For Low ohm measurement, the lead resistance can be compensated by pressing the shift key (Yellow Key)
• NULL ZERO Correction for Capacitance: Null zero correction for capacitance. For nF range, stray capacitance can be compensated by shift key (Yellow Key)
• AUTO and MANUAL ranging modes: range with best resolution depending on the applied input. In MANUAL ranging mode range is user selectable using MAN Key
• Diode Measurement: For testing diode and transistors, diode measurement function is available.
• Protection from dust and water: IP20 for terminals as per IEC60529
• Applicable International Safety standards: 600 V CAT IV/1000V CAT III as per International Safety  standard IEC 61010-1- 2010

Reference Conditions for Accuracy:

• Reference temperature: 23°C ± 2°C
• Relative Humidity: 45%-55%RH
• Waveform of measured quantity: Sinusoidal
• Input frequency: 50 or 60 Hz ±2%
• Battery Voltage: 8V ± 0.1V

High Voltage Test:

• 6.7 kV AC, 50Hz for 1 minute between housing and input.
• 3.7 kV AC, 50Hz for 1 minute  between housing with jaws and input

Battery:

• Battery Voltage: 9V DC
• Battery Type: Manganese Dioxide Cell as per IEC6F22, alkaline manganese cell as per IEC 6LR 61
• Battery Life: Minimum 220 hours on Vdc, Adc, 80 hours on Vac, Aac.

Package Content:

• 1x Clamp Meter
• 1x Battery Set
• 1x Operating Instructions Manual
• 1x Leather carrying case
