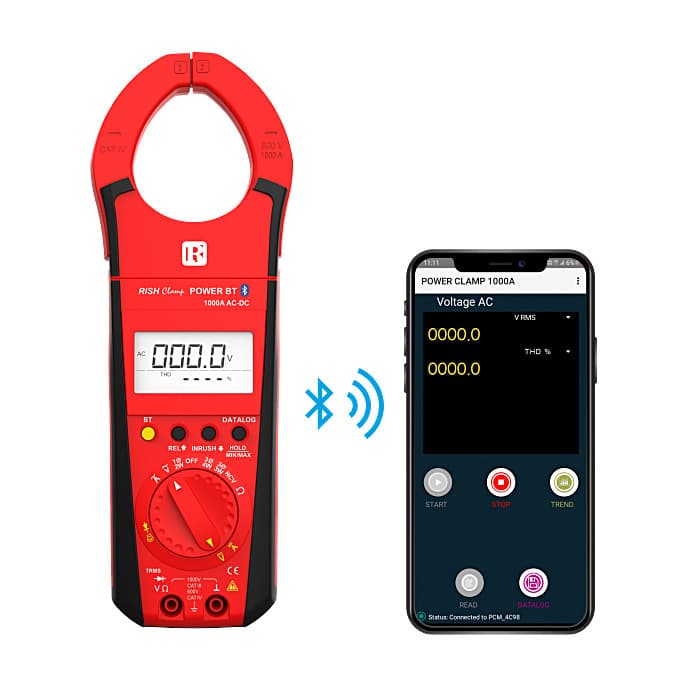

RISH Clamp POWER BT 1000A measures, calculates and displays power parameters of single phase or three phase systems. It features bluetooth communication with Android Mobile App. and software for PC for Data Logging, report Generation & Analysis.

Features:

• Measurement of active, reactive and apparent power for 1 phase, 3 phase 3 wire & 3 phase 4 wire
• Measure up to 49th harmonics along with THD
• Power factor measurement to know how much actual power is utilized
• Power view software facility and mobile android app facility for analysis
• Horse Power, Inrush Current, Energy (for single phase and balanced three  phase) measurement, Ampere hour measurement
• LPF(Low Pass Filter) function for accurate measurement on VFD drives

Applications:

• Large Jaw Opening: Jaw opening of 51 mm for standard wire diameter of 50 mm for 1000A respectively.
• Inrush Current Measurement: Clam pmeter will be triggered by inrush current >5A. Inrush current for 100msec is measured.
• DATA Hold Function: By pressing DATA HOLD button, reading on the display can be latched for Hands free operation.
• MIN, MAX Function: By pressing MIN/MAX button, the clamp meter will start recording latest Minimum and Maximum readings.
• Data logging: Clamp meter offers continuous data logging up to 2000 to 40000 readings(depending on active functions) with real time stamping. Log rate is adjustable from as low as 1 sec to as high as 1hr.
• Backlit: It is possible to conduct measurement using the clampmeter during poor light condition with the help of bright white light Backlit.
• Non Contact Voltage Detection: The clamp meter can detect the presence of AC Voltage between 100 to 1000 V 50hz/60Hz without any electrical connection and give acoustic signal as an indication.
• Three Phase Power Measurement: Clamp meter can measure power in 3 phase 3 wire or 3 phase 4 wire (Symmetric as well as Asymmetric) network without any manual calculation like other clampmeters.
• Dual Display: User friendly dual display shows the simultaneous parameters of measuring input quantity.
• LPF Mode: LPF mode is available for voltage and current for true measurement of VFD Application
• TRMS Measurement: In order to calculate true value of distorted waveform due to presence of high crest factor or harmonics, TRMS measurements is done forAC voltage and current.
• Continuous ON Mode: In this mode, AUTO POWER OFF is disabled.

Android Application:

• Class 2 Bluetooth which is integrated in the instrument achieves transmission ranges of up to 10m.
• Recommended Screen Size: 4.7” to 7" with resolution 1280 x 720p & above.
• Android Version: 4.0 & above required.
• Measured Parameter can be logged in Excel format in phone memory.
• Graphical Analysis of measured parameter is possible.
• Offline Data of  meter can be retrieved on phone through application.
• Virtual Display of meter can be observed on mobile application.

Power View software:

• Measured Parameter can be logged in Excel format on PC.
• Graphical Analysis of measured parameter is possible.
• Offline Data of  meter can be retrieved on PC through software.
• Virtually all parameter readings of meter can be observed on PC software.

Minimum Requirements:

• Pentium IV & Higher Processor
• Windows XP SP3, Windows Vista, Windows 7, Windows 8, Windows 10
• Bluetooth integrated or External USB Bluetooth.
• 800 x 600 or Higher Monitor Resolution.
• .NET Framework 4.0 and above.

Reference conditions for Accuracy:

• Reference temperature: 23°C ± 2°C
• Relative Humidity: 45%-55%RH
• Input frequency: 50 or 60 Hz
• Power Factor:  0.5Lagging..1..0.5Leading
• Battery Voltage: 8V ± 0.1V

Applicable Standards:

• EMC: Electro magnetic compatibility
• Emission: IEC 61326: 2020 ClassB
• Immunity: IEC 61326: 2020, IEC61000-4 (8 KV air discharge, 4 KV contact discharge), IEC 61000-4-3 - 3 V/m, IEC 61000-4-8 - 3 A/m

High Voltage Test:

• Between housing and input: 7.4 kV AC, 50Hz for 1 minute
• Between housing with jaws & input: 4.26 kV AC, 50Hz for 1 minute

Display:

• Display: 7 Segment
• Character Height: 11.5 mm (Main Display Character) / 7.2 mm (Sub Display Character)
• Over range indication: “OL” is displayed
• Polarity indication: “-” sign is displayed for negative values.

Battery:

• Battery Voltage: 9V DC
• Battery Type: Manganese Dioxide Cell as per IEC6F22, alkaline manganese cell as per IEC 6LR 61
• Battery Life: 10 Hrs Approx. (with Bluetooth) / 48 Hrs (without Bluetooth)

Package Content:

• Clamp Meter
• Probe Set
• Instruction Manual / Warranty Card
• Clamp Carring Case
• Test Certificate
• Battery
• Two crocodile clips
