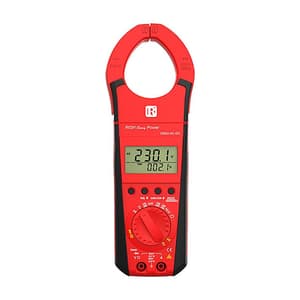

RISH Clamp POWER 1000A measures, calculate and displays important electrical parameters of single phase or three phase power system. It also features Resistance, continuity, diode and non contact voltage detection.

Features:

• RISH Clamp POWER 1000A is a highly innovative design for features those increases safety and comfort of user.
• Rotating clamp jaws facilitate the measurement at physically awkward positions, vertical bus bars, conductors placed at positions difficult to access.
• Clamp jaws can be opened or closed with the trigger placed at bottom side away from the jaws. This allows the user to place his/her hand at safer distance from live conductor. This greatly reduces exposure of human beings to electrical shocks.
• Location and design of trigger eliminates fatigues caused by single finger operation. It allows spreading the force required to open the jaws over more than one finger to ensure comfortable operation.
• Comfortable operation of push buttons and function selector switch, in adverse field conditions.
• Measures following parameters: Inrush/Peak Value Measurement, Active, Reactive, Apparent Power, Horse Power Measurement, kWh, Measure up to 49th Harmonics, Phase Angle, THD, DF, Power Factor, Crest Factor, LPF Mode for VFD Application
• Protection from dust and water: IP20 for terminals as per IEC60529
• Applicable International Safety standards: 600V CAT IV/1000V CAT III as per International Safety standard IEC 61010-1- 2010

Applications:

• Large Jaw Opening: Jaw opening of 51mm for standard wire diameter of 50mm for 1000A respectively.
• Inrush Current Measurement: Clam pmeter will be triggered by inrush current >5A. Inrush current for 100msec is measured.
• DATA Hold Function: By pressing DATA HOLD button, reading on the display can be latched for Hands free operation.
• MIN, MAX Function: By pressing MIN/MAX button, the clamp meter will start recording latest Minimum and Maximum readings.
• Backlit: It is possible to conduct measurement using the clampmeter during poor light condition with the help of bright white light Backlit.
• Non Contact Voltage Detection: The clamp meter can detect the presence of AC Voltage between 100 to 1000 V 50hz/60Hz without any electrical connection and give acoustic signal as an indication.
• Three Phase Power Measurement: Clamp meter can measure power in 3 phase 3 wire or 3 phase 4 wire (Symmetric as well as Asymmetric) network without any manual calculation like other clampmeters.
• Dual Display: User friendly dual display shows the simultaneous parameters of measuring input quantity.
• LPF Mode: LPF mode is available for voltage and current for true measurement of VFD Application
• TRMS Measurement: In order to calculate true value of distorted waveform due to presence of high crest factor or harmonics, TRMS measurements is done forAC voltage and current.
• Auto Power OFF: In order to save the power of the Batteries, the clamp meter will automatically shut OFF if it detects no activity for 10 minutes.
• Continuous ON Mode: In this mode, AUTO POWER OFF is disabled.
• Low Battery Indication: Double molded Cover for soft touch and firm grip of the Instrument

Reference conditions for Accuracy:

• Reference temperature: 23°C ± 2°C
• Relative Humidity: 45%-55%RH
• Input frequency: 50 or 60 Hz
• Power Factor: 0.5L....1....0.5C
• Battery Voltage: 8V ± 0.1V

Applicable Standards:

• EMC: Electro magnetic compatibility
• Emission: IEC 61326: 2012 ClassB
• Immunity: IEC 61326: 2012 / IEC61000-4-2 (8 KV air discharge, 4 KV contact discharge) / IEC 61000-4-3: 3 V/m

High Voltage Test:

• between housing and input: 7.4 kV AC, 50Hz for 1 minute
• between housing with jaws & input: 4.26 kV AC, 50Hz for 1 minute

Display:

• Display: 7 Segment
• Character Height: 11.5 mm (Main Display Character) / 7.2 mm (Sub Display Character)
• Over range indication: “OL” is displayed
• Polarity indication: “-” sign is displayed for negative values.

Battery:

• Battery Voltage: 9V DC
• Battery Type: Manganese Dioxide Cell as per IEC6F22, alkaline manganese cell as per IEC 6LR 61
• Consuption: 20 mA Avg. (Without Backlight)
• Battery Life: 48 Hrs Approx.

Package Content:

• Clamp Meter
• Probe Set
• Instruction Manual / Warranty Card
• Clamp Carring Case
• Test Certificate
• Battery
• Two crocodile clips
