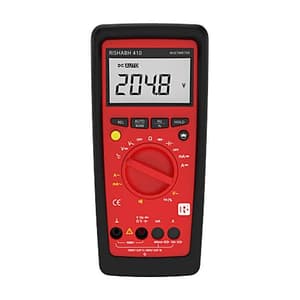

Rishabh 410 digital multimeter is suited for universal, general applications in the electrical and electronics fields for training and education. The other key features include 3999 count, dual display,  Data Hold and Peak Hold.

Features:

• Functionally Enhanced Dual Display
• Digital Display with 3¾ Digit, 4000 Count
• 0.5% basic DC accuracy
• Diode measurement and continuity testing
• Hold measurement .
• Relative measurement.
• Duty cycle (%) measurement
• Temperature measurement with K type Thermocouple
• Backlit Feature
• Measuring Category: CAT II (1000V) & CAT III (600V)

Applications:

• Hold: By pressing the HOLD key, the currently displayed measurement value can be held and “HOLD” is simultaneously displayed.
• Relative measurement (REL): By pressing the REL key, the zero correction is made & Relative value is measured. All functions can measure relative value except Hz/Duty
• Automatic/manual measuring range selection: The measurement functions are chosen with the rotary selector switch.The measuring range is automatically adjusted to the measurement value. The measuring range can also be manually selected with the AUTO/MAN button.Note : For Temperature ( 0C ) , Frequency ( Hz ) , Duty cycle ( % ), and Capacitance ( F ) measuring range is AUTO . No Manual range selection is possible.
• Diode and continuity testing: Testing of the polarity of diodes, as well as inspection for short-circuits and circuit interruptions can be carried out in this function. In addition to the display, resistance of less than approx 55 ± 25Ω are indicated with an acoustic signal.
• Overload warning: An acoustic signal occurs when measuring AC voltage>750V, DC Voltage>1000V, AC/DC mA current>400.0mA, AC/DC current>10.00A.
• Auto Power Off for longer battery life: The instrument is switched off automatically, if none of the operating elements have been activated for about 15 minutes.
• Protective cover for rough operating conditions: A protective rubber holster with a built-in stand protects the instrument against jolts and falls. It also secures the test probe for one-hand operation, and allows for winding of the measurement cable which provides protection during transport.
• Automatic terminal blocking system (ABS): The automatic terminal blocking system prevents incorrect connection of test lead and incorrect selection of measurement quantity, which provide safety to the user.

Reference conditions for Accuracy:

• Reference Temperature: 23°C ± 2K
• Relative Humidity: 45%...55% RH
• Waveform of measured quantity: Sinusoidal
• Input frequency: 50Hz
• Battery Voltage:  3V ± 0.1V

Applicable regulations and standards:

• EMC Immunity: IEC 61326-1:2012, Table A.1
• Emission: 8 KV atmosphere discharge & 4 KV contact discharge (IEC 61000-4-2) / 3 V/m (IEC 61000-4-3)
• Emission: Short-term measured value deviation may occur during electro-magnetic interference thus reducing the specified operating quality
• Safety: IEC 61010-1-2010
• IP for Water & Dust: IEC 60529
• Pollution degree: 2
• Installation Category: 600V CAT3 / 1000V CAT2
• High Voltage Test: 3.5 kV (IEC 61010-1-2010)

Power Supply:

• Battery: 2 X 1.5V Cells
• Battery Type: Alkaline manganese Dioxide cells.
• Battery Life: Approx. 600 hours. (Alkaline manganese dry cell)

Package Content:

• 1x Digital Multimeter
• 1x Cable set
• 1x Copy Operating Instructions
• 1x Protective Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
