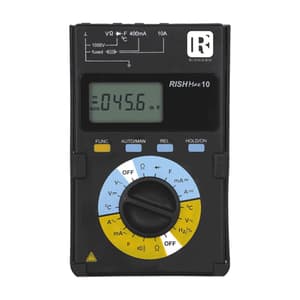

RISH Max-10 digital multimeters are suited for universal, general applications in the electrical and electronics fields, as well as in radio and television service, training and education. They are of especially flat design, and thus fit into any bag. The protective cover, which is provided as standard equipment, can be opened at an angle for convenient reading from the workbench, and provides for easy transport.

Features:

• Hold: By pressing the HOLD/ON key, the currently displayed measurement value can be held and “HOLD” is simultaneously displayed.
• Relative measurement (REL): By pressing the REL key, the zero correction is made and Relative Value is measured. All functions can measure Relative Value 0 except Hz/Duty, Diode, Continuity and C functions.
• Automatic/manual measuring range selection: The measurement function are chosen with the rotary selector switch. The measuring range is automatically adjusted to the measurement value. The measuring range can also be manually selected with the AUTO/MAN button. 0 Note: For Temperature (C ), Frequency (Hz), Duty cycle (%) and Capacitance (F) measuring range is AUTO. No Manual range selection is possible.
• Temperature Measurement: Rish Max - 10 allows you to measure temperature with “K” type 0 Thermocouple (NiCr - Ni) sensor in the range from 0C0 to +1300 C.
• Diode and continuity testing: This provides for the testing of the polarity of diodes, as well as inspection for short -circuits and circuit interruptions. In addition to the display, resistance of less than 100 (approx.) are indicated with an acoustic signal.
• Overload warning: An acoustic signal occurs when measuring AC voltage>750V, DC Voltage>1000V, AC/DC mA current>400.0mA, AC/DC current>10.00A.
• Energy saving circuit: The instrument is switched off automatically, if none of the operating elements have been activated for about 15 minutes.
• Protective cover for rough operating conditions: A protective cover of ABS with a built-in stand protects the instrument against jolts and falls. It also secures the test probe for one-hand operation, and allows for winding of the measurement cable which provides protection during transport.
• Calibration: Rish Max -10 multimeters are calibrated using precision calibrators having accuracy better than at least 5 to 10 times depends upon the functions and ranges. These sources are calibrated at regular intervals.
• Theft protection: Company name and name of the user can be entered into the field next to the display with an indelible etching needle for identification of the owner. (Direct and alternating voltages from 100V ... 1000V, Direct and alternating currents from 10 A ... 10.00A, Resistances from 100m ... 40.00M with zero correction, Capacitance from 1pF ... 200.00 F with zero correction, Frequencies from 10.00Hz ... 500.0kHz, Diode measurement and continuity testing, Hold measurement, Relative measurement, Duty cycle (%) measurement & Temperature measurement with K type Thermocouple)
• Display: LCD display field (50 mm x 30 mm) with digital display, and with display of measurement unit, type of current and various special functions.
• Fuse for ranges up to 400 mA: 1.6 A / 1000V; 6.3 mm x 32 mm
• Fuse for 10A range: 16 A / 600V; 6.3 mm x 32 mm

Power Supply:

• Battery: 2 numbers of 1.5V mignon cell Zinc- carbon cell as per IEC R6 Alkaline manganese dry cell as per IEC LR 6
• Service life: Approx. 300 hours (Zinc-carbon cell), Appox. 600 hrs (Alkaline manganese dry cell)
• Battery test: Automatic display of „ ” symbol when battery voltage falls (below following value: approx. 2.4 V)

Package Contents:

• 1x Digital Multimeter
• 1x Cable set
• 1x Copy Operating Instructions
• 1x Protective Case with tilt stand
