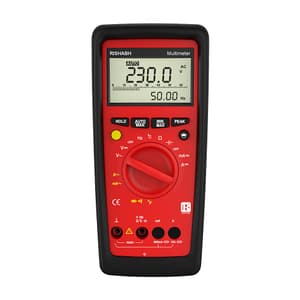

RISHABH 612 is a rugged, dual display, 6600 count, portable, universal application mutimeter with higher current measuring range of up to 660A( with Clamp). The other key features include Data Hold and Peak Hold.

Features:

• Diode measurement and continuity testing
• Hold measurement .
• Relative measurement.
• Duty cycle (%) measurement
• Temperature measurement with K type Thermocouple
• Peak value measurement.

Applications:

• Dual Display
• Peak Hold
• Min/Max Function
• Temperature Measurement
• Indication of Negative values on the analog scale
• Analog Scale
• Protection from Dust & Water
• Applicable International Safety Standards
• Auto Power OFF
• Hold
• Relative Measurement (REL)
• Automatic Blocking System
• Auto & Manual Ranging Modes
• Diode & Continuity Testing
• Backlit
• Continuous ON Mode

Reference conditions for Accuracy:

• Reference Temperature: 23°C ± 2K
• Relative Humidity: 45%...55% RH
• Waveform of measured quantity: Sinusoidal
• Input frequency: 50 or 60Hz ±2%
• Battery Voltage:  3V ± 0.1V

Applicable regulations and standards:

• EMC Immunity:  IEC 61326-1:2012, Table A.1
• Immunity: 8 KV atmosphere discharge & 4 KV contact discharge (IEC 61000-4-2) / 3 V/m (IEC 61000-4-3)
• Safety: IEC 61010-1-2010
• IP for Water & Dust: IEC 60529
• Pollution degree: 2
• Installation Category: 600V CAT lV / 1000V CAT lll
• High Voltage Test: 6.7 kV (IEC 61010-1-2010)
• Short-term measured value deviation may occur during electro-magnetic interference thus reducing the specified operating quality

Power Supply:

• Battery: 2 X 1.5V Cells
• Battery Type: Alkaline manganese Dioxide cells.
• Battery Life: 600 hrs for VDC & ADC / 300 hrs for VAD & AAC

Package Content:

• 1x Digital Multimeter
• 1x Cable set
• 1x Copy Operating Instructions
• 1x Protective Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
