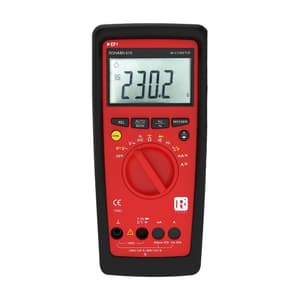

Rishabh 610 digital multimeter is suited for universal, general applications in the electrical and electronics fields, as well as in radio and television service, training and education. It is of especially pocket size design, and thus fit into pocket. The protective cover, which is provided as standard equipment, can beopened at an angle for convenient reading from the workbench.

Features:

• Diode measurement and continuity testing
• Hold measurement .
• Relative measurement
• Duty cycle (%) measurement
• Temperature measurement with K type Thermocouple
• Backlit Facility
• NCV (Non Contact Voltage Detection)
• Auto Power Off

Applications:

• Hold: By pressing the HOLD key, the currently displayed measurement value can be held and “HOLD” is simultaneously displayed.
• Relative measurement (REL): By pressing the REL key, the zero correction is made & Relative value is measured. All functions can measure relative value except Hz/Duty
• Automatic/manual measuring range selection: The measurement functions are chosen with the rotary selector switch.The measuring range is automatically adjusted to the measurement value. The measuring range can also be manually selected with the AUTO/MAN button. Note: For Temperature (0C), Frequency (Hz), Duty cycle (%), and Capacitance (F) measuring range is AUTO. No Manual range selection is possible.
• Hz/Duty: The instrument can measure Linear frequency (Hz) and duty cycle (%) of the AC Voltage by pressing Hz/Duty key in Vac,mVac,mAac and Aac.
• Temperature Measurement: RISHABH 610 allows you to measure temperature with “ K ” type 0 Thermocouple (Ni Cr-Ni) sensor in the range from -200 C to +1200 C.
• Diode and continuity testing: This provides for the testing of the polarity of diodes, as well as inspection for short-circuits and circuit interruptions. In addition to the display, resistance of less than approx 50Ω are indicated with an acoustic signal
• Overload warning: An acoustic signal occurs when measuring AC voltage>1000V, DC Voltage>1000V, AC/DC current>6A.
• Energy saving circuit (Auto Power Off): The instrument is switched off automatically, if none of the operating elements have been activated for about 15 minutes.
• Protective cover for rough operating conditions: A protective cover of Rubber Holster with a built-in stand protects the instrument against jolts and falls. It also secures the test probe for onehand operation, and allows for winding of the measurement cable which provides protection during transport.
• Automatic blocking socket (ABS): The automatic terminal blocking system prevents incorrect connection of test lead and incorrect selection of measurement quantity, which provide safety to the user.
• Backlit: The RISHABH 610 multimeter provides facility of measurement in poor light condition by pressing backlit key.
• Calibration: RISHABH 610 multimeters are calibrated using precision calibrators having accuracy better than at least 5 to 10 times depends upon the functions and ranges. These sources are calibrated at regular intervals.
• NCV (Non Contact Voltage): 0 Presence of Hazardous Voltage > 50V 50/60Hz.This is very useful while performing measurments in the circuit which takes longer times to discharge its capacitor.Easy/Quickly test Live power.
• Others: Separate compartment for batteries which makes battery replacement easy and faster. Also it has provision of mounting clip for hands free operation in awkward situation.

Reference conditions for Accuracy:

• Reference Temperature: 23°C ± 2K
• Relative Humidity: 45%...55% RH
• Waveform of measured quantity: Sinusoidal
• Input frequency: 50Hz
• Battery Voltage:  3V ± 0.1V

Applicable regulations and standards:

• EMC Immunity:  IEC 61326-1:2020, Table A.1
• Emission: 8 KV atmosphere discharge & 4 KV contact discharge (IEC 61000-4-2) / 3 V/m (IEC 61000-4-3)
• Emission: Short-term measured value deviation may occur during electro-magnetic interference thus reducing the specified operating quality
• Safety: IEC 61010-1-2010, IEC 61010-2-33, IEC 61010-031
• IP for Water & Dust: IEC 60529
• Pollution degree: 2
• Installation Category: 600V CAT3 / 1000V CAT2
• High Voltage Test: 3.5 kV (IEC 61010-1-2010)

Power Supply:

• Battery: 2 X 1.5V AA Cells
• Battery Type: Alkaline manganese Dioxide cells.

Package Content:

• 1x Digital Multimeter
• 1x Cable set
• 1x Copy Operating Instructions
• 1x Protective Case
