The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings. It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand.

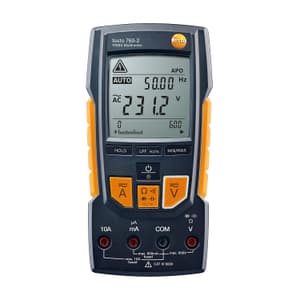

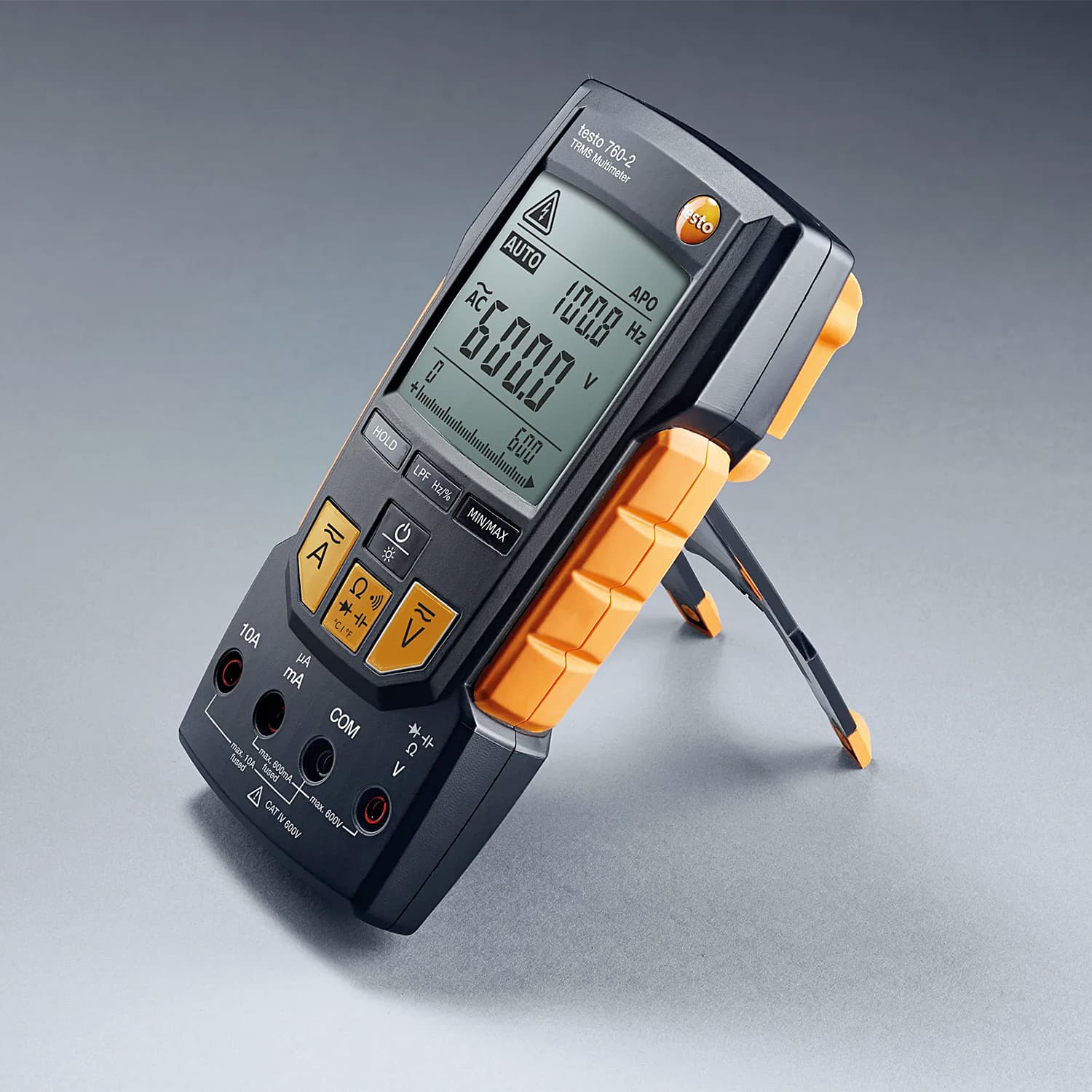

The large, illuminated display shows the readings clearly. The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors. Temperatures can also be measured with this multimeter in addition to electrical parameters.

Features:

• Easy, reliable work thanks to automatic measurement parameter detection
• Current measurement in the µA range
• True root mean square measurement - TRMS
• Low-pass filter for accurate measurement results on frequency converter controlled motors
• Instrument Measurement Functions: Diode test, Continuity testing, Current probe measurement with adapter, Display lighting, Hold, MinMax, Temperature measurement with adapter, True RMS, Low-pass filter, Duty cycle measurement, Autom. measurement parameter detection, μA current measuring range

Technical Data:

	Measuring range	Resolution	Accuracy
Temperature - TC Type K (NiCr-Ni)	-20 to +500°C	0.2°C	±1°C (0 to +100°C)
DC Voltage	0.1 mV to 600 V	max. 1.0 μA	±(0.8% of mv + 3 Digits)
AC Voltage	0.1 mV to 600 V	max. 1.0 mV	± (1.0% of mv + 3 Digits)
DC Current	0.1 μA to 10 A	max. 0.1 µA	± (1.5 % of mv + 5 Digits)
AC Current	0.1 μA to 10 A	max. 0.1 µA	± (1.5 % of mv + 5 Digits)
Resistance	0.01 Ohm to 60.00 MOhm	max. 0.01 Ohm	± (1.5 % of mv + 3 Digits)
Capacitance	0.001 nF to 60.00 mF	max. 0.001 nF	max. ± (1.5 % of mv + 5 Digits)
Frequency	0.1 Hz to 60 MHz	max. 0.1 Hz	± (0.1 % of mv + 1 Digit)

Package Content:

• 1x TRMS Multimeter
• 3x AAA Micro Batteries

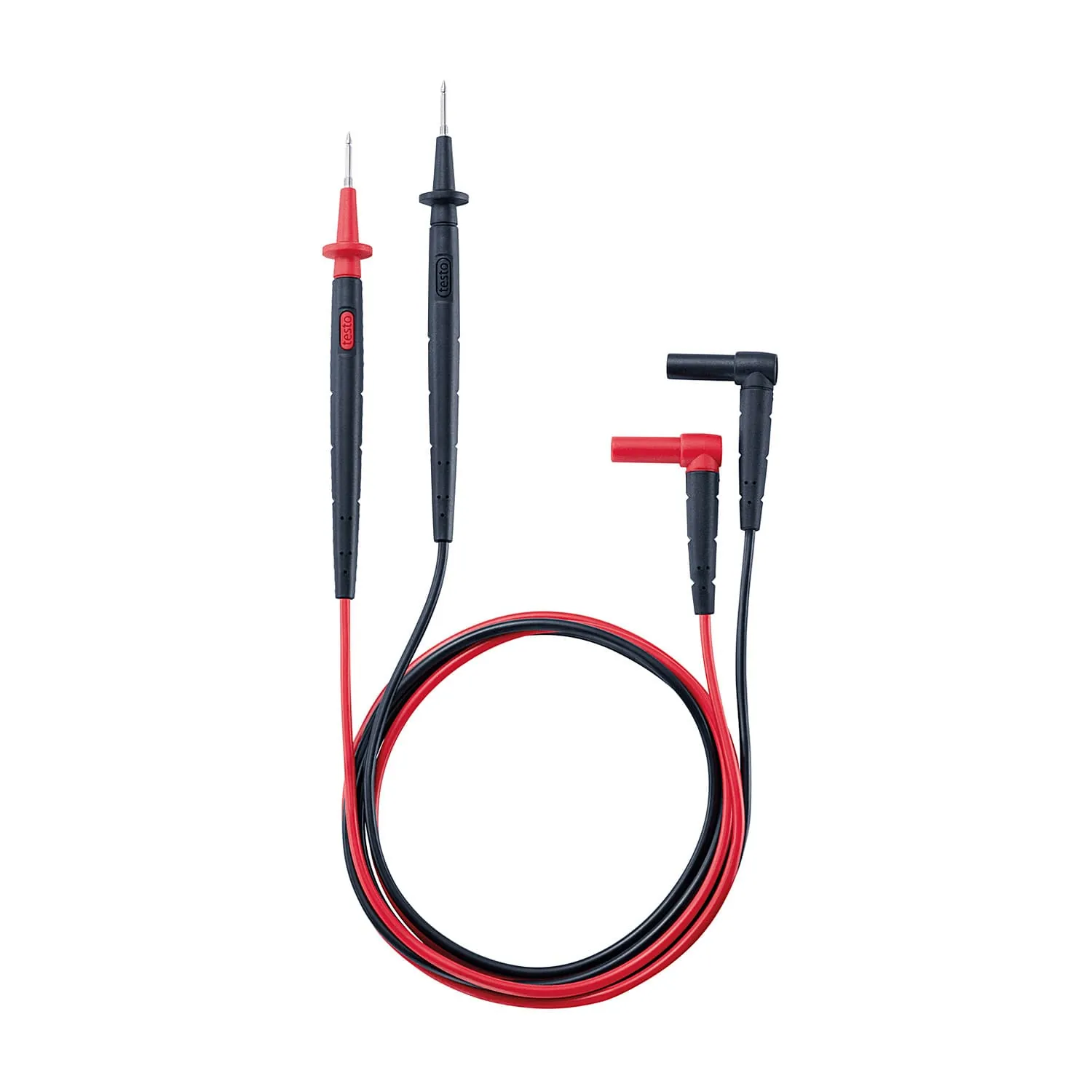

• 1 Set of measuring cables (0590 0010)
• 1 x Adapter for thermocouples type K
• Instruction manual
