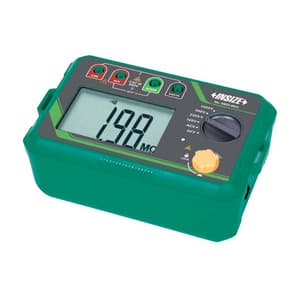

Insize 30 - 750V AC Voltage Insulation Resistance Tester, 9452-IR21
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 600 kg
- Range (AC Voltage): 30 - 750V (50/60Hz)
- Resolution: 1V (AC Voltage)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,931 (Incl. of all taxes)
₹5,874 + ₹1,057 GST (18%)
MRP was MRP ₹8,392
Save 30%
5 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Continuous measurement: press and rotate the test button to measure continuously
- Alarm function: the tester alerts with buzzer when the insulation resistance is less than 4M ohms
- Over-range indication
- Data hold
- High-voltage output alert
- Auto backlight display
- Low battery indication
- Auto power off
- Open-circuit voltage: DC voltage 0~+10%
- Data hold and backlight display function not applicable for AC voltage measurement
Insulation Resistance:
| Test Voltage | 100V / 250V / 500V / 1000V |
| Range | 100M ohm / 500M ohm / 2.00G ohm / 5.00G ohm |
| Resolution |
|
| Accuracy |
|
What's Included In This Package:
- 1x Insulation Resistance Tester

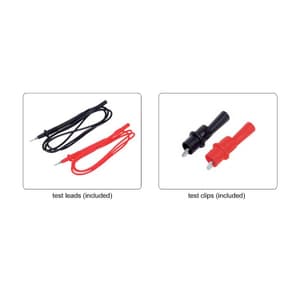

- 2x Test Lead
- 2x Test Clip
- 6x AA Batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (AC Voltage) | 30 - 750V (50/60Hz) |
|---|---|
| Resolution | 1V (AC Voltage) |
| Accuracy (AC Voltage) | ±(2%+3d) |
| Short-Circuit Current | <2.0mA |
| Operation Environment | 0 - 35°C (Temperature) / <75%RH (Humidity) |
| Power Supply | 6x 1.5V AA Batteries |
| Dimension (mm) | 184 x 115 x 75 mm |
