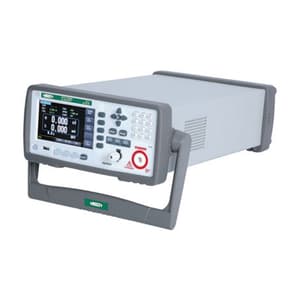

Insize AC/DC Withstanding Voltage Insulation Tester, 9453-ST01

Shop all Insize

SKU: ME.EL.IN.00109

Model: 9453-ST01

Roll over the image to zoom in

Visit Insize Store

Key Features

  • Product Type: Insulation Testers
  • Weight: 9.2 kg
  • Arc Detection: 1 - 9 Level (AC/DC), Factory default is 5
  • Power Supply: 110V/220V (AC) / 50Hz/60Hz
See all product information

ToolBuy Benefits

₹1,47,076 (Incl. of all taxes)

₹1,24,641 + ₹22,435 GST (18%)

MRP was MRP ₹1,78,058

Save 30%

5 Business Days

1

–

Download Product LeafletNot available
Download Insize CatalogueNot available

Highlights

  • 5-inch LCD touchscreen display
  • Arc detection function
  • Electric shock protection function
  • 10 test files can be stored, each file can be edited with 16 test steps.
  • Standard communication interface to meet automation test requirements.
  • Applications: home appliance, transformer, electrical device, component.


Technical Data:

Withstand Voltage Test Output Voltage Range AC: 5kV / DC: 6kV
Resolution 0.001kV
Accuracy ±(2%+5d)
Test Current Range AC: 10mA / DC: 5mA
Resolution AC: 0.001mA ~ 0.01mA / DC: 0.1µA ~ 0.01mA
Accuracy ±(2%+5d)
Insulation Resistance Test Output Voltage Range 1kV
Resolution 0.001kV
Accuracy ±(1%+2d)
Test Resistance Range 10G ohm
Resolution 0.001M ohm - 0.01G ohm
Accuracy
  • output voltage>500V, test resistance 1M ohm-1G ohm: ±(5%+5d);
  • output voltage>500V, test resistance 1G ohm -10G ohm: ±(10%+5d);
  • output voltage <500V, test resistance 0.1M ohm - 1G ohm: ±(10%+5d)
Time
  • Voltage rising time: 0.1s ~ 999.9s;
  • Voltage falling time: 0.1s ~ 999.9s;
  • Voltage testing time: 0.1s ~ 999.9s

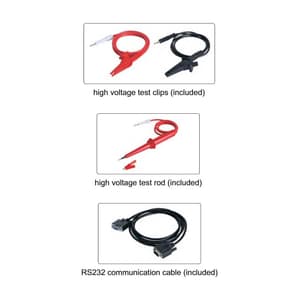

What's Included In This Package:

  • 1x Insulation Tester
  • 2x High Voltage Test Clip
  • 1x High Voltage Test Rod
  • 1x RS232 Communication Cable

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Insize AC/DC Withstanding Voltage Insulation Tester, 9453-ST01
Discharge FunctionDischarge after Testing
Arc Detection1 - 9 Level (AC/DC), Factory default is 5
InterfaceHandler Interface / RS232C Interface / USB Interface
Operation Environment10 - 40°C (Temperature) / <70% (Relative Humidity)
Power Supply110V/220V (AC) / 50Hz/60Hz
Dimensions (L x W x H)450 x 270 x 130 mm
