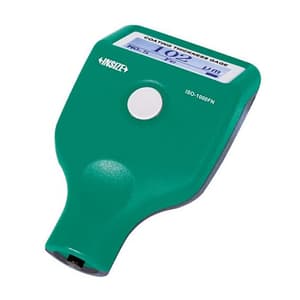

Insize Coating Thickness Gage (Basic Type), ISO-1000FN
Roll over image to zoom zoom_in
- Weight: 79 Grams
- Product Type: Coating Thickness Meter
- Measuring range: 0-2000µm
- Calibration mode: zero calibration
- Unit: µm / mil
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹16897.6 (Incl. of all taxes)
₹14320+ ₹2577.6 GST (18%)
MRP ₹22031
SAVE 35%
3 Business Days
1 Pcs
90303900
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Probe is suitable for both magnetic and non-magnetic metal substrates
- Can measure the thickness of the non-magnetic coating and non-metallic coating on magnetic metal substrate Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel) Coating: zinc, aluminum, copper, chrome, tin, plastic, powder, paint (not for a nickel)
- Can measure the thickness of the non-conductive coating on non-magnetic metal substrate Substrate: copper, aluminum, zinc, non-magnetic stainless steel Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating)
- 3 measuring modes: Fe, NFe, Fe/NFe
- Store 9 measuring records
- Small and portable, easy for operation

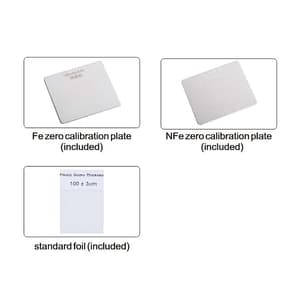

Standard Delivery:
| Main unit | 1 pc |
| Fe zero calibration plate | 1 pc |
| NFe zero calibration plate | 1 pc |
| Standard foil (100μm) | 1 pc |
| 1.5V AA battery | 2 pcs |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.NO.CO.00003 |
|---|---|
| Product Type | Coating Thickness Meter |
| Model No | ISO-1000FN |
| Measuring range | 0-2000µm |
| Resolution (0.1µm) | Range<100µm |
| Resolution (1µm) | 100µm=range<1000µm |
| Resolution (0.01mm) | 1mm=range=2mm |
| Accuracy | +(2µm+3%L) L is measuring thickness in um |
| Measure interval | 0.5s |
| Calibration mode | zero calibration |
| Measuring mode | Fe, NFe, Fe/NFe |
| Minimum substrate thickness (Fe) | 0.2 mm |
| Minimum substrate thickness (NFe) | 0.05 mm |
| Minimum measuring area | Ø25mm |
| Minimum radius of curvature workpieces (Convex surface) | 5mm |
| Minimum radius of curvature workpieces (Concave surface) | 25mm |
| Unit | µm / mil |
| Power supply | 2x1.5V AA batteries |
| Dimension | 101 x 62 x 28mm |
