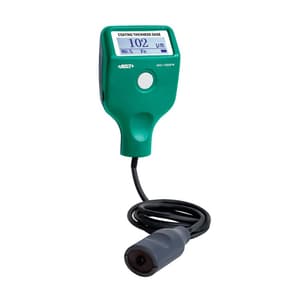

Insize Coating Thickness Gage (Basic Type), ISO-1200FN
Roll over the image to zoom in
Key Features
- Product Type: Coating Thickness Meter
- Weight: 114 g
- Measuring range: 0-2000μm
- Calibration mode: zero calibration
- Unit: μm / mil
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,170 (Incl. of all taxes)
₹20,483 + ₹3,687 GST (18%)
MRP was MRP ₹29,262
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Probe is suitable for both magnetic and non-magnetic metal substrates
- Can measure the thickness of the non-magnetic coating and non-metallic coating on magnetic metal substrate Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel) Coating: zinc, aluminum, copper, chrome, tin, plastic, powder, paint (not for a nickel)
- Can measure the thickness of the non-conductive coating on non-magnetic metal substrate Substrate: copper, aluminum, zinc, non-magnetic stainless steel Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating)
- 3 measuring modes: Fe, NFe, Fe/NFe
- Store 9 measuring records
- Small and portable, easy for operation
Standard Delivery:
| Main unit | 1 pc |

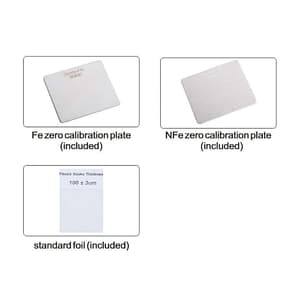

| Fe zero calibration plate | 1 pc |
| NFe zero calibration plate | 1 pc |
| Standard foil (100μm) | 1 pc |
| 1.5V AA battery | 2 pcs |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring range | 0-2000μm |
|---|---|
| Resolution (0.1μm) | Range<100μm |
| Resolution (1μm) | 100μm=range<1000μm |
| Resolution (0.01mm) | 1mm=range=2mm |
| Accuracy | +(2μm+3%L) L is measuring thickness in um |
| Measure interval | 0.5s |
| Calibration mode | zero calibration |
| Measuring mode | Fe, NFe, Fe/NFe |
| Minimum substrate thickness (Fe) | 0.2 mm |
| Minimum substrate thickness (NFe) | 0.05 mm |
| Minimum measuring area | Ø25mm |
| Minimum radius of curvature workpieces (Convex surface) | 5mm |
| Minimum radius of curvature workpieces (Concave surface) | 25mm |
| Unit | μm / mil |
| Power supply | 2x1.5V AA batteries |
| Dimension | 101 x 62 x 28mm |
| Probe dimension | 71 x 26 22mm |
