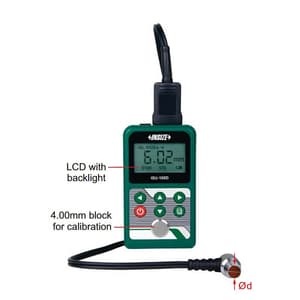

Insize Ultrasonic Thickness Gauge (Basic Type), ISU-100D
Roll over the image to zoom in
Key Features
- Product Type: Coating Thickness Meter
- Weight: 200 g
- Measuring range: 0.8~300mm
- Transducer Frequency: 5MHz
- Transducer Diameter (d): 10.8mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹35,124 (Incl. of all taxes)
₹29,766 + ₹5,358 GST (18%)
MRP was MRP ₹50,451
Save 41%
3 Business Days
1
90318000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights

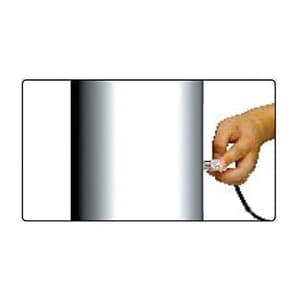

- Measure the thickness from one side of the object suitable for pipes tanks etc.
- Applicable material metal plastic glass nylon resin ceramic ice.
Standard Delivery:
| Main unit | 1 Pc |
| Transducer | 1 Pc |
| Couplant | 1 Bottle |
| Battery (AAA) | 2 Pcs |
Specification:
- Accuracy:
- +/- 0.04mm (range < 10mm)
- +/- (0.04+H/100)mm (range 10~100mm)
- +/-H/33mm (range ≥ 100mm)
- H is the thickness to be measured in mm.
Attention:
- Not Suitable For Casting Workpieces.
Specifications
| Measuring range | 0.8~300mm |
|---|---|
| Resolution | 0.01mm (range<100mm 0.1mm (range=100mm) |
| Transducer Frequency | 5MHz |
| Transducer Diameter (d) | 10.8mm |
| Minimum size of pipe for measurement | 20x1.2mm (diameter x wall thickness) |
| Applicable temperature | <60°C |
| Velocity | 1000-9999m/s |
| Power supply | 2xAAA batteries |
| Dimensions | 114x64x28mm |
| Includes | Inspection Certificate |
