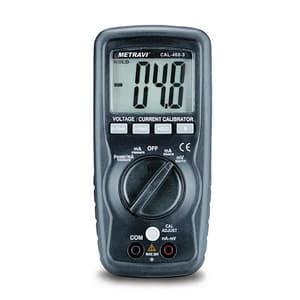

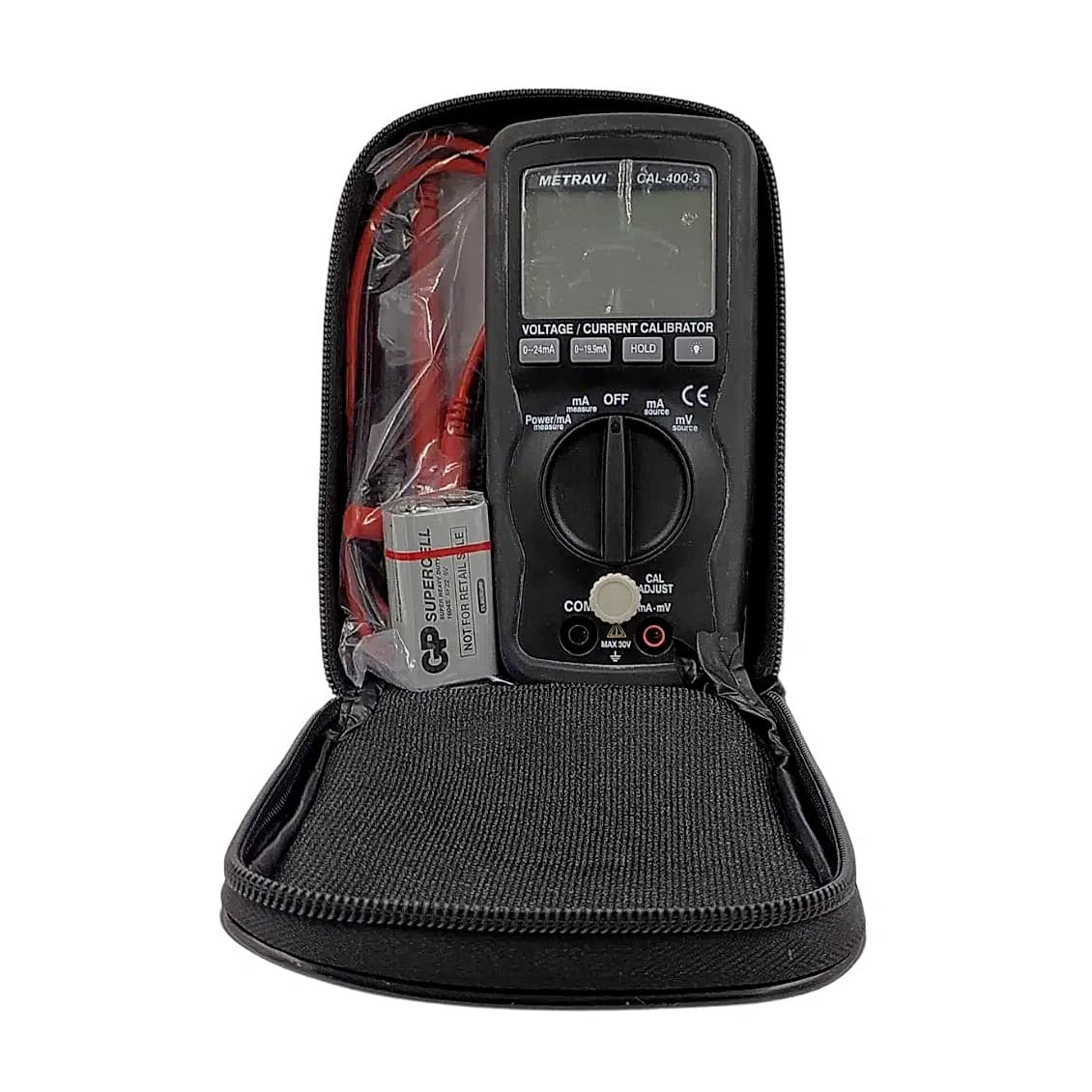

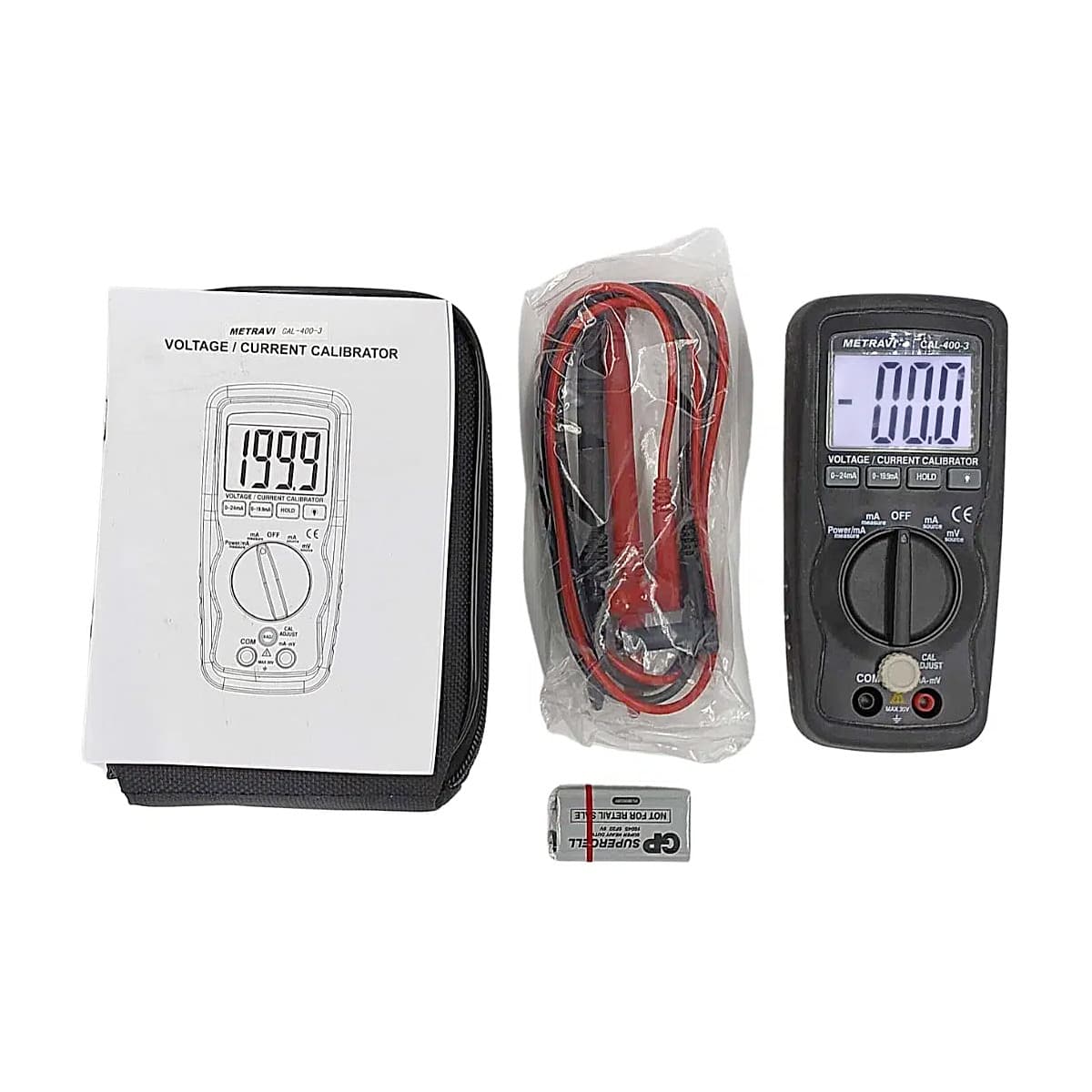

Hand Held, 3-1/2 Digits, Battery Operated, 0 – 19.99/24mA, -199.9mV to 199.9mV source and current & power measurement.

Four function provide the quality and accuracy of Hand Held Calibrator

• Precision current source,
• Measurement of a current signal,
• Power and measurement of two wire loop,
• Precision DC mV source.

Features:

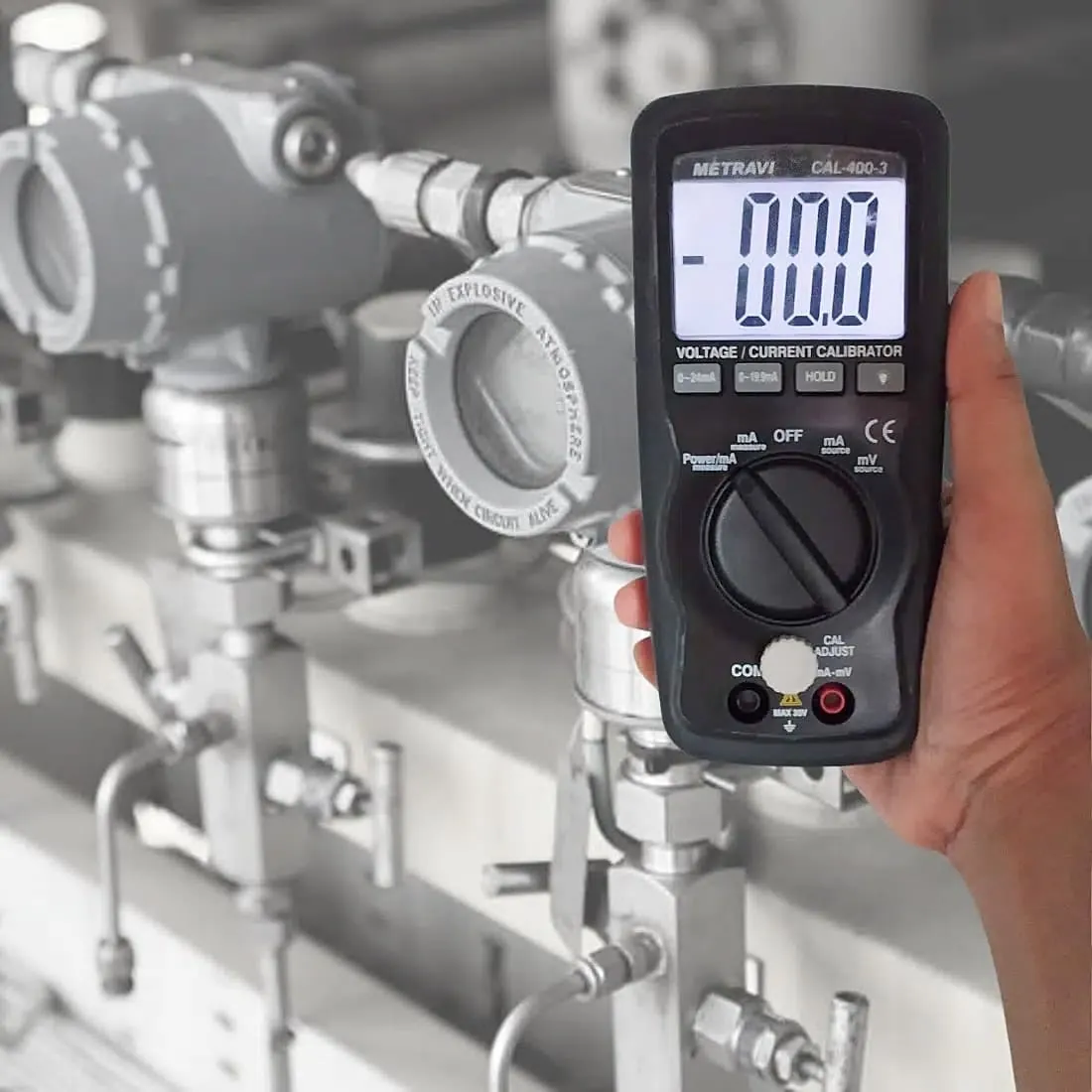

• Portable instrument for Calibrating process devices and measuring Process signals
• The Instrument Powers or measures a two wire Current loop
• Adjustable 0-24mA current source.
• Adjustable -199.9mV to +199.9mV DCV source.
• Current calibrator drives loads up to 500 ohms.
• The instrument powers or measures a two-wire current loop.
• Display : LCD display max display counts 1999
• Over input Indication of "1"
• Operating environment: 0°C to 50°C (32° to 122°). at < 70% relative humidity.
• Power Supply: DC9V,NEDA1604/IEC6F22 battery or equivalent. Alkaline type or heavy duty type
• Power Consumption: Current measurement: Approx. DC 12mA Power and current measurement: Approx. DC 33mA Current source(under 10 mA signal output): Approx. DC 33mA DC mV source(under 100mV signal output): Approx. DC 12mA

Technical Specifications:

Electrical (23+ 5)°C / Current source

Range	Display Resolution	Accuracy
0-19.99mA	0.01mA	± (0.25%FS+1d)
0-24mA	0.1mA	± (0.5%FS+1d)



• Output 0 to 24mA current for loads up to 500 ohms.
• Output >20mA current for loads up to 400 ohms.
• FS: full scale

Current Measurement

Range	Display Resolution	Accuracy
0-19.99mA	0.01mA	± (0.25%FS+1d)
0-24mA	0.1mA	± (0.5%FS+1d)

Power & Current Measurement of Two Wire Loop

Range	Display Resolution	Accuracy
0-19.99mA	0.01mA	± (0.25%FS+1d)
0-24mA	0.1mA	± (0.5%FS+1d)



• Provides power DC 12V ±2V to the loop and measures current.*
• FS: full scale

DC mV Source

Range	Display Resolution	Accuracy
-199.9mV to +199.9mV	0.01mA	±(0.25%FS+1d)



• Output measured load impedance should >1K ohms. *FS.full scale
• Remark: The above specifications are tested under the environment RF Field Strength less than 3V/M & frequency less than the 30 MHz only.
