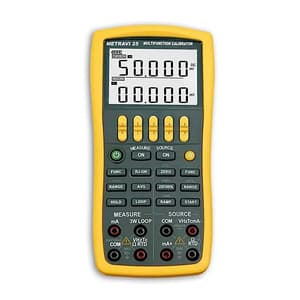

Metravi 50000 Counts 0.2% Universal Calibrator, 25
Roll over image to zoom zoom_in
- Product Type: Process Calibrators
- DC Voltage Resolution: 1µV
- DC Voltage Accuracy: ±0.02%
- DC Current Resolution: 1µA
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹291121.34 (Incl. of all taxes)
₹246713+ ₹44408.34 GST (18%)
MRP ₹362813
SAVE 32%
5 Business Days
1 Pcs
9031
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
50,000 Counts, 0.2% Universal Calibrator for DC Voltage, Current, Resistance, Frequency, all thermocouples and thermo-resistance and for pressure. This multifunction process calibrator (the calibrator in the following) is a handheld, battery-operated instrument that measures and sources electrical and physical parameters.
These specifications assume:
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Universal Calibrator for DC Voltage, Current, Resistance, Frequency all Thermocouples and Thermo-Resistance and for Pressure
- Measures and Sources can be done at the same time
- Confirms to IEC 61010
- Display : 50000 Counts Dual, Backlit Display
- Data Hold Function to freeze the displayed data
Measures:
- DC Voltage : 0 – 50mV/500mV/5V/50V
- Accuracy : ±0.02%
- DC Current : 0 – 50mA
- Accuracy : ±0.02%
- Resistance : 0 – 500Ω / 5KΩ
- Accuracy : ±0.02%
- Frequency : 0 – 500Hz / 5KHz / 50KHz
- Accuracy : ± 2 digits
- R Type Thermocouple : 0°C to 1767°C
- Accuracy : ±1.5°C
- S Type Thermocouple : 0°C to 1767°C
- Accuracy : ±1.5°C
- K Type Thermocouple : -100.0°C to 1372.0°C
- Accuracy : ±0.8°C
- E Type Thermocouple : -50.0°C to 1000.0°C
- Accuracy : ±0.9°C
- J Type Thermocouple : -60.0°C to 1200.0°C
- Accuracy : ±0.7°C
- T Type Thermocouple : -100.0°C to 400.0°C
- Accuracy : ±0.7°C
- N Type Thermocouple : -200.0°C to 1300.0°C
- Accuracy : ±0.9°C
- B Type Thermocouple : 600.0°C to 1820.0°C
- Accuracy : ±1.4°C
- PT 100 – 385 : -200.0°C to 800.0°C
- Accuracy : ±0.5°C
- PT 1000-385 : -200.0°C to 630.0°C
- Accuracy : ±0.3°C
- PT 200-385 : -200.0°C to 630.0°C
- Accuracy : ±0.8°C
- PT 500-385 : -200.0°C to 630.0°C
- Accuracy : ±0.4°C
- Cu10 Sensor : -100.0°C to 260.0°C
- Accuracy : ±1.8°C
- Cu50 sensor : -50.0°C to 150.0°C
- Accuracy : ±0.7°C
Source:
- DC Voltage : 0 – 100m/1V/10V
- Accuracy : ±0.02%
- DC Current : 0 – 20mA
- Accuracy : ±0.02%
- Resistance : 0 – 400Ω/ 4KΩ / 40KΩ
- Accuracy : ±0.02%
- Frequency : 0 – 100Hz/1KHz/10KHz/100KHz
- Accuracy : ± 2 counts
- Pulse : 0 – 100 / 1K / 10khZ
- Accuracy : ± 2 counts
- Loop Power : 0 – 24V
- Accuracy : ±10%
- Switch : 0 – 100/1K/10K/100kHz
- Accuracy : ±2%
- R Type thermocouple : 0°C to 1767°C
- Accuracy : ±1.2°C
- S Type thermocouple : 0°C to 1767°C
- Accuracy : ±1.2°C
- K Type thermocouple : -200.0°C to 1372.0°C
- Accuracy : ±0.5°C
- E Type thermocouple : -200.0°C to 1000.0°C
- Accuracy : ±0.4°C
- J Type thermocouple : -200.0°C to 1200°C
- Accuracy : ±0.5°C
- T Type thermocouple : -250. 0°C to 400°C
- Accuracy : ±0.6°C
- N Type thermocouple : -200.0°C to 1300°C
- Accuracy : ±0.7°C
- R Type thermocouple : 600.0°C to 1820°C
- Accuracy : ±1.1°C
- PT100-385 : -200.0°C to 800°C
- Accuracy : ±0.3°C
- PT200-385 : -200.0°C to 630°C
- Accuracy : ±0.22°C
- PT500-385 : -200.0°C to 630°C
- Accuracy : ±0.22°C
- PT1000-385 : -200.0°C to 630°C
- Accuracy : ±0.22°C
- Cu10 : -100.0°C to 260°C
- Accuracy : ±2°C
- Cu50 : -50°C to 150°C
- Accuracy : ±0.6°C
- Pressure : Determined by pressure module
Other Features:
- Except the functions listed in Table 1, the calibrator has the following features as well: You can operate the measurement and source function simultaneously. The LCD screen is divided into two separate sections, whose upper part displays measurement information and lower part displays source information.
- TC measurement/source terminals and built-in lead connector of same temperature (RJ compensation with auto-reference joint point)
- Manual step source and auto -step and sweeping -step source
- Room temperature monitoring under any operation
- Measurement/source temperature monitoring function
- Measurement/source mA% display Measurement wave-filter function
- Measurement manual-holding function
- Pressure source auto-holding function
- Normal Mode Rejection Ratio (NMRR) ≥ 60dB (at 50Hz or 60Hz) Common Mode Rejection Ratio (CMRR) ≥140dB (at 50Hz or 60Hz)
- Temperature Coefficient: 0.1 times the applicable accuracy specification per degree C for 5°C to 18°C and 28°C to 40°C
- The range of the internal temperature compensation sensor is from -10°C to 50°C, compensation error = 0.5°C
- Temperature Coefficient: 0.1 times the applicable accuracy specification per degree C for 5°C to 18°C and 28°C to 40°C.
- The range of the internal temperature compensation sensor is from -10°C to 50°C
- Maximum voltage between any output terminal and earth: 30V DC
- Maximum output current: Approximately 25mA.
Standard Accessories:
- Two set of Industrial testing Lead
- A set of Testing Lead
- A set of Alligator clip
- A quick reference guide
- A User's Manual
- One Fuse 50mA/250V
- One Fuse 63mA/250V
General Specifications:
These specifications assume:
- A 1-year calibration cycle
- An operating temperature of 18° to 28°
- Relative humidity of 35% to 70% (non_condensing)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
SKU | ME.EL.PR.00060 |
---|---|
Product Type | Process Calibrators |
Model No | 25 |
Colour | Yellow-Black |
Display | Backlit LCD |
Certifications | IEC 61010 |
DC Voltage Range | Measure: 0-50mV/500mV/5V/50V, Source: 0-100m/1V/10V |
DC Current Range | Measure: 0 – 50mA, Source: 0 – 20mA |
DC Voltage Resolution | 1µV |
DC Voltage Accuracy | ±0.02% |
DC Current Resolution | 1µA |
DC Current Accuracy | ±0.02% |
Resistance range | Measure: 0 – 500O/5KO, Source: 0 – 400O/4KO/40KO |
Resistance Resolution | 0.01O |
Resistance Accuracy | ±0.02% |
Frequency Range | Measure: 0 – 500Hz/5KHz/50KHz, Source: 0 – 100Hz/1KHz/10KHz/100KHz |
Frequency Resolution | 0.01Hz |
Frequency Accuracy | ±2% |
Pulse Range | 0 – 100Hz/1kHz/10kHz |
Loop Power Supply | 24V |
