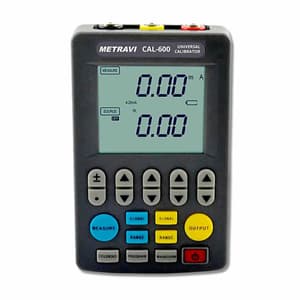

The Metravi CAL-600 Universal Calibrator has multiple signal outputs and can measure various parameters including Voltage, Current, Resistance and Thermoelectric couple.
With its large LCD display, silicon keypad, easy-to-use operations, long service life, high accuracy and programmable output, it is widely used in Labs, various industrial fields, PLC process instruments etc., for debugging Electric and other parameters.

Hand Held, 4 Digits Large LCD Display, Measures and Provides output for 20mV / 100mV / 15V DC, Current output up to 24mA, 24V Loop Power, Resistance output and measurement and outputs for K, E, J, T, R, S, B, N types of thermocouples and PT-100 temperature sensor.

Features:

• Hand Held, Battery Operated
• Extra Large LCD Display
• Displays both output and measurements
• In the output / measurement mode following are available:
• Step wise output of 4/8/12/16/20/24mA
• 24V Loop Power Output

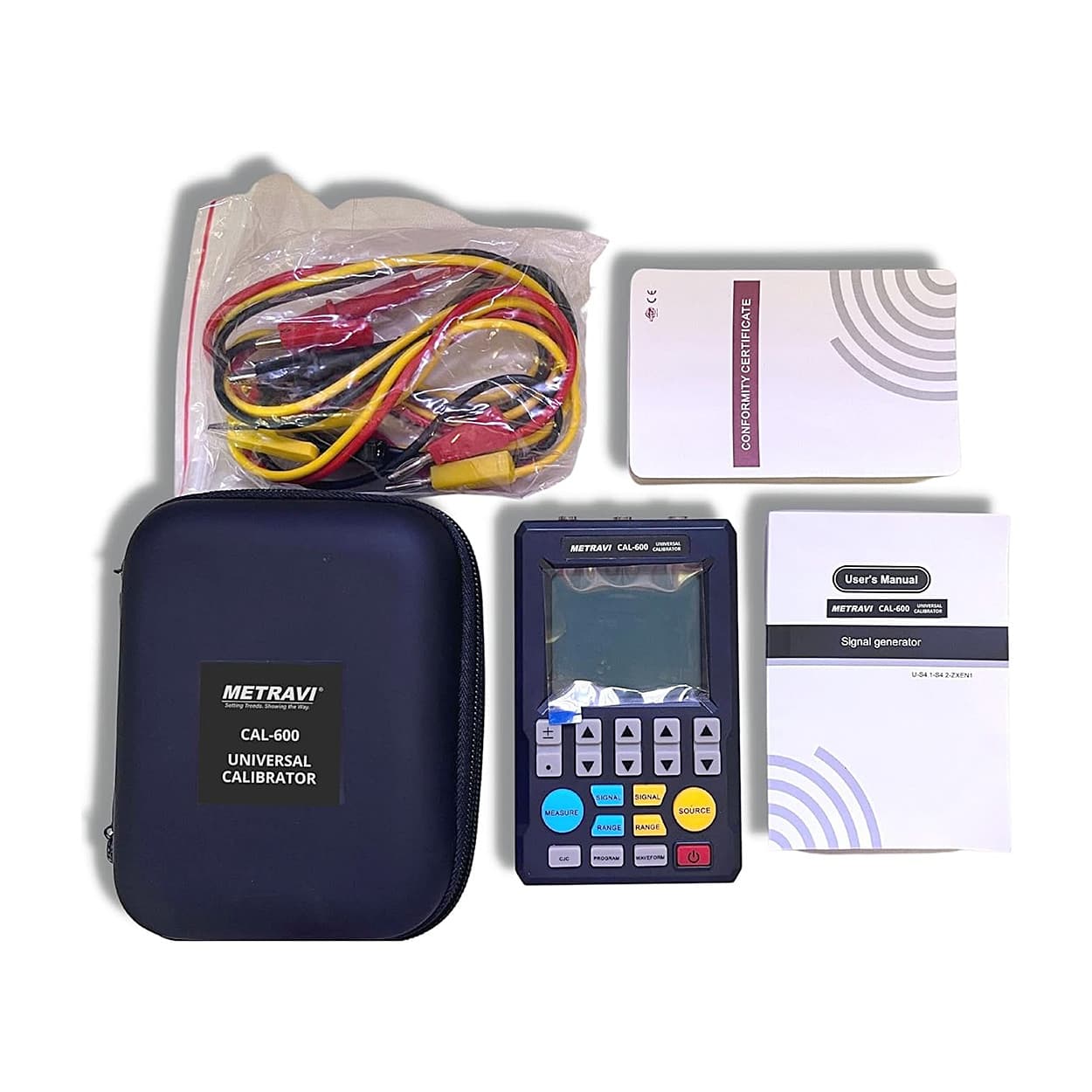

Package Content:

• Battery
• Testing leads
• Instruction manual

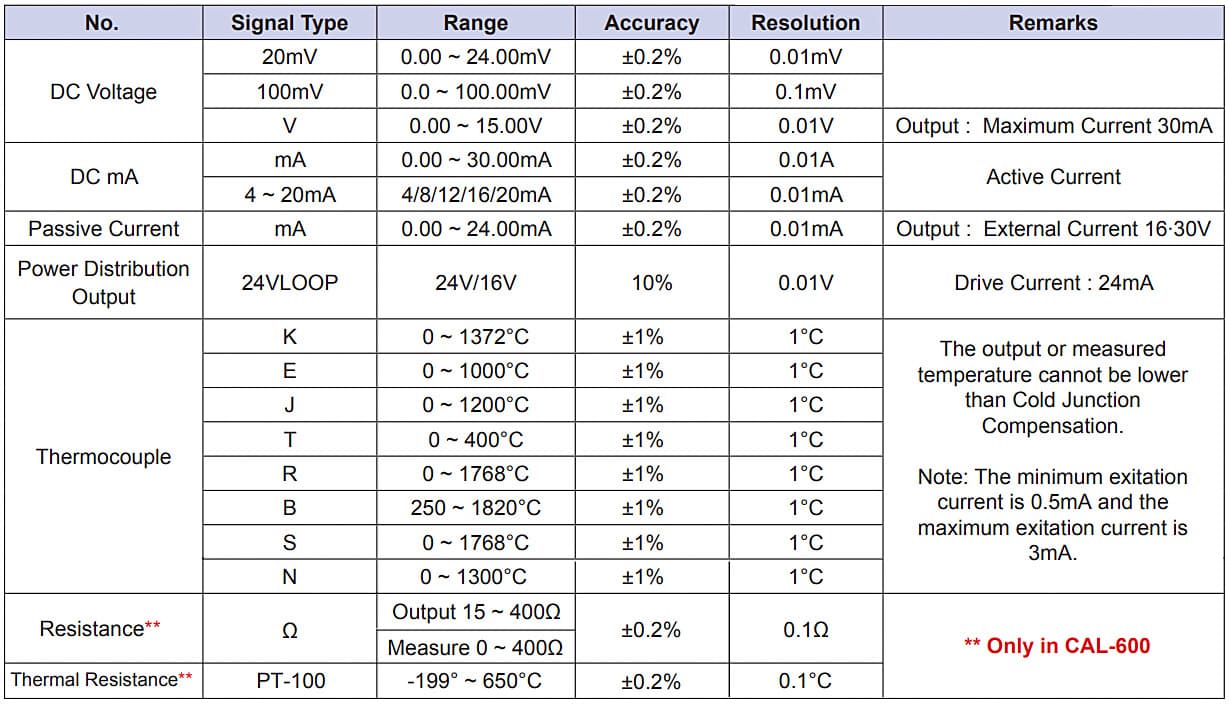

Measurement & Output Signal:

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
