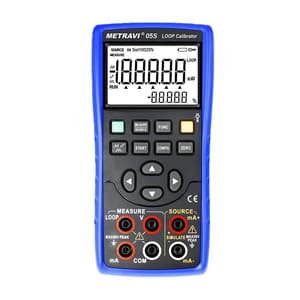

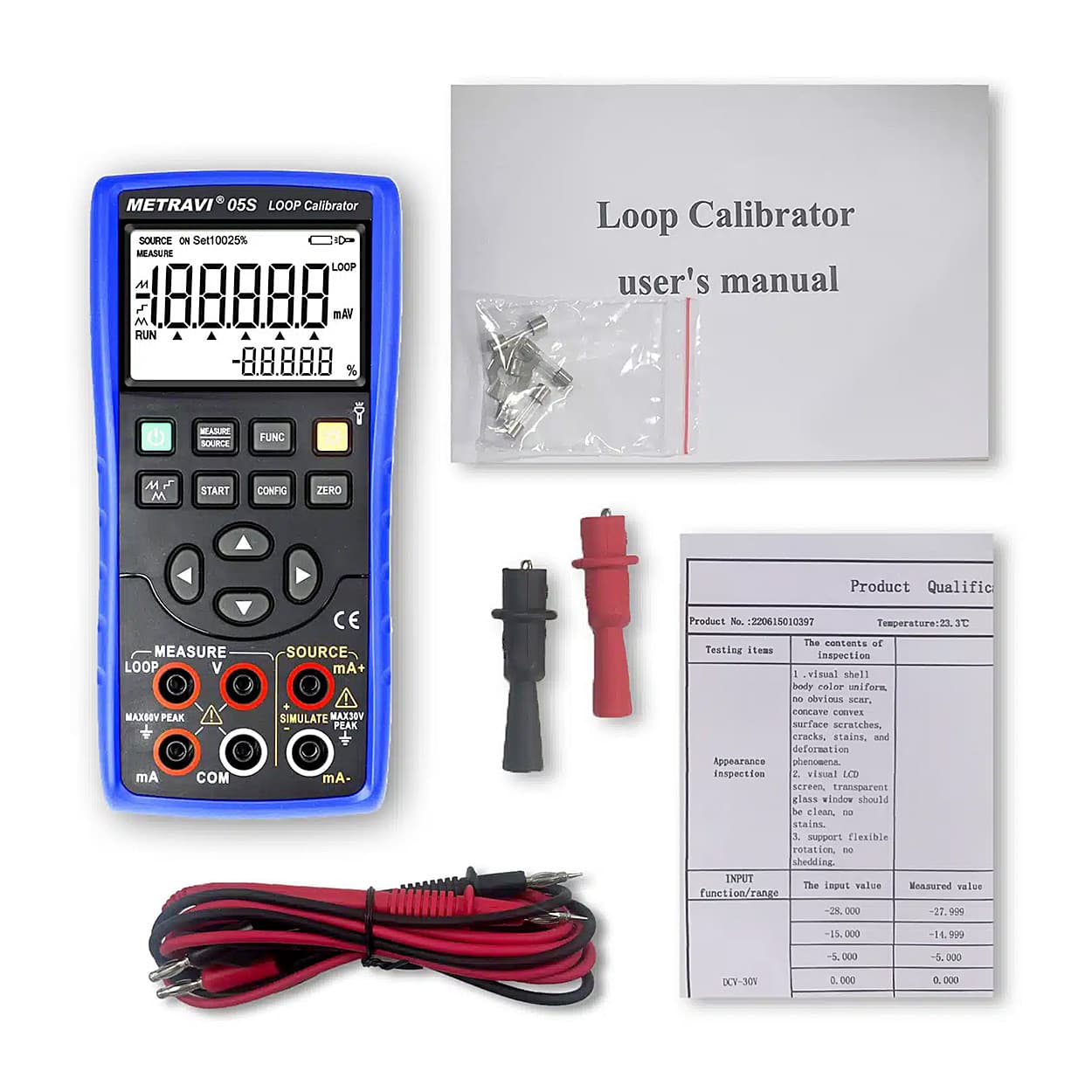

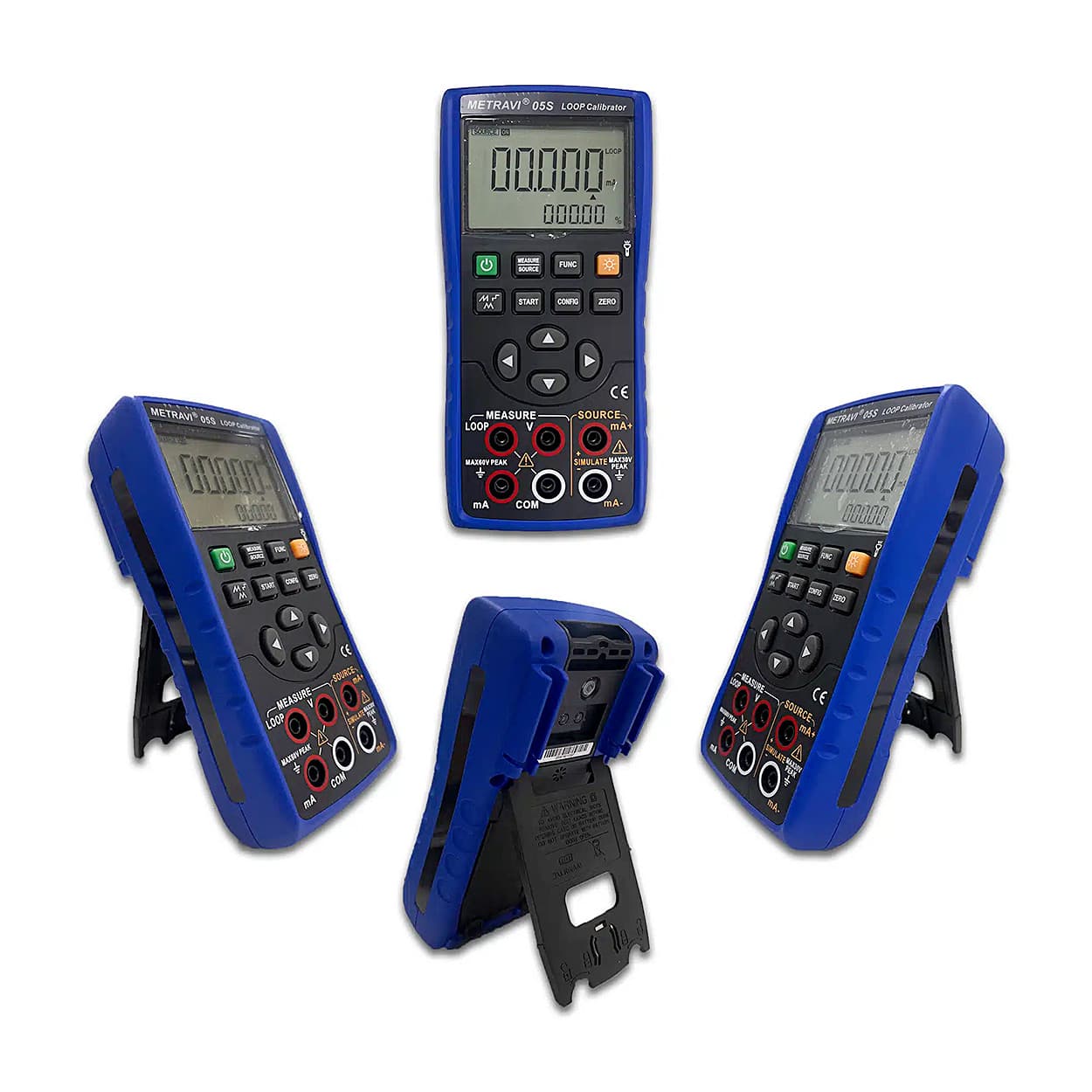

Metravi 5 Digit 0.5% Accuracy Digital mV mA Loop Calibrator, M-05S

Shop all Metravi

SKU: ME.EL.PR.00106

Model: M05S

Roll over image to zoom zoom_in
  1. Metravi 5 Digit 0.5% Accuracy Digital mV mA Loop Calibrator, M-05S
  2. Metravi 5 Digit 0.5% Accuracy Digital mV mA Loop Calibrator, M-05S
  3. Metravi 5 Digit 0.5% Accuracy Digital mV mA Loop Calibrator, M-05S

  • Product Type: Process Calibrators
  • Power Supply: Battery
  • Shock: 1 Mtr Drop Tested
  • Sampling Rate: 2~3 times / second
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

32605.76 (Incl. of all taxes)

27632+ ₹4973.76 GST (18%)

MRP ₹40635

SAVE 32%



5 Business Days

1 Set

90318000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Metravi M-05S is a handy and high accuracy mV mA Calibrator with Loop process function. With a maximum measurement accuracy of 0.05% and a 5 digit display, it features sampling rate of 2-3 times/secs, a Loop detection function, simultaneous measurement of current, and the mA measurements also have a percentage display mode.

With internal 24V circuit power supply, double fuse protection and an IP40 rated housing, this proves to be an advanced instrument in the hands of professionals.


Features:

  • Power Supply: Internal 24V circuit power supply
  • Maintenance setup functions
  • Auto power-off
  • Backlight
  • LED Flashlight
  • Segment code is displayed on the LCD with a white backlight.
  • Power: 3 AA battery cells
  • Low-battery detection
  • Small, firm, reliable, suitable for field use
  • Electrical safety: EN61010-1:2001
  • Withstand voltage: AC3540V(50/60Hz)/5 seconds between terminal and housing.
  • Insulation impedance: DC1000V/100MΩ or more between terminal and housing.
  • Electromagnetic compatibility (EMC): EN61326-1:2006
  • Protection grade: IP40.
  • Vibration and fall: IEC 60068-2-64:2008, IEC 60068-2-32:2008
  • CE certification.
  • Quality standard: developed, designed and manufactured in accordance with TUV ISO 9001


Analogue Output:

  • DC Current: 0.000mA~30.000mA
  • Resolution: 0.001mA
  • Accuracy: 0.05%+4uA
  • Display: 5 digits
  • Output settings can be manually increased or decreased by position
  • DCI output includes active output (internal 24V power supply)
  • Passive output (external 24V power supply).
  • mA has a percentage display mode.
  • During DCI output, it can provide manual stepping and automatic waveform output functions
  • The manual stepping output mode includes: 25% stepping and 100% stepping.
  • The output current is selectable from 0~20mA or 4~20mA.
  • Automatic wave output type includes automatic step, sawtooth wave, triangle wave, and automatic waveform working parameters can be configured

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.PR.00106
Product TypeProcess Calibrators
Model NoM05S
Operating Temperature 0 to 50ºC
Operating Humidity <80%RH
Storage Temperature Range -25 to 60ºC
Storage Humidity Range <90%RH
Electrical Safety EN61010-1:2001
Insulation Impedance DC1000V/100M Ohms
Electromagnetic Compatibility EN61326-1:2006
Protection Grade IP40
Power Supply Battery
Battery Type Alkaline
Battery Size AA
Shock 1 Mtr Drop Tested
Display 5 digits LCD, Backlit
Loop Power Supply Accuracy ±10%
DC Current Measurement Range -35mA to 35.000 mA
DC Current Measurement Resolution 0.001mA
DC Current Measurement Accuracy ±0.02%
DC Voltage Measurement Range -35V to 35.000V
DC Voltage Measurement Resolution 0.001V
DC Voltage Measurement Accuracy ±0.02%
Sampling Rate 2~3 times / second
Stepping output Mode 25% to 100%
Vibration And Fal IEC 60068-2-32:2008, IEC 60068-2-64:2008
Vibration 5-500Hz, IEC 60068-2-32:2008 2g, IEC 60068-2-64:2008
Withstand Voltage AC3540V(50/60Hz)/5 seconds between terminal and housing
