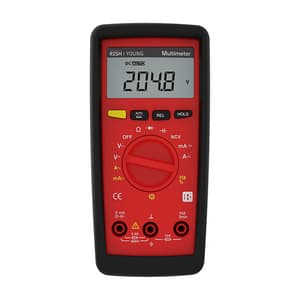

The new Rishabh iYoung Multimeter are compact, Handy & Trendy multimeters specially targeted for applications of Electrical contractors, Service Industry, Technicians, HVAC and also the education sector i.e., students who will be the future of tomorrow

Features:

• Pocket size compact Multi-meter
• Diode measurement and continuity testing
• Data Hold
• Relative measurement
• Duty cycle (%) measurement
• Non-Contact Voltage Detection
• Drop proof Multimeter
• LCD display field (49.7 x 23.9 mm) with digital display & display of unit of measure, current type & various special functions.

Applications:

• Hold: By pressing the HOLD key, the currently displayed measurement value can be held and “HOLD” is simultaneously displayed.
• Relative measurement (REL): By pressing the REL key, the zero correction is made. All functions can do zero correction except Hz/Duty.
• Automatic/manual measuring range selection: The measurement functions are chosen with the rotary selector switch. The measuring range is automatically adjusted to the measurement value. The measuring range can also be manually selected with the AUTO/MAN button. (Note: For Frequency (Hz), Duty cycle ( % ) and Capacitance ( F ) measuring range is AUTO.  No Manual range selection is possible.
• Hz/Duty: The instrument can measure frequency (Hz) and duty cycle (%) of the AC Voltage by pressing Function (Yellow) key.
• Non Contact Voltage Detection: RISHABH iYoung allows you to detect the voltage presence in the live circuit without any electrical contact. NCV will be detected above 120V AC without safety cover.
• Overload warning: An acoustic signal occurs when measuring AC voltage>750V, DC Voltage>1000V, AC/DC mA current>400.0mA, AC/DC current>10.00A.
• Energy saving circuit (Auto Power Off): The instrument is switched off automatically, if none of the operating elements have been activated for about 15 minutes.
• Protective cover for rough operating conditions: A protective cover of Rubber Holster with a built-in stand protects the instrument against jolts and falls.
• Diode and continuity testing: This provides for the testing of the polarity of diodes, as well as inspection for short-circuits and circuit interruptions. In addition to the display, resistance of less than approx 60 ± 5Ω are indicated with an acoustic signal
• Others: It has provision of mounting clip for hands free operation in awkward situation.

Reference conditions for Accuracy:

• Reference Temperature: 23°C ± 2K
• Relative Humidity: 45%...55% RH
• Waveform of measured quantity: Sinusoidal
• Input frequency: 50Hz
• Battery Voltage:  3V ± 0.1V

Applicable regulations and standards:

• EMC Immunity: IEC 61326-1:2012, Table A.1
• Immunity: 8 KV atmosphere discharge & 4 KV contact discharge (IEC 61000-4-2) / 3 V/m (IEC 61000-4-3)
• Safety: IEC 61010-1-2010
• IP for Water & Dust: IEC 60529
• Pollution degree: 2
• High Voltage Test: 3.6 kV
• Short-term measured value deviation may occur during electro-magnetic interference thus reducing the specified operating quality

Power Supply:

• Battery: 2 X 1.5V Cells
• Battery Type: Alkaline manganese Dioxide cells.
• Battery Life: Approx. 400 hours. (Alkaline manganese dry cell)

Package Content:

• 1x Digital Multimeter
• 1x Cable set
• 1x Copy Operating Instructions
• 1x Protective Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
