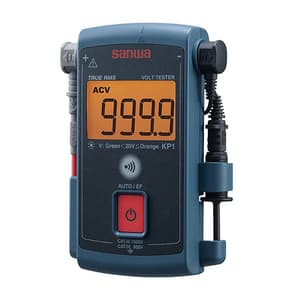

Sanwa 1000V AC/DC Digital TRMS Voltage Tester, KP1
Roll over image to zoom zoom_in
- Product Type: Insulation Testers
- Voltage Range (AC/DC): 5~999.9V
- Voltage Accuracy: ±(0.7%+5)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹13334 (Incl. of all taxes)
₹11300+ ₹2034 GST (18%)
7 Business Days
1 Set
9030
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Self test-checking failures of the LCD, disconnection of a lead wire
- EF(Electric Field) detection
- LCD with backlight & LED Light for dark place
- Auto data hold
- Auto power off(1min.)
- Auto identification of AC or DC voltage
Package Content:
- Digital Voltage Tester
- 2x Test probe (TL-35 & TL-A01)
- Test Lead (TL-36)
![]() | Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
![]() | Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
![]() | Backlight Backlit display allows indicator reading in a dark place |
![]() | Auto Power Off Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function. |
![]() | EF Function Non-Contact AC Voltage Detection |
![]() | True RMS (True root-mean-square value) True RMS value. AC current and voltage of a non-sine wave can be measured by true RMS values. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
SKU | ME.EL.IN.00140 |
---|---|
Product Type | Insulation Testers |
Model No | KP1 |
Voltage Range (AC/DC) | 5~999.9V |
Voltage Accuracy | ±(0.7%+5) |
Voltage Resolution | 0.1V |
Display Counts | 9999 (Numeral Display) |
Sampling Rate | 6 Times/sec. (ACV), 5 Times/sec. (DCV) |
Bandwidth | 45 - 400Hz |
Battery | 2x LR03 Batteries |
Battery Life | 20h |
Safety | IEC61010 CAT. IV 600 V/CAT. III 1000 V |
Continuity | Buzzer sounds at between 20k Ohm and 500k Ohm Open voltage: approx.0.6V |
EF Detection | A Voltage of Electric Field of About 60v or More Is Detected. The Bar Graph And Intermittant Buzzer Beeps Change In Five Steps |
