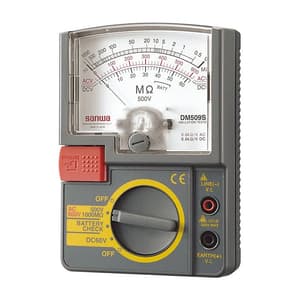

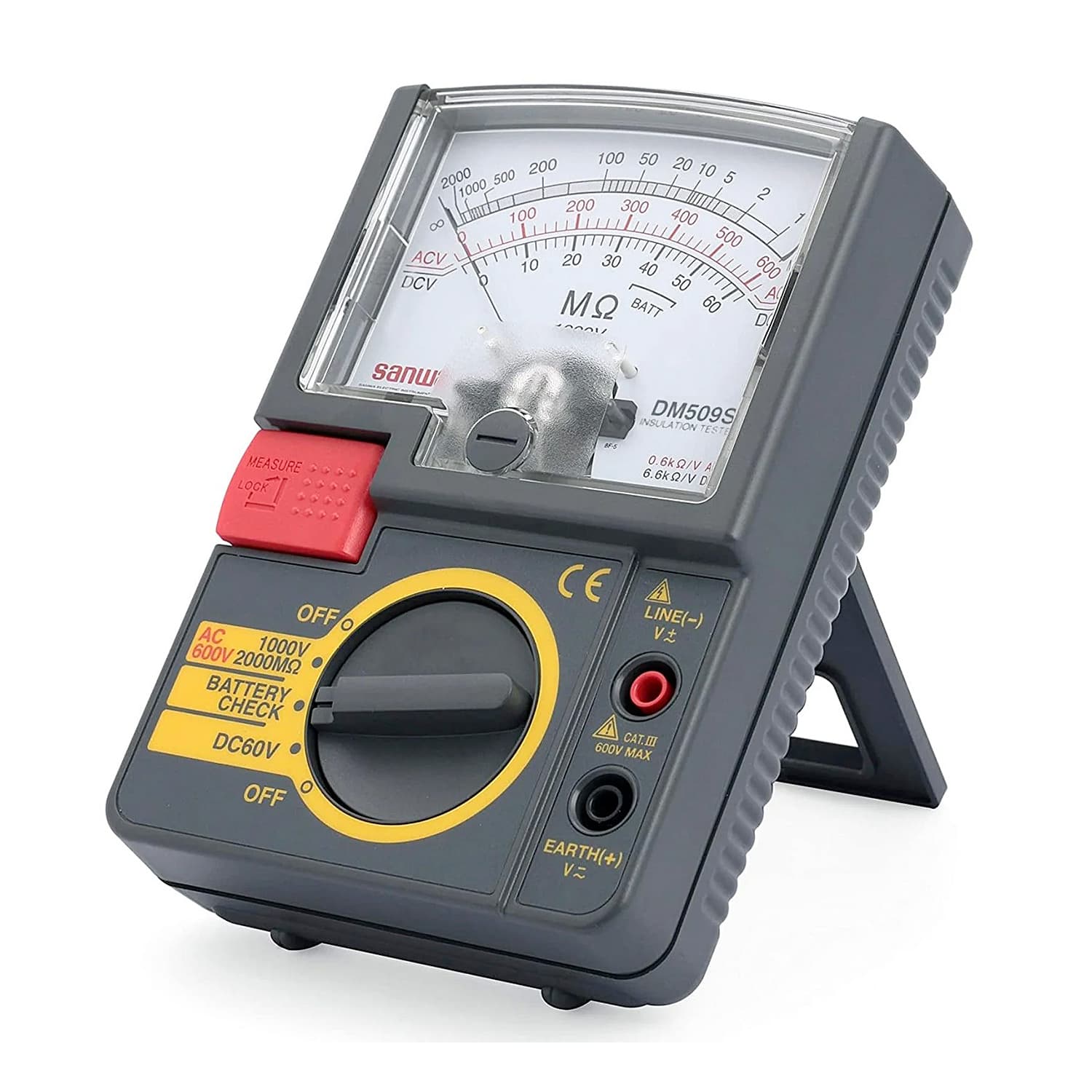

The Sanwa DM509S is a DC insulation resistance tester to measure electric lines and equipment's insulation resistance. The DM509S is IEC61010-1 and IEC61010-2-030 CAT. III 600V certified and has an IP20 rating that protects it against dust and other particles. The insulation resistance function on this device has an accuracy of ±5% of full scale and can measure the insulation resistance of up to 1000MΩ. This instrument is also capable of measuring AC and DC voltages along with a battery check function. The DM509S is equipped with the MΩ (insulation resistance) measuring switch that enables both one-shot or continuous measurement.

Features:

• Test voltage DC500V
• One-shot or continuous measurement push switch
• DCV measurement range (DC60V)
• Auto discharge function
• Inner battery check range
• ACV measurement range
• Meter type: Internal magnet, Taut-band meter(24µA)
• AC rectifier form: Half-wave rectification (Mean value indication rms value converted)

Accuracy:

Insulation Resistance (MΩ)	1st effective measurement range: ±5% of full scale 2nd effective measurement range: ±10% of a full scale
ACV	±5% of full scale
DCV

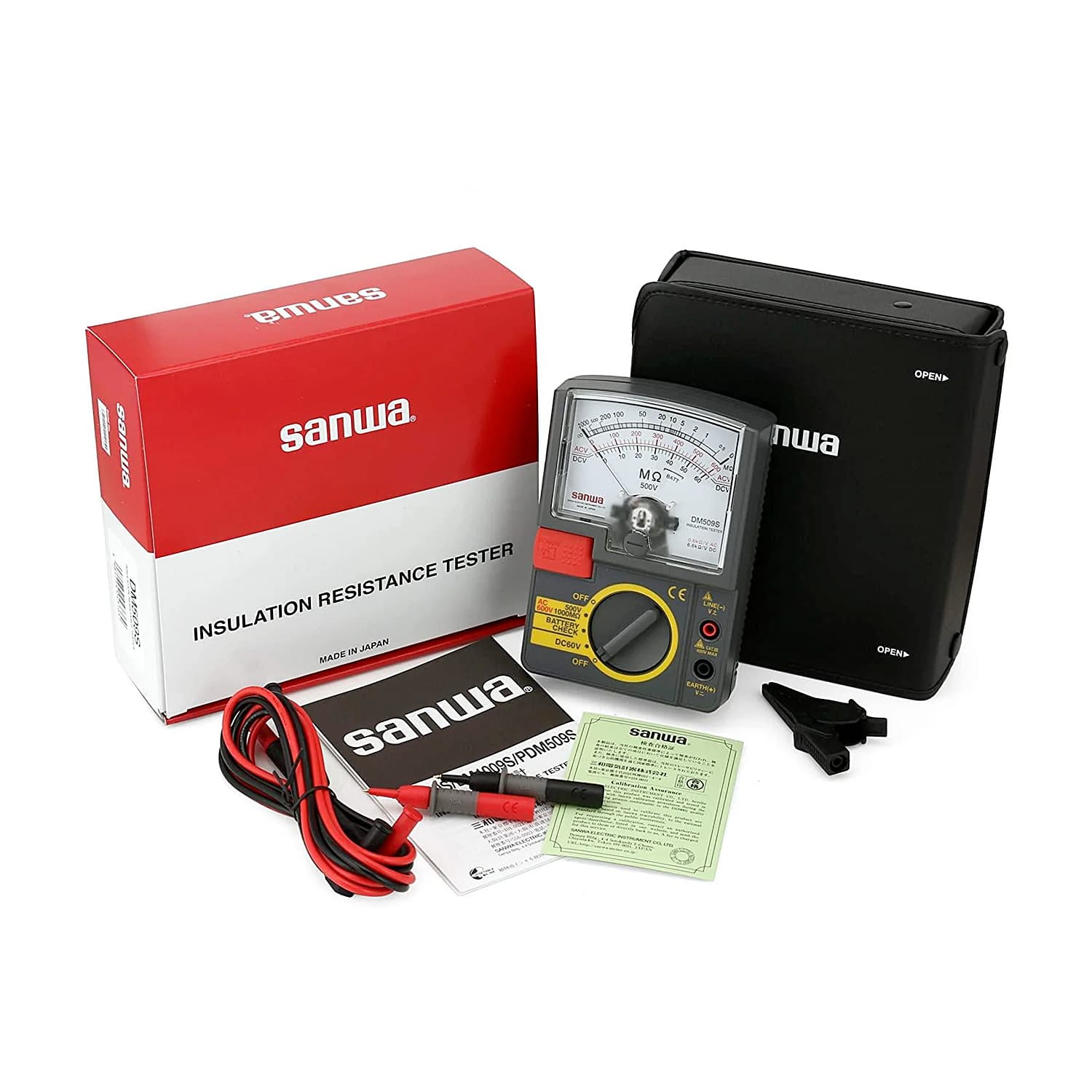

Package Content:

• Analog Insulation Tester

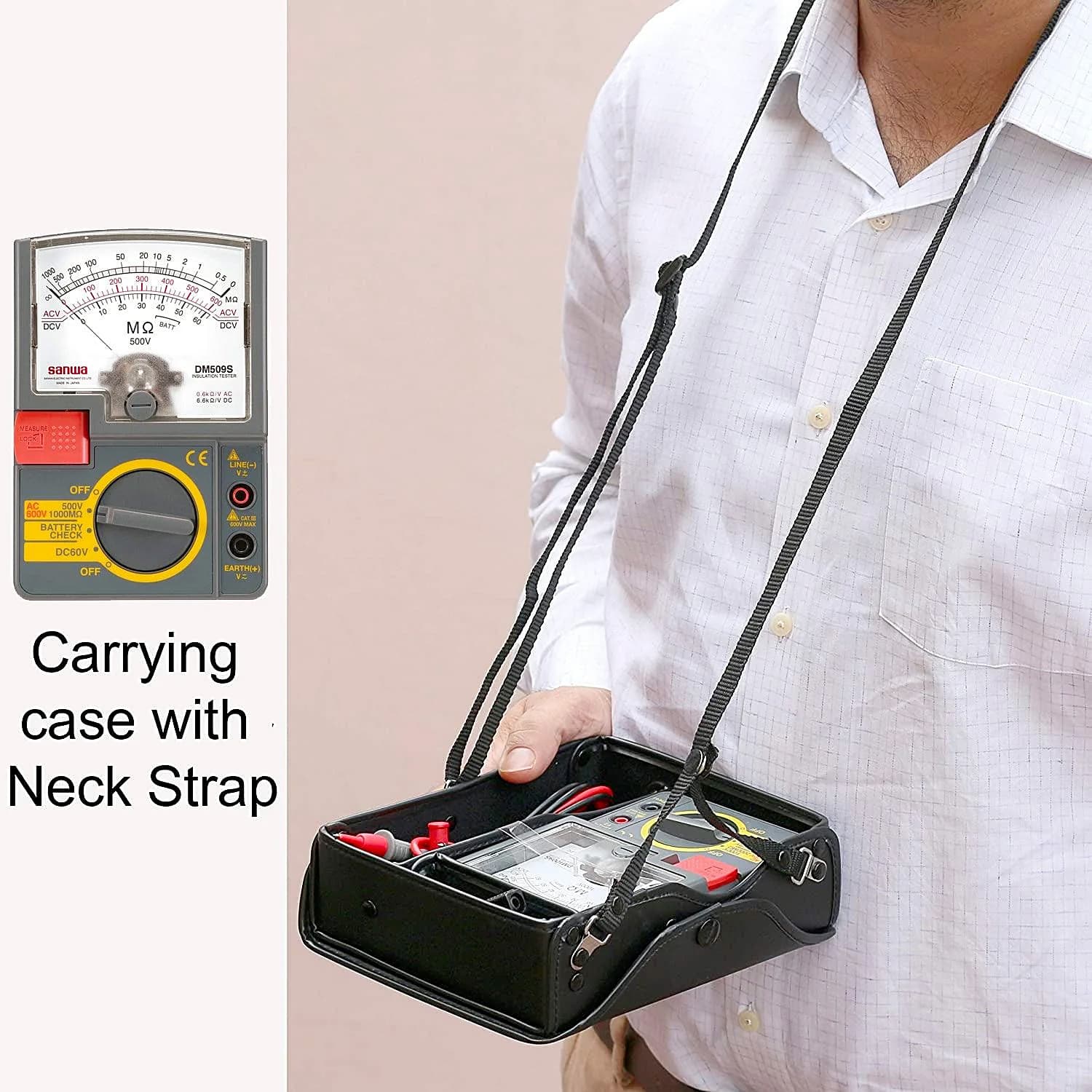

• Carrying Case with Strap
• Test Leads
• Manual
