Hioki 20 KOhm / V Basic Analog Tester Multimeter, 3030-10
Roll over image to zoom zoom_in
- Weight: 280 Grams
- Product Type: Multimeter
- Power Supply: R6P (AA) Manganese Batteries
- DC Voltage Range: 0.3 V (16.7 kOhm / V), 3/12/30/120/300/600 V (20 kOhm / V)
- AC Voltage Range: 12 V (9 kOhm / V), 30/120/300/600 V (9 kOhm / V)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹5138.9 (Incl. of all taxes)
₹4355+ ₹783.9 GST (18%)
MRP ₹5444
SAVE 20%
5 Business Days
1 Pcs
9030
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

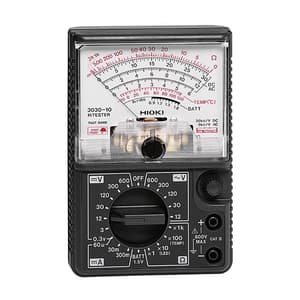

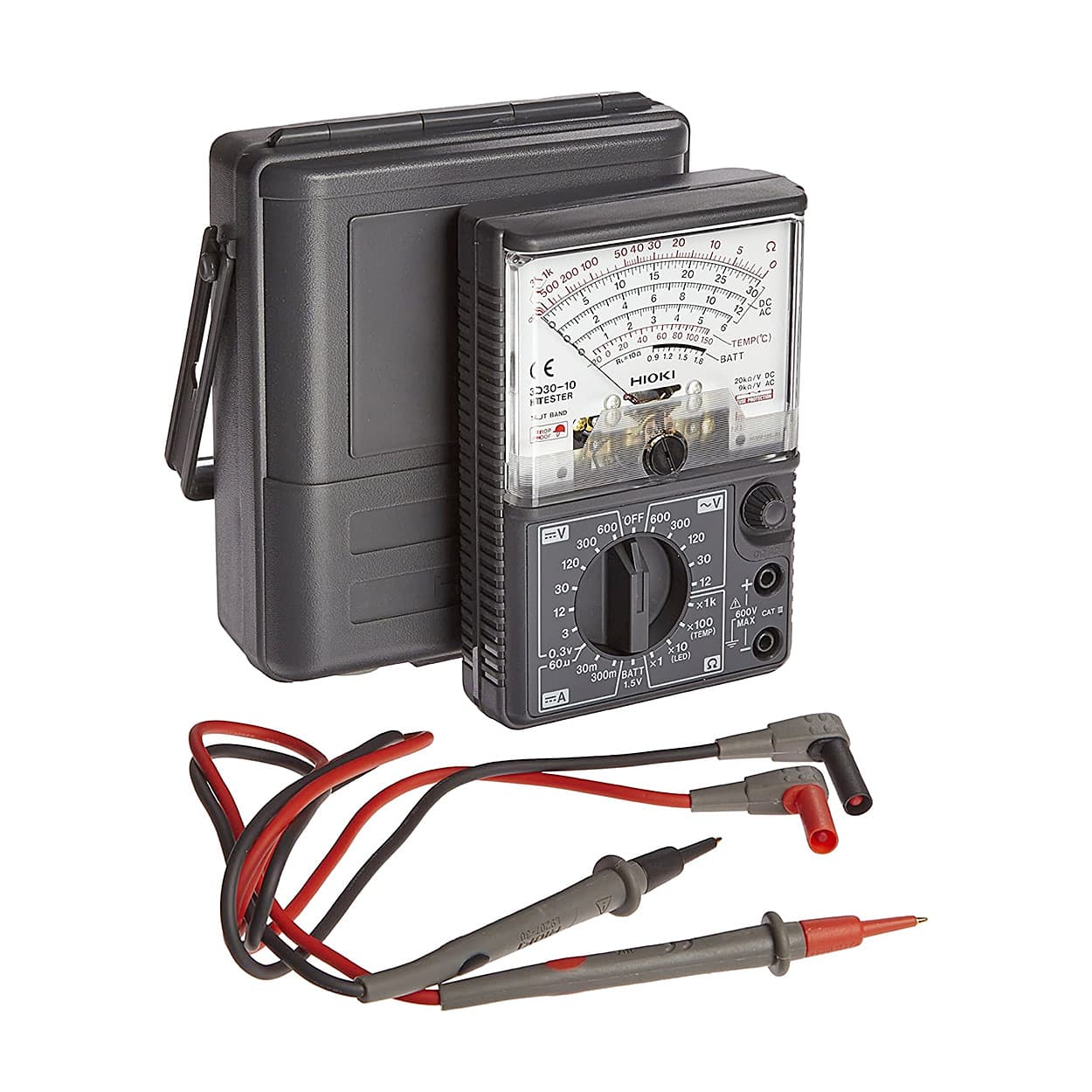

The Hioki 3030-10 is an analog multimeter that measures voltage, current and resistance, with robust construction that withstands a 1 meter drop onto a concrete floor.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Key Features:
- Drop proof design withstands drop onto a concrete floor from a height of 1 meter
- LED check, Battery check support
- The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers.
What's Included In This Package:
- 1x Test Lead L9207-30
- 1x Instruction manual
- 2x R6P (AA) manganese batteries
- 1x Spare fuse
- 1x Carrying case 9390 ×1
|

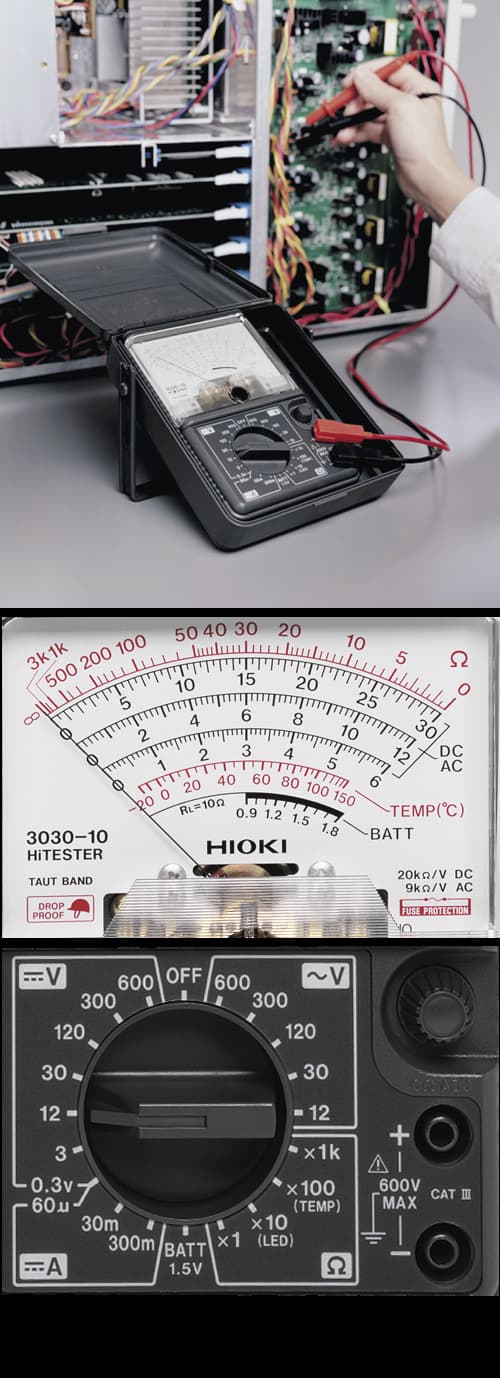

Simple, easy-to-read scale |
|
Robust design that can withstand being dropped onto concrete from a height of 1 m |
|

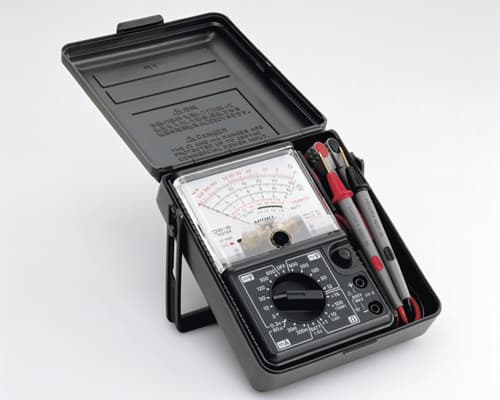

Included carrying case designed to hold probes |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00049 |
|---|---|
| Product Type | Multimeter |
| Model No | 3030-10 |
| Power Supply | R6P (AA) Manganese Batteries |
| DC Voltage Range | 0.3 V (16.7 kOhm / V), 3/12/30/120/300/600 V (20 kOhm / V) |
| DC Voltage Range (Accuracy) | ±2.5 % f.s. |
| AC Voltage Range | 12 V (9 kOhm / V), 30/120/300/600 V (9 kOhm / V) |
| AC Voltage Range (Accuracy) | ±4 % f.s. / ±2.5 % f.s. (Average Rectifier Effective Value) |
| DC Current Range | 60 µA/30 m/300 mA (300 mV Internal Voltage Drop) |
| DC Current Range (Accuracy) | ±3 % f.s. |
| Resistance Range | 0 to 3 kOhm (Center Scale 30 Ohm), R × 1, R × 10, R × 100, R × 1 k |
| Resistance Range (Accuracy) | ±3 % of Scale Length |
| Battery Check | 0.9 - 1.8 V, Load Resistance 10 Ohm |
| Battery Check (Accuracy) | ±6 % f.s. |
| Length x Width x Height | 95 mm × 141 mm × 39 mm |
