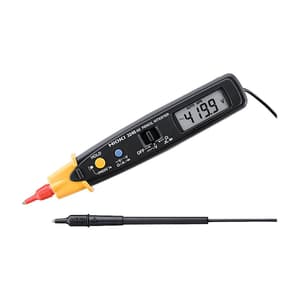

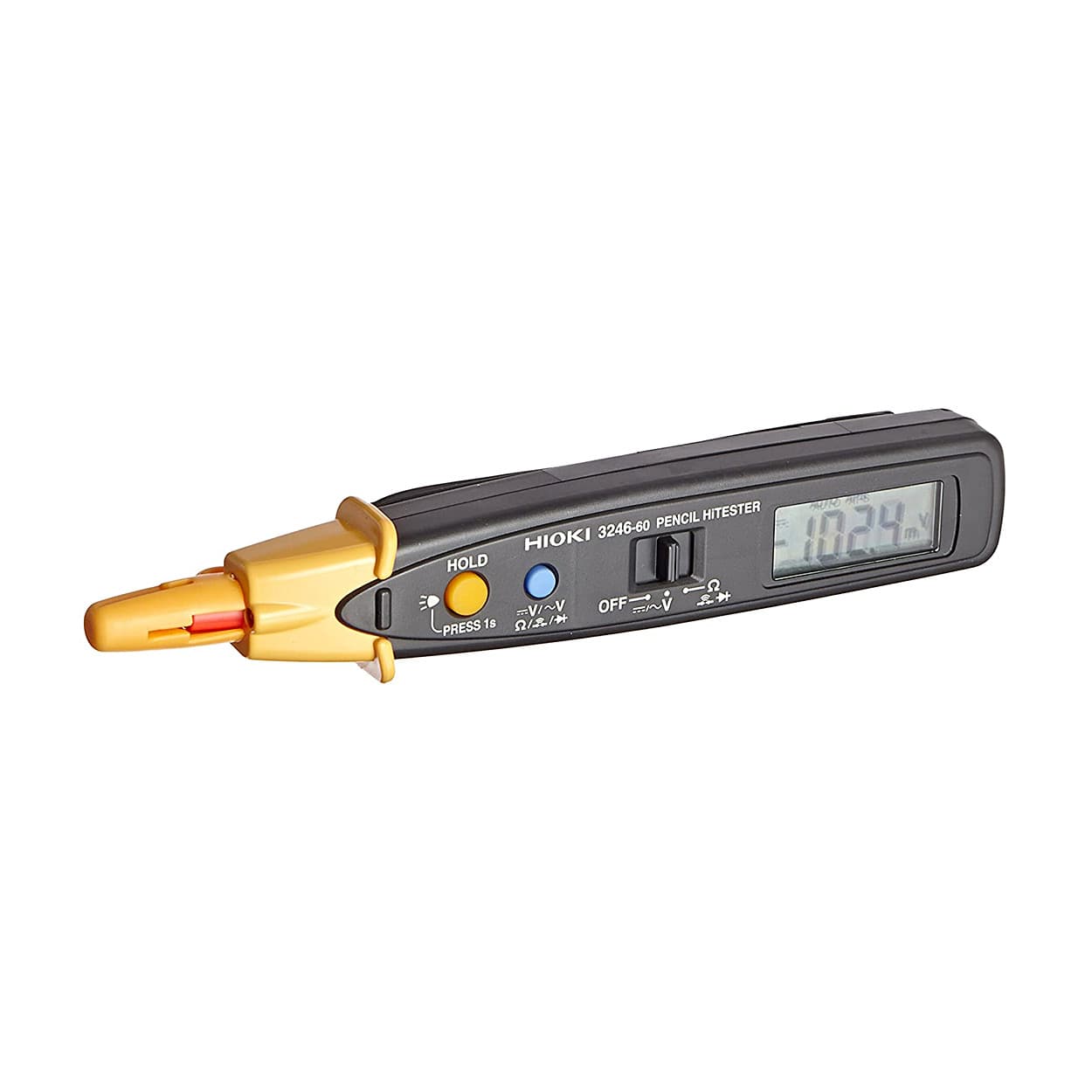

Hioki 600 V Pencil-Style Pocket Digital Multimeter, 3246-60
Roll over image to zoom zoom_in
- Weight: 80 Grams
- Product Type: Multimeter
- Power supply: Coin Type Lithium Battery (CR2032)
- DC Voltage Range: 419.9 mV to 600 V, 5 Ranges
- AC Voltage Range: 4.199 V to 600 V, 4 Ranges
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹4900.54 (Incl. of all taxes)
₹4153+ ₹747.54 GST (18%)
MRP ₹5191
SAVE 20%
5 Business Days
1 Pcs
9030
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

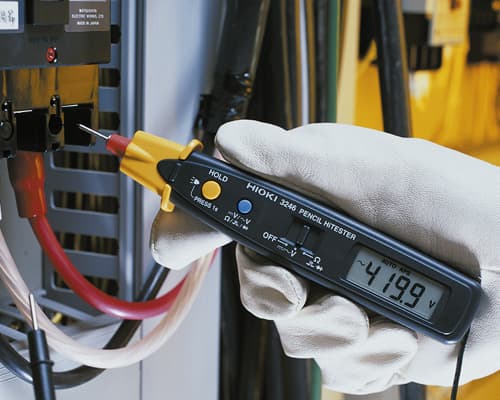

The 3246-60 is a pencil-style digital multimeter for general electrical maintenance and testing, and includes a brilliant LED at the pen tip for a clear view of the measurement target.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Key Features:
- Test lead and main unit in a single body
- Overload protection to 600 V at resistance or continuity functions
- LED light brightly illuminates test points
What's Included In This Package:
- 1x Sleeves (Red/ Black each 1)
- 1x Instruction manual
- 1x Coin type lithium battery CR2032 (for trial purposes only)
|
Easy-to-use pen-type tester featuring a slim profile |
|

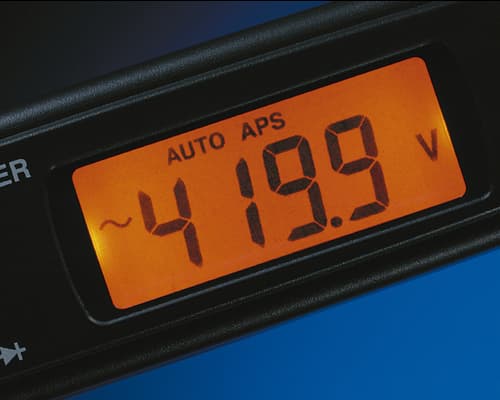

Backlit display that’s easy to read even in dim locations |
|

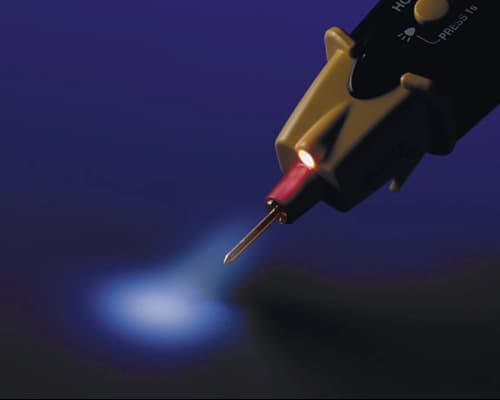

Pen tip with an integrated LED light that’s convenient when working in dim locations |
|

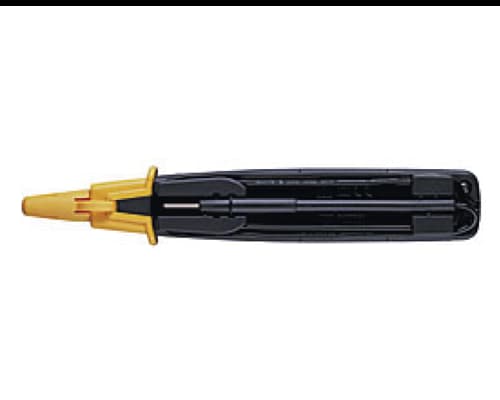

Space for stowing test leads on the back of the instrument |
|

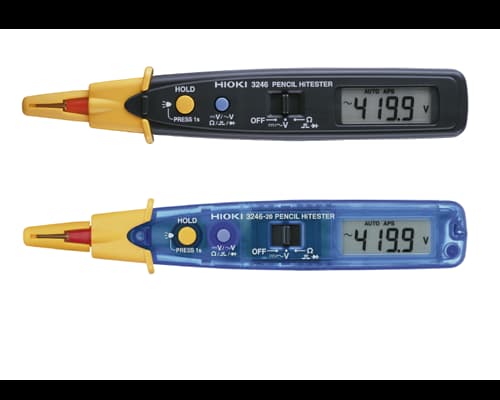

Available in black and see-through designsAuto-power-save function to prevent battery wear |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00048 |
|---|---|
| Product Type | Multimeter |
| Model No | 3246-60 |
| Power supply | Coin Type Lithium Battery (CR2032) |
| DC Voltage Range | 419.9 mV to 600 V, 5 Ranges |
| DC Voltage Range (Basic Accuracy) | ±1.3 % rdg. ±4 dgt. |
| AC Voltage Range | 4.199 V to 600 V, 4 Ranges |
| AC Voltage Range (Basic Accuracy 50 - 500 Hz) | ±2.3 % rdg. ±8 dgt. (Average Rectified) |
| Resistance Range | 419.9 Ohm to 41.99 MOhm, 6 Ranges |
| Resistance Range (Basic Accuracy) | ±2.0 % rdg. ±4 dgt. |
| Continuity Buzzer | Detection level 50 Ohm ±40 Ohm |
| Diode Check | Judges The Right Direction Only, Open Terminal Voltage: 3.4 V or Less, Testing Current: 800 µA or Less |
| Auto Power Save | Available (Cancel Selectable) |
| Display | Digital LCD, max. 4199 Digits |
| Sampling Rate | 2.5 times/sec |
| Battery Usage | Continuous Operating Time: 150 hours (at DC V Function), 30 hours (With Light Turned On For 10 Seconds And Off For 20 Seconds Per Cycle & In DC V Function) |
| Length x Width x Height | 30 mm × 182 mm × 26.5 mm |
