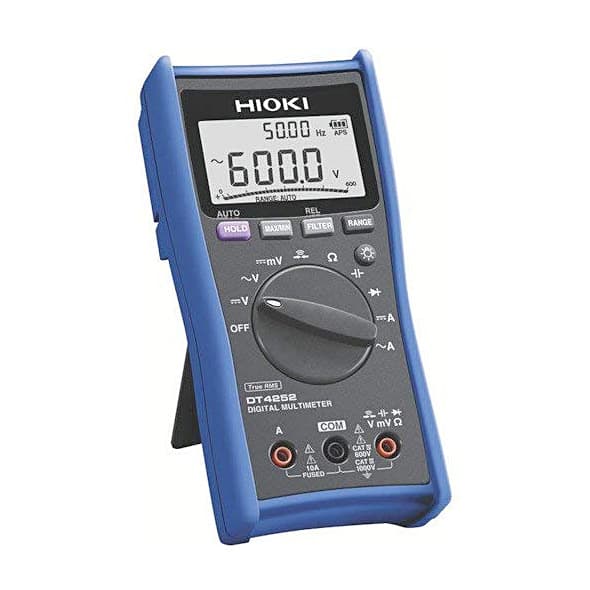

Hioki 6000 Count Premier Pocket Digital MultiMeter, DT4252

Name: Hioki 6000 Count Premier Pocket Digital MultiMeter, DT4252
Brand: Hioki
SKU: ME.EL.MU.00040
Price: 10027 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Hioki

SKU: ME.EL.MU.00040

Model: DT4252

Roll over image to zoom zoom_in

Visit Hioki Store keyboard_double_arrow_right

Key Features

Weight: 390 Grams
Product Type: Multimeter
Power supply: LR03 Aalkaline Batteries
DC Voltage Range: 600.0 mV to 1000 V, 5 Ranges
AC Voltage Range: 6.000 V to 1000 V, 4 Ranges

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹11831.86 (Incl. of all taxes)

₹10027+ ₹1804.86 GST (18%)

MRP ₹12534

SAVE 20%

Dispatch: 5 Business Days

Items in Pack: 1 Pcs

HSN Code: 9030

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level.

The DT4252 is a digital multimeter designed specifically for general-purpose testing, with ±0.3% DC V accuracy, direct current input, and wide 40 Hz to 1 kHz bandwidth.''

Display: Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates: 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s)

Key Features:

±0.3% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
Measure up to 10A with direct input
USB communications function supports PC measurements (optional)
Dual display lets you check voltage and frequency simultaneously

What's Included In This Package:

1x Test lead L9207-10
1x Holster
1x Instruction manual
1x LR03 alkaline battery

The DT4252, which is part of Hioki’s DT4250 series of standard digital multimeters, packs a broad range of measurement capabilities into a single package.

- DC current 6.000A / 10.00A
- AC current 6.000A / 10.00A

Measurement data can be downloaded to, reviewed on, and saved to a computer.

If you connect the DT4252 to a computer with the optional Communication Package DT4900-01, you can graph data stored in the instrument’s internal memory and display measurement results in real time on the computer. In addition, displayed measured values can be saved (in text format).

*The computer and multimeter are electrically isolated by means of optical communications so that data can be sent with peace of mind.

Measure output voltage on the secondary sides of inverters by eliminating harmonic components

Accurately measure the fundamental wave alone by eliminating harmonic components with the DMM’s low-pass filter function.

True RMS measurement for accurate measurement of even distorted current waveforms

Digital multimeters implement two types of measurement: mean-value measurement and true RMS measurement.
The two methods yield significantly different measurement results for current waveforms, which are often distorted.
For accurate measurement, it is necessary to use an instrument with true RMS capability.

Designed and manufactured in Japan to ensure high quality and guaranteed with a 3-year warranty for peace of mind

All development, design, and manufacturing processes for almost all Hioki digital multimeters are carried out at our Head Office in Nagano Prefecture. Some of the industry’s most advanced technological capabilities enable us to deliver products of the highest possible quality.

Safe measurement requires use of an instrument that suits the measurement location

To ensure operators’ ability to use measuring instruments safely, IEC 61010 classifies the locations in which instruments are used into a series of safety-based measurement categories (ranging from CAT II to CAT IV). Using an instrument that does not satisfy the required safety level can lead to an electrical accident. Despite a compact body, the DT4222 can be used to measure voltage at distribution panels.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKU	ME.EL.MU.00040
Product Type	Multimeter
Model No	DT4252
Power supply	LR03 Aalkaline Batteries
DC Voltage Range	600.0 mV to 1000 V, 5 Ranges
DC Voltage Range (Basic Accuracy)	±0.3 % rdg. ±5 dgt.
AC Voltage Range	6.000 V to 1000 V, 4 Ranges
AC Voltage Range (Basic Accuracy 40 - 500 Hz)	±0.9 % rdg. ±3 dgt. (True RMS, Crest Factor 3)
DC Current Range	6.000 A / 10.00 A, 2 Ranges
DC Current Range (Basic Accuracy)	±0.9 % rdg. ±5 dgt.
AC Current Range	6.000 A / 10.00 A, 2 Ranges
AC Current Range (Basic Accuracy 40 - 500 Hz)	±1.4 % rdg. ±3 dgt. (True RMS, Crest Factor 3, 40 Hz to 1 kHz)
Frequency Range	AC V, AC A Measurement: 99.99 Hz (5 Hz or More) to 9.999 kHz, 3 Ranges (only for AC V)
Frequency Range (Basic Accuracy)	±0.1 % rdg. ±1 dgt.
Frequency Characteristics	40 Hz - 1 kHz
Continuity Check (Continuity Threshold [ON])	25 Ohm or Less (Buzzer Sound)
Continuity Check (Continuity Threshold [OFF])	245 Ohm or More Response Time: 0.5 ms or More
Resistance Range	600.0 Ohm to 60.00 M Ohm, 6 Ranges
Resistance Range (Basic Accuracy)	±0.7 % rdg. ±5 dgt.
Capacitance Range	1.000 µF to 10.00 mF, 5 Ranges
Capacitance Range (Basic Accuracy)	±1.9 % rdg. ±5 dgt.
Diode Test	Open Terminal Voltage: 5.0 V or Less, Testing Current 0.5 mA or Less, Threshold of Forward Voltage: 0.15 V to 1.5 V
Battery Usage	Continuous Use 130 hours (Back Light OFF)
Length x Width X Height	84 mm × 174 mm × 52 mm
Other Functions	Filter Function, Display Value Hold, Auto Hold, MAX/MIN/Average Value Display, Relative Value Display, Auto-Power Save, USB Communication (option)
