HTC 1000A AC / DC 2000 Count Clamp Meter with Backlight, CM-2046
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters

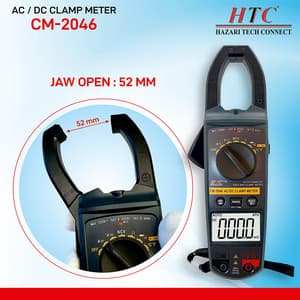

- Jaw Open: 52 mm
- Power: 9V (6F22) X 1
- Dimension: 270 (H) x 123 (W) x 35 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,997 (Incl. of all taxes)
₹2,540 + ₹457 GST (18%)
MRP was MRP ₹3,175
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available

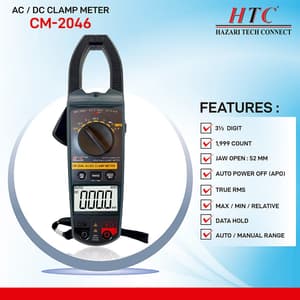

Highlights
- 3½ Digit Clamp Meter with Backlight.
- 2000 Count.
- Clamp Torch.
- Auto Power Off (APO).
- True RMS.

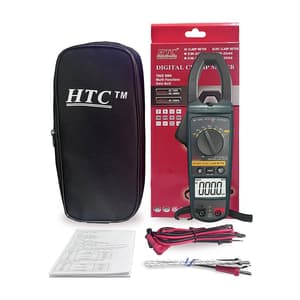

Package Contents:
- Manual,
- Test Lead,
- Soft Carrying Case.
DC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±1.0% of rdg ± 5 digits |
| 2V | 1mV | ±0.5% of rdg ± 5 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 1000V | 1V | ±1.0% of rdg ± 5 digits |
AC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±1.5% of rdg ± 5 digits |
| 2V | 1mV | ±1.0% of rdg ± 5 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 750V | 1V | ±1.5% of rdg ± 5 digits |
DC Current:
| Range | Resolution | Accuracy |
| 200A | 100mA | ±2.0% of rdg ± 5 digits |
| 1000A | 1A |
AC Current:
| Range | Resolution | Accuracy |
| 200A | 100mA | ±2.0% of rdg ± 5 digits |
| 1000A | 1A |
Resistance:
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±0.8% of rdg ± 5 digits |
| 2kΩ | 1Ω | ±0.8% of rdg ± 3 digits |
| 20kΩ | 10Ω | |
| 200kΩ | 100Ω | |
| 2MΩ | 1KΩ | |
| 20MΩ | 10KΩ | ±1.2% of rdg ± 5 digits |
Capacitance:
| Range | Resolution | Accuracy |
| 400μF | 100mF | ±5.0% of rdg ± 10 digits |
| 4μF | 1μF | |
| 40μF | 10μF |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

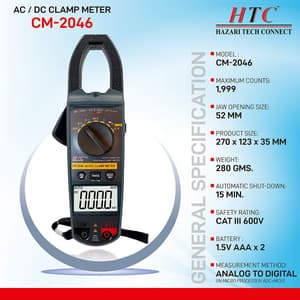

Specifications
| Jaw Open | 52 mm |
|---|---|
| Power | 9V (6F22) X 1 |
| Dimension | 270 (H) x 123 (W) x 35 (D) mm |
