HTC 1000A AC / DC 4000 Count Clamp Meter with Backlight, CM-2056

Name: HTC 1000A AC / DC 4000 Count Clamp Meter with Backlight, CM-2056
Brand: HTC
SKU: ME.EL.CL.00118
Price: 3403.00 INR
Availability: InStock

Shop all HTC

SKU: ME.EL.CL.00118

Model: CM2056

Roll over the image to zoom in

Visit HTC Store

Key Features

Product Type: Clamp Meters

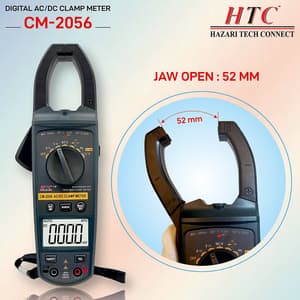

Jaw Open: 52 mm
Count: 4000 Count
Power: AAA 1.5Vx2

See all product information

ToolBuy Benefits

Secure Payments
Order Tracking (opens in a new tab)

₹3,403 (Incl. of all taxes)

₹2,884 + ₹519 GST (18%)

MRP was MRP ₹3,605

Save 20%

Dispatch: 5 Business Days

Items in Pack: 1

HSN Code: 90303100

Download Product LeafletNot available

Download HTC CatalogueNot available

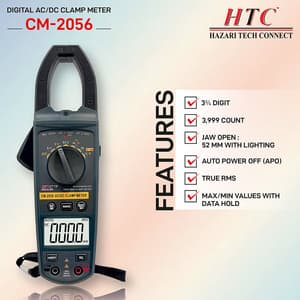

Highlights

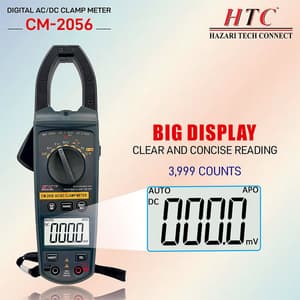

3¾ Digit Clamp Meter with Backlight.
4000 Count.
Clamp Torch.
Non-Contact Voltage (NCV)
Frequency / Temperature.
Auto Power Off (APO)
True RMS.

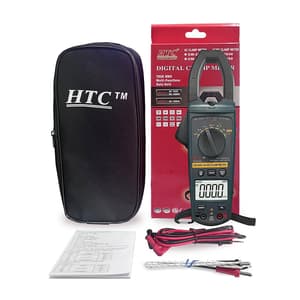

Package Contents:

Manual,
Test Lead,
Soft Carrying Case,
TP-04 Temperature Probe.

DC Voltage:

Range	Resolution	Accuracy
400mV	0.1mV	±1.0% of rdg ± 5 digits
4V	1mV	±0.5% of rdg ± 5 digits
40V	10mV
400V	100mV
1000V	1V	±1.0% of rdg ± 5 digits

AC Voltage:

Range	Resolution	Accuracy
4V	1mV	±1.5% of rdg ± 5 digits
40V	10mV
400V	100mV
750V	1V	±1.0% of rdg ± 5 digits

DC Current:

Range	Resolution	Accuracy
400A	0.1A	2% of rdg ± 5 digits
1000A	1A

AC Current:

Range	Resolution	Accuracy
400A	0.1A	2% of rdg ± 5 digits
1000A	1A

Resistance:

Range	Resolution	Accuracy
400Ω	0.1Ω	±0.8% of rdg ± 5 digits
4kΩ	1Ω	±0.8% of rdg ± 1 digits
40kΩ	10Ω
400kΩ	100Ω
4MΩ	1KΩ
40MΩ	10KΩ	±1.0% of rdg ± 10 digits

Capacitance:

Range	Resolution	Accuracy
4nF	1pF	±5.0% of rdg ± 10 digits
40nF	10pF	±2.5% of rdg ± 5 digits
400nF	100pF
4μF	1nF
40μF	10nF
400μF	100nF	±5.0% of rdg ± 10 digits
4mF	1μF
40mF	10μF

Frequency:

Range	Resolution	Accuracy
10Hz	0.01Hz	±0.5% of rdg ± 4 digits
100Hz	0.1Hz
1kHz	1Hz
10kHz	10Hz
100kHz	100Hz
1MHz	1KHz
10MHz	10Hz

Temperature:

Range	Resolution	Accuracy
(-40~1000)°C	1°C	<400°C±1.0% of rdg + 5 digits ≥400°C±1.0% of rdg + 15 digits
