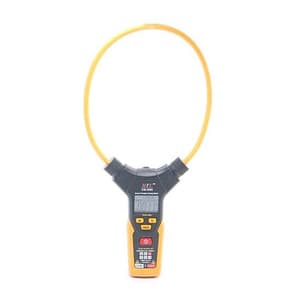

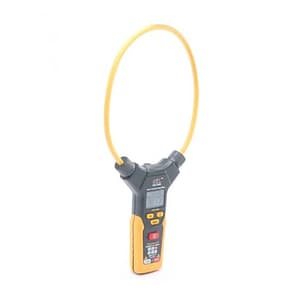

HTC 3000A AC / DC 5999 Count Flexible Current Clamp Meter, CM-2090
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Dia.: 75 mm
- Count: 5999
- Power: AAA 1.5V X 3
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,886 (Incl. of all taxes)
₹4,988 + ₹898 GST (18%)
MRP was MRP ₹6,235
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3000 A.
- SMART AC Digital Flexible Clamp.
- Clamp Torch with Backlight.

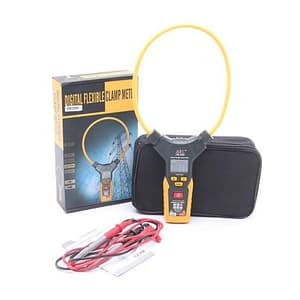

Package Contents:
- Manual,
- Test Lead,
- Soft Carrying Case.
DC Voltage:
| Range | Resolution | Accuracy |
| 6V | 0.001V | ±0.8% of rdg + 3 digits |
| 60V | 0.01V | |
| 600V | 0.1V |
AC Voltage:
| Range | Resolution | Accuracy | |
| 45~65Hz | 40~2000Hz | ||
| 6V | 0.001V | ±1.2% of rdg + 3 digits | ±2.0% of rdg + 5 digits |
| 60V | 0.01V | ||
| 600V | 0.1V |
Frequency:
| Range | Resolution | Accuracy |
| 40 – 1000Hz | 0.1Hz | ±0.5% of rdg + 2 digits |
| 1kHz – 10kHz | 1Hz |
AC Current:
| Range | Resolution | Accuracy | ||
| 60A | 0.01A | 40~65Hz | 65Hz~400Hz | 400~1000Hz |
| 600A | 0.1A | ±3.0% of rdg + 5 digits | ±3.0% of rdg + 5 digits | – |
| 3000A | 1A | |||
| <1000A±3.0% of rdg + 5 digits |
Resistance:
| Range | Resolution | Accuracy |
| 6kΩ | 0.001kΩ | ±1.0% of rdg + 3 digits |
| 60kΩ | 0.01kΩ | |
| 600kΩ | 0.1kΩ | |
| 6MΩ | 0.001MΩ |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Dia. | 75 mm |
|---|---|
| Count | 5999 |
| Power | AAA 1.5V X 3 |
| Dimension | 324 (H) x 178 (W) x 30 (D) mm |
