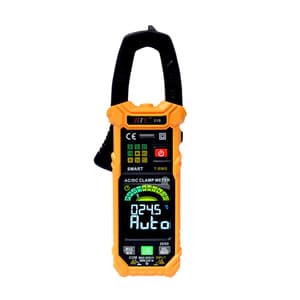

HTC 3-3/4 Digit / 6000 Counts AC/DC Smart Clamp Meter, 21-S
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Jaw Open: 36 mm
- Display Counts: 6000 Counts
- Power: 3 x 1.5V AAA Batteries
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,705 (Incl. of all taxes)
₹3,140 + ₹565 GST (18%)
MRP was MRP ₹3,925
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available

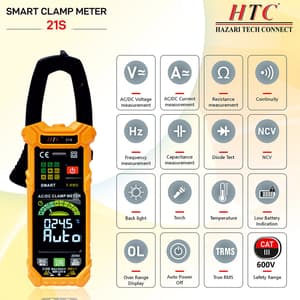

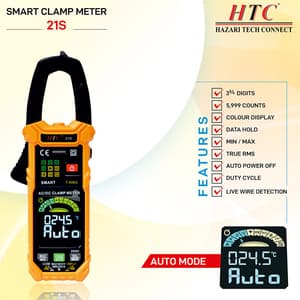

Highlights
- Display LCD with Bargraph.
- Auto Power Off (APO 5 minutes)
- Flash Light no operation sensing signal will shut down.
- Diode, NCV, Analog Bar, Data Hold, Max/Min, Backlight
- Flashlight, DCA Zero, Low battery Indication, Auto Power Off, True RMS

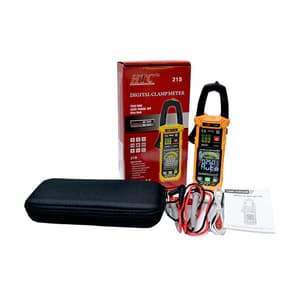

Package Contents:
- 21-S Clamp Meter,
- Soft carrying case,
- Instruction Manual,
- 2x Test leads,
- 3x 1.5V AAA Batteries.
Functions:
| Specification | Range Resolution | Accuracy |
| DC Voltage | 600mV/6V/60V/600V | ±(0.5%+5) |
| AC Voltage | 600mV/6V/60V/600V | ±(0.8%+5) |
| DC Current | 60A/600A | ±(2.5%+5) |
| AC Current | 60A/600A | ±(2.5%+5) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(1.0%+5) |
| Capacitance | 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF | ±(4.0%+5) |
| Frequency | 100Hz/1000Hz/10kHz/100kHz/1000kHz | ±(1.0%+3) |
| 10MHz | ±(3.0%+3) | |
| Duty | 1%~99% | ±(3.0%+3) |
| Temperature | -40ºC~1000ºC | ±(1.0%+3) |
| (ºC/ºF) | -40ºC~1832ºC | ±(1.0%+3) |
| Continuity | 600Ω | Yes |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

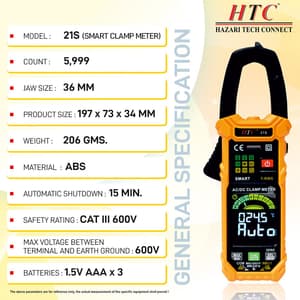

Specifications
| Jaw Open | 36 mm |
|---|---|
| Display Counts | 6000 Counts |
| Power | 3 x 1.5V AAA Batteries |
| Safety Rating | ENG1010-1,2-030; EN61010-2-033; EN61326-1, CAT III 600V |
