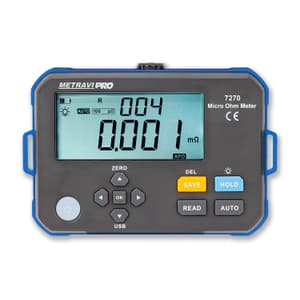

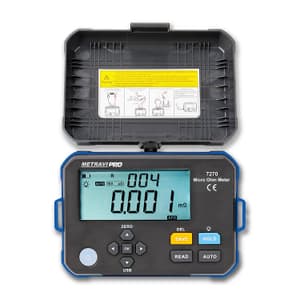

Metravi 0.001m - 300.0kOhms Range 1A Micro Ohms Meter with Data Logging, PRO 7270
Roll over the image to zoom in
Key Features
- Product Type: Ohms Meter
- Measuring Range: 0.001m ~ 300.0k Ohms
- Resolution: 0.001m ~ 0.1k Ohms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,915 (Incl. of all taxes)
₹21,114 + ₹3,801 GST (18%)
MRP was MRP ₹31,050
Save 32%
5 Business Days
1
90303900
Download Metravi CatalogueNot available
Highlights

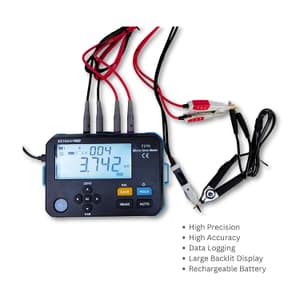

The Metravi PRO 7270 1A Micro Ohms Meter with Data Logging is designed with microprocessor technology and 4-wire testing method, which ensures safety and delivers accurate and reliable testing results. It is mainly used to measure the conductor resistance of cables; the contact resistance of switch, connector, and relay; the riveting resistance of metal and to test the connection resistance between metallic components; the low resistance, the resistance of connection conductors between the ground poles of grounding grid; the contact resistance, etc.

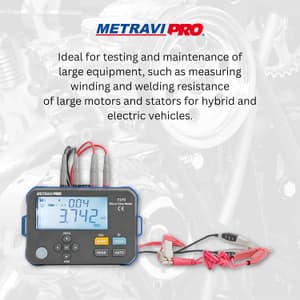

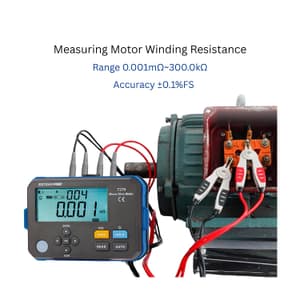

Up to 499 groups of data can be saved and the resistance measurement range is 0.001mΩ~300.0kΩ. The PC software has multiple functions including data reading, data saving, report generation, and more. It can measure a wide range of resistance values with high precision. The Metravi PRO 7270 1A Micro Ohms Meter with Data Logging is a highly accurate portable resistance meter capable of measuring resistance levels from micro-ohm to mega-ohm. It is ideal for testing and maintenance of large equipment, such as measuring winding and welding resistance of large motors and stators for hybrid and electric vehicles.
Features:
- Micro-ohm level measurement, Resistance measurement range: 0.001mΩ~300.0KΩ
- Resolution up to 1μΩ
- Accuracy can reach ±0.1%FS
- Measurement current ≤ 1A
- Data Logging for 500 groups
- Large LCD display
- Automatic shutdown, longer standby time
- Lithium battery can be used repeatedly
- Compact design, easy to carry and operate
Applications:
- Telecommunications
- Power Distribution Systems
- New Energy Vehicles (EV and Hybrids)
- Petrochemicals
- Industrial Plant Grounding Systems, etc.
Certifications:
- CE Certified, IEC61010-1
- Pollution Degree 2 Indoor use
- JJG724-1991 “Verification Regulation of DC Digital Ohmmeter”
- JJG116-1993 ”Verification Regulation of DC Resistors”
- “DL/T967-2005 Verification Regulation of Loop Resistance Tester and DC Resistance High-Speed Tester”

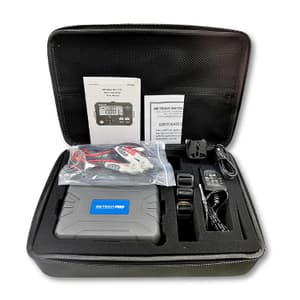

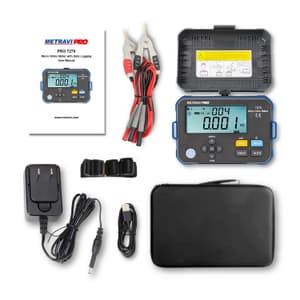

What's Included In This Package:
- Micro Ohms Meter
- Carrying Case
- Straps
- USB C-type Cable
- Test Leads 2 pcs (Red × 1; Black × 1)
- Charger
- User Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Range | 0.001m ~ 300.0k Ohms |
|---|---|
| Accuracy | ±(0.1%FS+20dgt) (18°C ~ 28°C ; <75% RH) |
| Resolution | 0.001m ~ 0.1k Ohms |

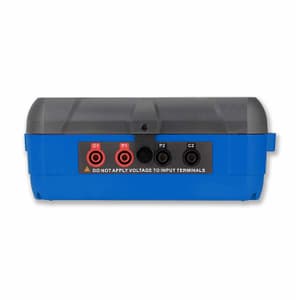

| Testing Method | 4-wire Method |
| Testing Current | <1A |
| Open Circuit Voltage | <4.2V |

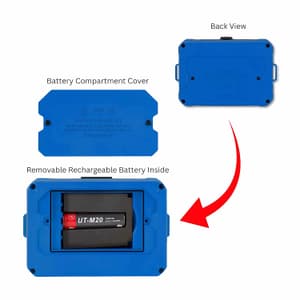

| Power Supply | DC 3.7V 3200mAh rechargeable lithium battery |
| Display (L x W) | 102 mm × 50 mm |
| Display Type | Backlit LCD |
| Backlight | Adjustable backlight on grey screen (Suitable for use in dark environments) |
| Sampling Time | About 2 times/s |
| Interface | USB C-type |
| Data Logging | 499 Groups of Data ("SAVE" appears to indicate data storage. "FULL" is displayed to indicate full storage.) |
| Over Range Indicator | "OL" is Displayed |
| Battery Power Indication | Yes |
| Auto Power-off | Yes |
| Test Lead Length | About 70 cm (Red ×1; Black × 1) |
