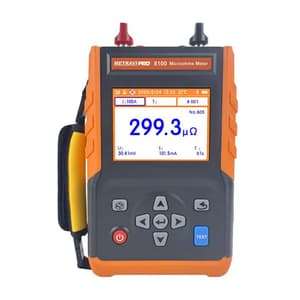

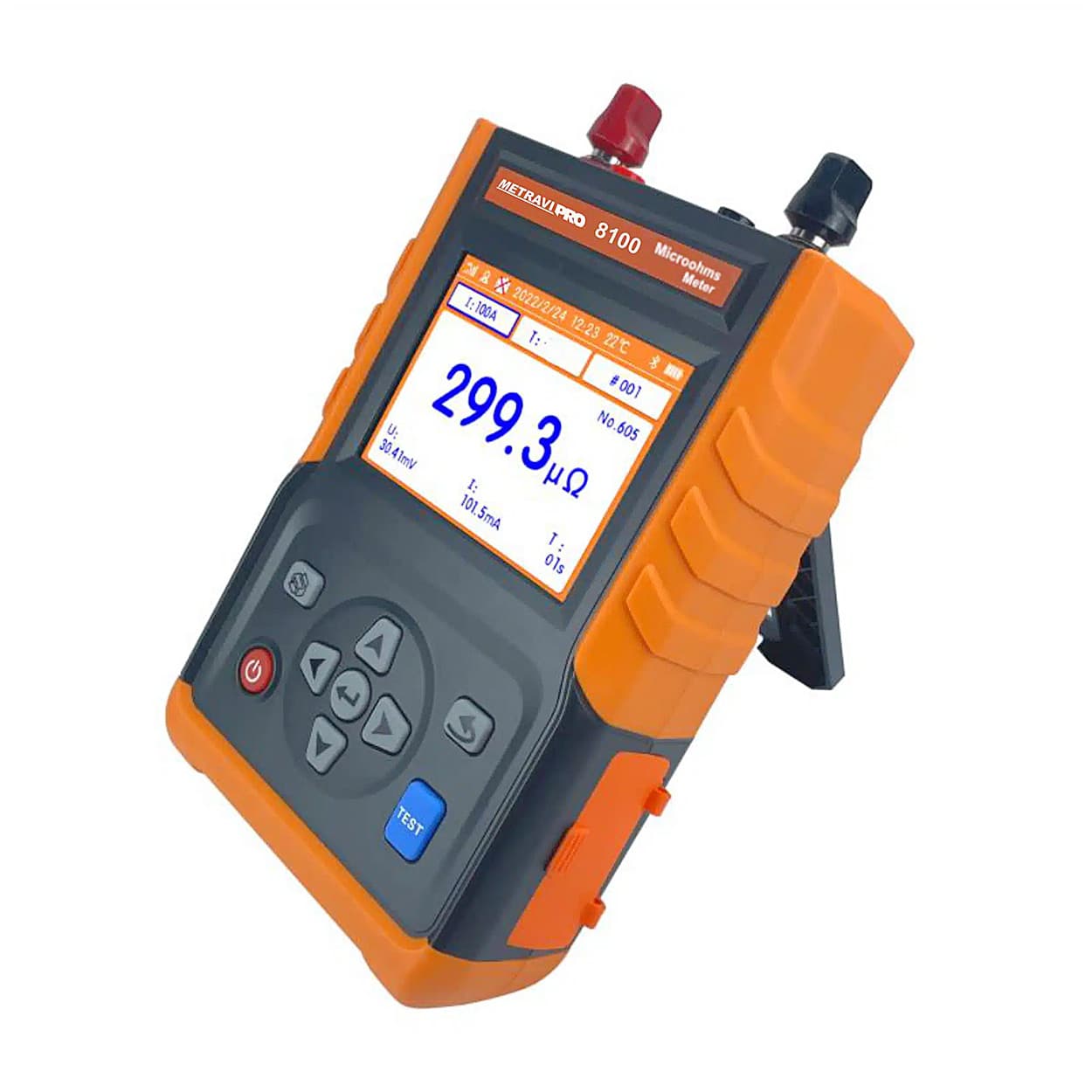

The Metravi PRO 8100 Micro Ohms Meter is designed to measure the Contact Resistance of various high voltage switches and circuit breakers, connection resistance of metal welding components, metal conductor Loop Resistance, and precision Micro Ohm Resistance. With a high-speed micro-controller at the core, the device combines high precision A/D converter, digital measurement technology, anti-power frequency interference technology, and advanced program-controlled current source technology, so that the built-in, high-capacity, rechargeable Lithium batteries produce no ripples.

Maximum output is 100A DC and the output current can be fine-tuned every 2.5A steps, up to 87 current gears, to meet the Multi-current Gear Test. At the same time, the user can set the time (10s, 20s, 30s, 40s, 50s, 60s), continuously output large Current Test, and can test with high precision, high stability, and high intelligence, even in strong interference environments.

The instrument features circuit protection and overheat protection. It comes with a 5.6 inch large, colour, LCD display, which is clear and intuitive. Equipped with standard resistors, the accuracy of the instrument can be self-inspected before the formal test. Wide-range, large Data Storage capacity, strong anti-interference ability, and simple operation make this handheld, small-size, easy-to-carry device, a valuable tool for the field. It can also be equipped with a printer for data printing (optional).

Features & Benefits:

• Printer
• Data Deletion
• Data Query
• Automatic Shutdown: 15 mins of. non-operation

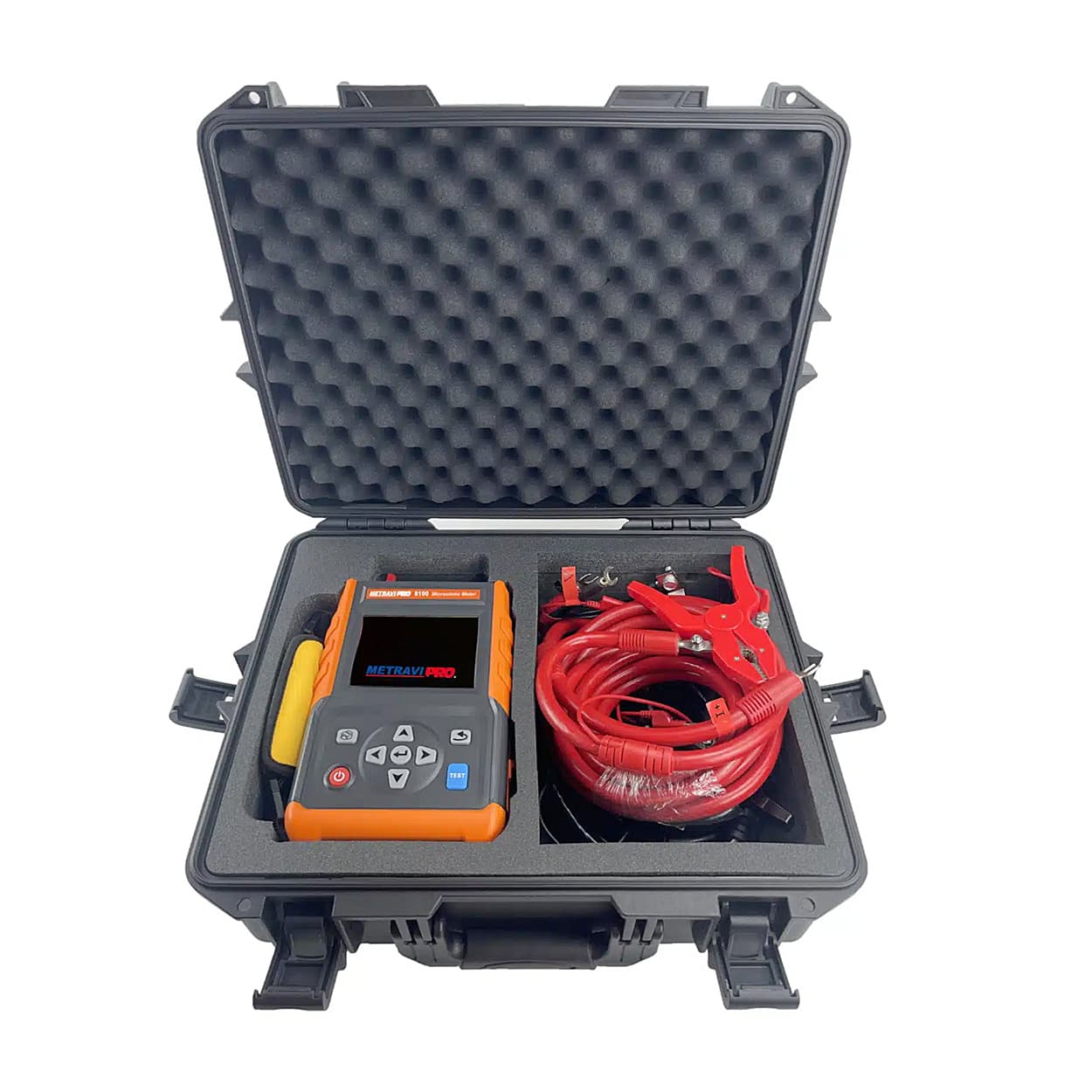

What's Included In This Package:

• Test Lead Red (10mts), Test Lead Black (10mts),
• Earth Line, Alligator Clip, Power Cable, USB Cable,
• Temperature Sensor, Printing Paper (1 roll),
• 3.75Ω Standard Resistance, User Manual, Software CD



Measurement Range: ≤5A: 1μΩ – 3500mΩ 10A: 0.1µΩ – 200mΩ 30A: 0.1μΩ – 20μΩ 50A: 0.01μΩ – 15mΩ 80A: 0.1μΩ – 1mΩ 100A: 0.01μΩ – 5mΩ

Accuracy: 30A~220A ±(reading*0.1%+measurement range*0.2%+1μΩ) 10A or less than 5A ±(reading*0.5%+measurement range*0.2%+10μΩ)
