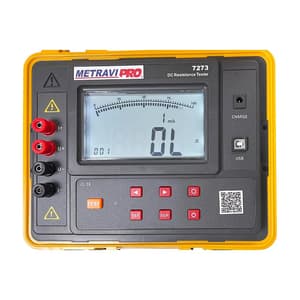

Metravi 10A Digital Mirco Ohms Meter / DC Resistance Tester, PRO 7273

The Metravi PRO 7273 DC Resistance Tester/ Microohms Meter adopts microprocessor technology and precise 4-wire method for accurate & reliable testing, For measuring transformer winding resistance, grounding continuity resistance, cable conductor resistance, contact resistance of switches, connectors and relays, metal riveting resistance, winding resistance of coil, motor, transformer, connection resistance between metal components, welding point resistance, battery parallel connection resistance and wire length measurement & calculation, etc.

CATIII 600V, DC resistance fast Tester verification procedure, DL/T967-2005 DL/T967-2005 loop resistance tester, IEC61010-1, JJG166-1993 DC resistance verification procedure, JJG724-1991 DC digital ohmmeter verification procedure, pollution degree 2.

• Date Hold
• Alarm function with settings
• Overflow indication
• Overcharge indication
• Low Voltage indication

Features & Benefits:

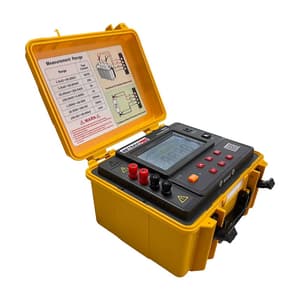

• Adopts a waterproof protective case, which is anti-collision, anti-drop, waterproof (protection grade IP65).
• Equipped with a large-capacity rechargeable lithium battery pack, which is especially suitable for use in outdoor construction sites.
• Automatic and Manual modes. In the automatic measurement mode, the tester automatically selects the range gear and test current. In the manual mode, there are 7 range gear selections to meet the requirements of users in different.
• Function for converting Resistance at temperature 75°C, which can be compensated & converted according to the temperature and material of the tested sample.
• Automatic discharge function, which discharges automatically after the test, and the discharge indication is clear to avoid mis-operation.
• Large LCD screen, which displays the test resistance value and current value on the same screen.
• Bluetooth communication function, which can perform test operations or view test results on the mobile phone after installing the free APP, and particularly convenient for using on-site.
• Stores 600 groups of data.
• Connect to the computer and upload the stored data through the USB interface and monitoring software.
• The monitoring software has the functions of reading, viewing, saving, reporting, and printing historical data etc.

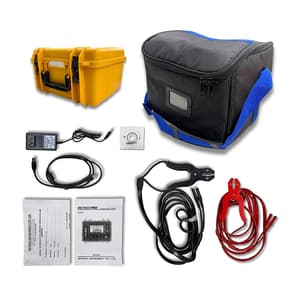

What's Included In This Package:

• Black Test Lead,
• Charger, Red Test Lead,
• Soft Padded Carrying Case,
• Software CD, USB Cable, User Manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
