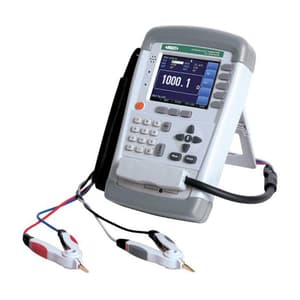

Insize 20000 Max. Reading Handheld DC ohm Meter, 9650-HA20
Roll over image to zoom zoom_in
- Weight: 700 Grams
- Product Type: Ohms Meter
- Max. Reading: 20000
- Basic Accuracy: 0.05%
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹101937.84 (Incl. of all taxes)
₹86388+ ₹15549.84 GST (18%)
MRP ₹125200
SAVE 31%
5 Business Days
1 Set
90303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- 3.5 inch LCD screen with adjustable backlight
- Temperature compensation function
- Full-range short-circuit zero function
- Comparator function: upper and lower limit alarms
- Data hold
- Keyboard lock function
- Automatic power off
Technical Data
| Function | Range | Resolution | Accuracy ("d" is the least reading) | |
| High Current Mode | Slow & Medium Speed Test | 20mΩ | 0.01mΩ | ±(0.5%+3d) |
| 200mΩ / 2Ω / 20Ω / 200Ω / 2kΩ / 20kΩ / 200kΩ | 0.01mΩ / 0.0001Ω / 0.001Ω / 0.01Ω / 0.0001KΩ / 0.001kΩ / 0.01kΩ | ±(0.05%+1d) | ||
| 2MΩ | 0.0001MΩ | ±(0.5%+1d) | ||
| 20MΩ | 0.01MΩ | ±(1%+3d) | ||
| Fast Speed Test | 20mΩ | 0.01MΩ | ±(0.5%+5d) | |
| 200mΩ / 2Ω / 20Ω / 200Ω / 2kΩ / 20kΩ / 200kΩ | 0.01mΩ / 0.0001Ω / 0.001Ω / 0.01Ω / 0.0001KΩ / 0.001kΩ / 0.01kΩ | ±(0.1%+3d) | ||
| 2MΩ | 0.0001MΩ | ±(1%+3d) | ||
| 20MΩ | 0.01MΩ | ±(2%+5d) | ||
| Low Current Mode | Slow, Medium & Fast Speed Test | 20MΩ | 0.01MΩ | ±(0.5%+5d) |
| 200mΩ / 2Ω / 20Ω / 200Ω / 2kΩ / 20kΩ / 200kΩ | 0.01mΩ / 0.0001Ω / 0.001Ω / 0.01Ω / 0.0001KΩ / 0.001kΩ / 0.01kΩ | ±(0.1%+3d) | ||
| 2MΩ | 0.0001MΩ | ±(1%+3d) | ||
| 20MΩ | 0.01MΩ | ±(2%+5d) | ||
Package Contents:
- 1x Handheld DC ohmmeter
- 1x Power Adapter
- 1x Mini USB Communication Cable
- 1x Test Clip
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.OH.00025 |
|---|---|
| Product Type | Ohms Meter |
| Model No | 9650-HA20 |
| Max. Reading | 20000 |
| Basic Accuracy | 0.05% |
| Range Mode | Auto Range, Manual Range & Nominal Range |
| Test Speed | 3t/s (Slow), 15t/s (Medium Speed), 30t/s (Fast) |
| Trigger | Internal, Manual & Remote Trigger |
| Interface | Mini USB interface, compatible with SCPI command |
| Power Supply | rechargeable lithium battery (operating time > 8 hours), power adapter-powered |
| Dimension (mm) | 130 x 210 x 38 mm |
