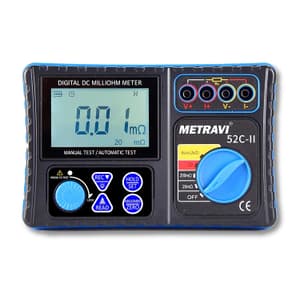

Metravi 3-1/2 Digits / 1999 Counts Milli Ohms Meter, 52C-II
Roll over the image to zoom in
Key Features
- Product Type: Ohms Meter
- Display: 31⁄2 Digit, 1999 Counts, Backlit LCD
- Measurement Range: 20 m, 200 m, 2, 20, 200, 2000 Ohms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,666 (Incl. of all taxes)
₹7,344 + ₹1,322 GST (18%)
MRP was MRP ₹10,800
Save 32%
5 Business Days
1
90303900
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The Metravi 52C-II Milli Ohms Meter is a high-precision, handheld device, designed for accurate measurement of low resistances in critical applications. Whether in electrical maintenance, cable testing, or industrial quality assurance, the 52C-II delivers dependable results with exceptional ease of use. With robust construction, compact design, and user-friendly features, the Metravi 52C-II Milli Ohms Meter is a trusted companion for technicians and engineers who demand accuracy, speed, and portability in low resistance measurement.
Features:
- Data Logging: Store up to 50 measurements for later review
- MAX / MIN Hold: Track extreme values during tests
- Settable Alarms: User-configurable upper and lower limits for alerts
- Over-Range Indication: for accurate results
- Test Lead Resistance Compensation: For accurate baseline calibration and repeatability
- Zero Function: For accurate baseline calibration & repeatability
Applications:
- Contact resistance testing (switches, relays, connectors)

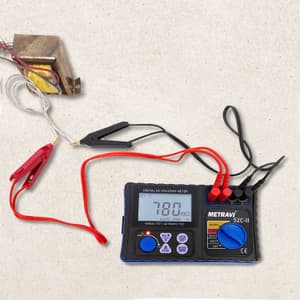

- Transformer and motor winding resistance measurement
- Cable and bus bar continuity checks
- Quality assurance in manufacturing and maintenance environments
What's Included In This Package:
- Milli Ohms Meter
- 1 pair Test Leads
- 6 Batteries
- Carrying Case
- User Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 31⁄2 Digit, 1999 Counts, Backlit LCD |
|---|---|
| Measurement Range | 20 m, 200 m, 2, 20, 200, 2000 Ohms |
| Sampling Speed | 2/s |
| Data Storage | Up to 50 Records (manually) |
| Range Selection | Manual & Automatic |
| Selectable Test Currents | 100 mA / 50 mA for flexibility and safety |
| Accuracy | ±0.5% ±3 Digits |
| Resolution | From 0.01 m to 1 Ohms |
| Alarms | User Settable HI & LO |
| Operating Environment | -15°C to 55°C, <75% RH |
| Storage Environment | -50°C to 60°C, <90% RH |
| Power Source | 6× 1.5A AA Alkaline Batteries |
