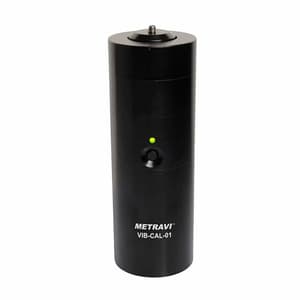

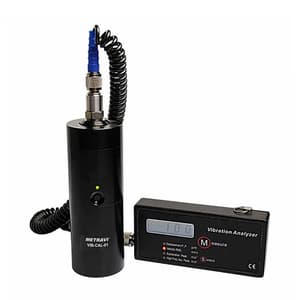

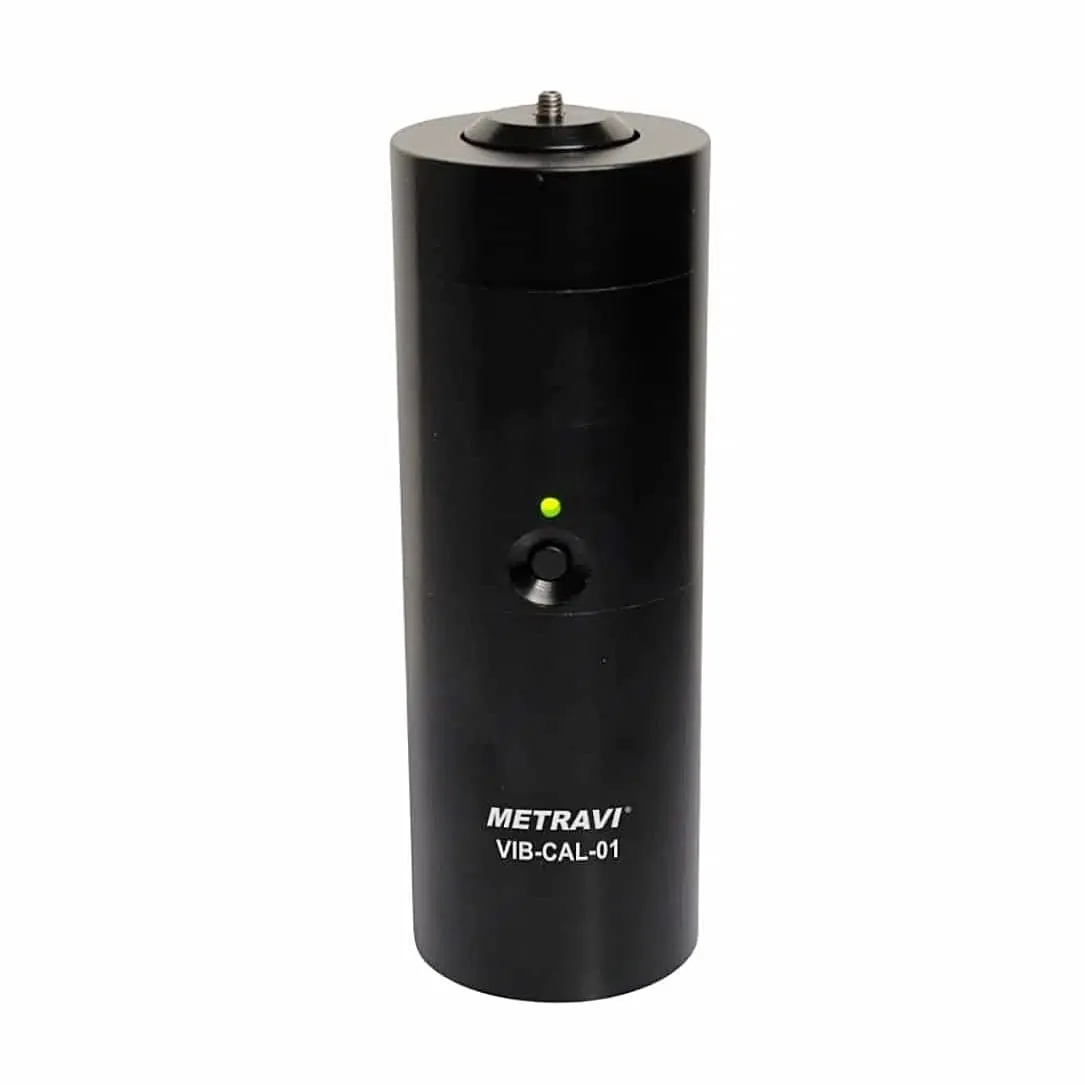

The VIB-CAL-01 Portable Vibration Calibrator combines signal generator, power amplifier, standard transducer and a shaker in one housing and features a small size, high accuracy and easy operation. It can be used either for laboratory reference or on site verification. It generates sinusoidal vibration at frequency 159.2Hz and can be used to calibrate vibration transducers. The frequency & amplitude of the vibration acceleration, vibration velocity and vibration displacement are all fixed, so no not need for any adjustments.

The Vibration Calibrator is controlled by a single button for power on and off. After 50 seconds vibration, it powers off automatically. A green/orange LED for operation is available with low battery indication feature. It is controlled by 1 button for power on. After 50 second vibration, it powers off automatically. A green/orange LED for operation and low battery indication

Features:

• Amplitude : Acceleration : 9.81 m/s2 RMS
• Maximum load : 120 grams
• Power : 9V Rechargeable Battery (Upto 1.5 hours operation)
• Charge time : 15 hours
• Sensor Mounting base : M5 tapped hole
• Operating Temperature : 0°C to 55°C
• Operating Humidity : 90% non–condensing

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
