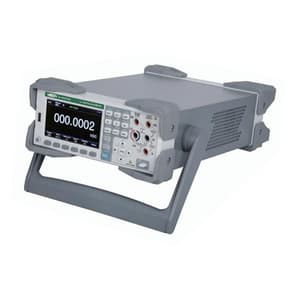

Insize 6-1/2 Digit / 1000V Bench Type Digital Multimeter, 9258-KC550
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 3.4 kg
- Resolution: 6-1/2 Digits
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,46,928 (Incl. of all taxes)
₹1,24,515 + ₹22,413 GST (18%)
MRP was MRP ₹1,80,457
Save 31%
7 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Measuring speed up to 10k rdgs/s
- Built-in thermocouple cold-end compensator
- Support statistical analysis of data
- Support bar graph, trend graph and histogram display
- Rear panel test function
- Supports standard SCPI remote control commands
- Temperature: supports thermocouple and RTD testing
- Mathematical Operation: maximum, minimum, average, Standard Deviation, relative, dBm, dB
- Trigger: automatic trigger, single trigger, external trigger
- Display: digital, dual-window, histogram, tendency chart, bar chart
- Interface: communication interface: USB/LAN/RS232; storage interface: U disk
- Storage Environment: temperature: -20°C~70°C, humidity: <95%RH (non-condensation)
Operation Environment:
- Temperature: 0°C-28°C, humidity: <90%RH;
- Temperature: 28°C-40°C, humidity: <75%RH;
- Temperature: 40°C-55°C, humidity: <50%RH (non-condensation)
Technical Data:
| Function | Range | Basic Accuracy (reading%-range%) |
| DC Voltage | 200mV / 2V / 20V / 200V / 1000V | ±(0.0035+0.0006) |
| AC Voltage | 200mV / 2V / 20V / 200V / 750V | ±(0.06+0.03) |
| DC Current | 2µA / 20µA / 200µA / 2mA / 20mA / 200mA / 2A / 10A | ±(0.05+0.002) |
| AC Current | 200µA / 2mA / 20mA / 200mA / 2A / 10A | ±(0.1+0.04) |
| Resistance | 20Ω / 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 10MΩ / 1OOMΩ / 1GΩ | ±(0.01+0.001) |
| Capacitance | 2nF / 20nF / 200nF / 2µF / 20µF / 200µF / 2mF / 20mF / 100mF | ±(1+0.1) |
| Frequency | 3Hz - 1MHz | ±(0.007) |
What's Included In This Package:
- 1x Bench Type Digital Multimeter
- 2x Test Lead
- 2x Test Clip
- 1x RS232 Cable
- 1x K-type Thermocouple
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Resolution | 6-1/2 Digits |
|---|---|
| Measuring Speed | up to 10k rdgs/s |
| Frequency | 3Hz - 1MHz |
| Continuity check | Adjustable from 0 - 2000 Ohm, default is 30 Ohm |
| Diode Test | 0 - 4V |
| Frequency Response | 300kHz |
| Communication Interface | USB/LAN/RS232 |
| Storage Interface | U disk |
| Power Supply | 100 - 120V, 45 - 440Hz, 200 - 240V, 45 - 66Hz |
| Dimensions (WxHxD) | 378 x 256 x 113 mm |
