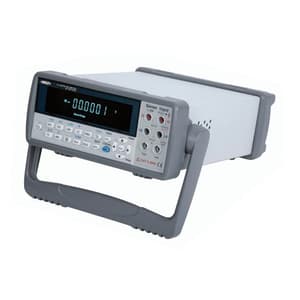

Insize 6-1/2 Digit / 1000V Basic Type Digital Multimeter, 9231-H610
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 4.1 kg
- Resolution: 6-1/2 Digits
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,63,102 (Incl. of all taxes)
₹1,38,222 + ₹24,880 GST (18%)
Out of Stock
7 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Upper and lower limit alarm
- Can store 10000 sets of data
- Temperature: supports thermocouple and RTD testing (manual cold-end compensation)
- Mathematical Operation: maximum, minimum, average, relative, dBm
- Operation Environment: temperature: 0°C-40°C, humidity: <80%; temperature: 40°C-50°C, humidity: <70% (non-condensation)
- Storage Environment: temperature: -25°C-60°C, humidity: <90% (non-condensation)
Technical Data:
| Function | Range | Basic Accuracy (reading%-range%) |
| DC Voltage | 100mV / 1V / 10V / 100V / 1000V | ±(0.0035+0.0005) |
| AC Voltage | 100mV / 1V / 10V / 100V / 750V | ±(0.05+0.03) |
| DC Current | 10mA / 100mA / 1A / 10A | ±(0.015+0.005) |
| AC Current | 10mA / 100mA / 1A / 10A | ±(0.1+0.03) |
| Resistance | 100Ω / 1kΩ / 10kΩ / 100kΩ / 1MΩ / 10MΩ / 100MΩ | ±(0.01+0.001) |
| Capacitance | 10nF / 100nF / 1µF / 10µF / 100µF / 1000µF / 10mF | ±(1+0.5) |
| Frequency | 3Hz - 100kHz | ±(0.01) |
What's Included In This Package:
- 1x Digital Multimeter
- 2x Test Lead
- 2x Test Clip
- 1x RS232 Cable
- 1x USB Cable
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Resolution | 6-1/2 Digits |
|---|---|
| Min. integral Time | 0.125PLC |
| Frequency | 3Hz - 100kHz |
| Continuity check | 100 Ohm (range), 20 Ohm (threshold) |
| Diode Test | 0 - 5V |
| Frequency Response | 100kHz |
| Communication Interface | USB/RS232 |
| Power Supply | 220V±10%, 50/60Hz |
| Dimensions (WxHxD) | 310 x 255 x 109 mm |
