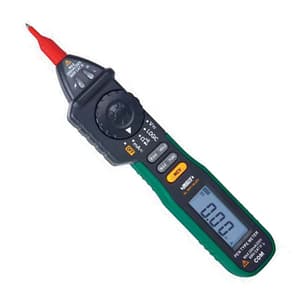

Insize 200 V - 600 V Pen Type Digital Multimeter, 9241-ML200
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Diode: Open Circuit Voltage 1.5V
- Continuity buzzer: <50
- Power Supply: 2x1.5V AAA batteries
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,310 (Incl. of all taxes)
₹2,805 + ₹505 GST (18%)
MRP was MRP ₹4,065
Save 31%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Auto/manual ranging
- Maximum mode
- Data hold
- Low battery display
- Auto power off
- Safety rating: CAT III 600V.
Specification:
| Function | Range | Resolution | Accuracy |
| DC Voltage | 200mV/ 2V / 20V / 200V / 600V | 0.1mV / 1mV / 10mV / 0.1V / 1V | ±(0.7%+2) |
| AC Voltage | 200mV / 2V / 20V / 200V 600V |
0.1mV / 1mV / 10mV / 0.1V 1V |
±(0.8%+3) ±(1.0%+3) |
| DC Current | 20mA/200mA | 10umA/0.1mA | ±(1.5%+3) |
| AC Current | 20mA/200mA | 10mA/0.1mA | ±(2.0%+3) |
| Resistance | 200 2k /20k /200k/2M 20M |
0.1 1 /10 /0.1k /1k 10k |
±(1.0%+3) ±(1.0%+1) ±(1.0%+5) |

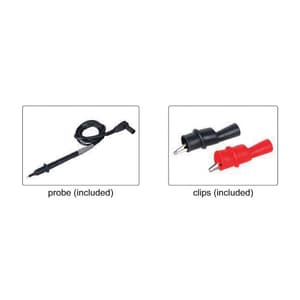

Standard Delivery:
| Main unit | 1 Pc |
| Probe | 1 Pc |
| Clip | 2 Pcs |
| 1.5V battery | 2 Pcs |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Logic level Test | <1.5V (green LED ON) 1.5~3.5v (green & red LED off) >3.5V (red LED on) |
|---|---|
| Diode | Open Circuit Voltage 1.5V |
| Continuity buzzer | <50 |
| Power Supply | 2x1.5V AAA batteries |
