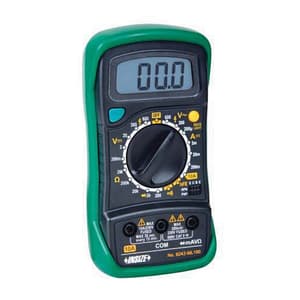

Insize 200 V - 600 V Digital Multimeter, 9242-ML100
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Continuity buzzer: <70+/-30
- Transistor hFE: Measuring range 0~1000
- Power Supply: 1x9V 6F22/NEDA 1604 battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,449 (Incl. of all taxes)
₹1,228 + ₹221 GST (18%)
MRP was MRP ₹2,082
Save 41%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Data hold
- Display backlight
- Low battery display
- Safety rating: CAT II 600V.
Specification:
| Function | Range | Resolution | Accuracy |
| DC Voltage | 200mV / 2V / 20V / 200V 600V |
0.1mV / 1m / 10mV / 0.1V 1V |
±(0.5%+3) ±(0.8%+5) |
| AC Voltage | 20V / 600V | 0.1V / 1V | ±(1.2%+10) |
| DC Current | 200uA / 2mA 20mA 200mA 10A |
0.1uA/1uA 10uA 0.1mA 10mA |
±(1.0%+3) ±(1.0%+5) ±(1.5%+5) ±(3.0%+10) |
| Resistance | 200 2k / 20k / 200k 2M |
0.1 1 / 10 / 0.1k 1k |
±(0.8%+5) ±(0.8%+2) ±(1.0%+5) |
Standard Delivery:
| Main unit | 1 pc |

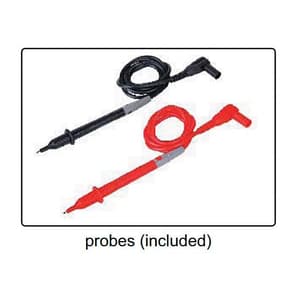

| Probe | 2 pcs |
| 9V battery | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Diode | Open circuit voltage 3.0V |
|---|---|
| Continuity buzzer | <70+/-30 |
| Transistor hFE | Measuring range 0~1000 |
| Power Supply | 1x9V 6F22/NEDA 1604 battery |
