KM OHM 8501 digital DC low resistance meter, also known as micro-ohmmeter, ohmmeter, or equipotential tester, adopts microprocessor technology, a four-wire method for testing, safe, precise and reliable. Mainly used to measure the wire resistance of cables, the contact resistance of switches, connectors, relays, the resistance of coils, motors, transformer windings, and equipment enclosures, lightning protection belts, ground beams, structures, cabinets, steel bars, water pipes, windows, guardrails, and heat dissipation.

Test the connection resistance between metal components of objects such as devices, assembly lines, etc. It is widely used in telecommunications, electric power, meteorology, computer rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, lightning rods, etc.

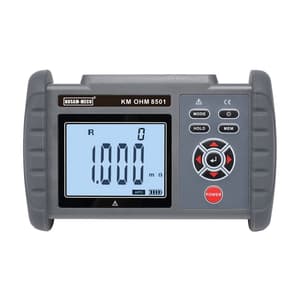

KM OHM 8501 digital DC low resistance meter is composed of a host, monitoring software, test line, communication line, etc. The large-screen LCD display of the main unit is clear at a glance, and the port overload prevention function prevents the instrument from being burned out by misoperation. Can store 500 sets of data, resistance measurement range: 0.001mΩ ~300.0KΩ. The upper computer software has functions such as historical data reading, consulting, saving, and reporting.

Features:

• USB data upload function
• Charging function
• Function: Mainly used to measure the wire resistance of cables, the contact resistance of switches, connectors, relays, the resistance of coils, motors, transformer windings, and metal riveting resistance, the connection resistance test between metal components, the low-value resistance test, and the ground grid and ground poles. Resistance test of connecting conductor, contact resistance test, etc.
• Backlight: Controllable gray and white screen backlight, suitable for dim places
• Data storage: 500 groups, "MEM" storage indication, display "FULL" symbol to indicate storage is full
• Data review: Data review function - "MR" symbol display
• Overflow display: Over-range overflow function: "OL" symbol display
• Battery voltage: Real-time display of battery power, reminding timely charging when battery voltage is low
• Automatic shut-down: “APO” indicates, automatic shutdown after 15 minutes
• Power consumption: Standby - about 100mA (backlight off) / Turn on backlight: about 105mA / Measure: 2A Max (backlight off)
• Overload protection: AC 220V/0.0001 second between C1-C2 P1-P2 ports, after overload protection, you need to restart the meter to test normally
• Electromagnetic properties: IEC61010-4-3, Wireless frequency electromagnetic field ≤ 1V/m
• Suitable for Safety Regulations: IEC61010-1, CAT ? 600V, pollution level 2, JJG724-1991 "Determination of Direct Current Digital Ohmmeters", JJG166-1993 "Dialect Resistor Verification Regulations", "DL/T967-2005 Loop Resistance Tester and DC Resistance Fast Tester Verification Procedures"
