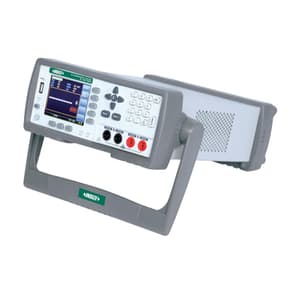

Insize 220000 Max. Reading DC Resistance Tester, 9651-RM20
Roll over image to zoom zoom_in
- Weight: 2.5 Kg
- Product Type: Ohms Meter
- Max. Reading: 220000
- Basic Accuracy: 0.05%
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹104392.24 (Incl. of all taxes)
₹88468+ ₹15924.24 GST (18%)
MRP ₹128214
SAVE 31%
5 Business Days
1 Set
90303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- 3.5-inch LCD screen
- Temperature compensation function
- Short-circuit zeroing calibration
- Bad contact detection
- Comparator: pass or fail judge
- Keyboard lock function
Technical Data
| Function | Range | Resolution | Accuracy ("d" is the least reading) |
| Slow Test | 20mΩ | 0.001mΩ | ±(0.1%+3d) |
| 200mΩ / 2Ω / 20Ω / 200Ω / 2kΩ / 20kΩ / 200kΩ | 0.001mΩ / 0.00001Ω / 0.0001Ω / 0.001Ω / 0.00001kΩ / 0.0001kΩ / 0.001kΩ | ±(0.05%+2d) | |
| 2MΩ | 0.0001MΩ | ±(0.1%+5d) | |
| Medium Speed Test | 20mΩ | 0.001MΩ | ±(0.2%+5d) |
| 200mΩ / 2Ω / 20Ω / 200Ω / 2kΩ / 20kΩ / 200kΩ | 0.001mΩ / 0.00001Ω / 0.0001Ω / 0.001Ω / 0.00001kΩ / 0.0001kΩ / 0.001kΩ | ±(0.1%+3d) | |
| 2MΩ | 0.0001MΩ | ±(0.2%+5d) | |
| Fast Test | 20MΩ | 0.01MΩ | ±(0.8%+5d) |
| 200mΩ / 2Ω / 20Ω / 200Ω / 2kΩ / 20kΩ / 200kΩ | 0.01mΩ / 0.0001Ω / 0.001Ω / 0.01Ω / 0.0001KΩ / 0.001kΩ / 0.01kΩ | ±(0.5%+5d) | |
| 2MΩ | 0.001MΩ | ±(0.8%+5d) |

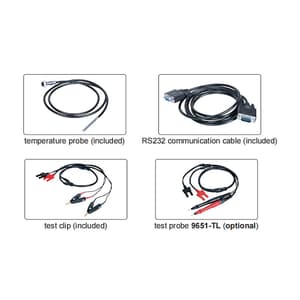

Package Contents:
- 1x DC Resistance Tester
- 1x RS232 Communication Cable
- 1x Temperature Probe
- 1x Test Clip
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.OH.00026 |
|---|---|
| Product Type | Ohms Meter |
| Model No | 9651-RM20 |
| Max. Reading | 220000 |
| Basic Accuracy | 0.05% |
| Range Mode | Auto Range, Manual Range & Nominal Range |
| Test Speed | 3t/s (Slow), 18t/s (Medium Speed), 60t/s (Fast) |
| Trigger | Internal, Manual & External Trigger |
| Interface | Handler Interface, RS232 Interface, RS485 Interface, USB Interface & Temperature Compensation Interface |
| Power Supply | 100V~240V (AC), 50Hz/60Hz |
| Dimension (mm) | 307 x 264 x 107 mm |
