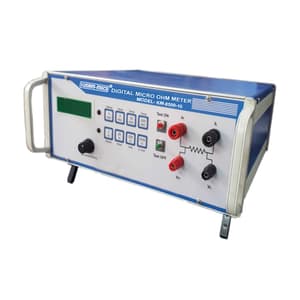

Kusam-Meco 4-1/2 Digits 10A Digital Micro Ohm Meter, KM-8500-10
Roll over the image to zoom in
Key Features
- Product Type: Ohms Meter
- Current Source: 10A
- Display Digits: 4-1/2 Digit
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹74,151 (Incl. of all taxes)
₹62,840 + ₹11,311 GST (18%)
MRP was MRP ₹78,550
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- Four Terminal Measurement eliminates lead resistance errors.
- Highly stable Current Source 10A for accurate and stable measurements
- Resolution 0.1 Micro Ohm in 2 milli Ohm range
- Protection against back EMF for high inductive loads.
Technical Data:
| Range | Max. Reading | Current | Resolution | Accuracy |
| 2 mΩ | 1.9999 mΩ | 10A | 0.1µΩ | ±0.5% of rdg ±5 Digits |
| 20 mΩ | 19.999 mΩ | 1A | 1µΩ | ±0.05% of rdg ±5 Digits |
| 200 mΩ | 199.99 mΩ | 1A | 10µΩ | |
| 2000 mΩ | 1.9999 Ω | 100mA | 100µΩ | |
| 20 Ω | 19.999 Ω | 10mA | 1mΩ | |
| 200 Ω | 199.99 Ω | 1mA | 10mΩ | |
| 2000 Ω | 1999.9 Ω | 0.1mA | 100mΩ |
Package Content:
- Digital micro ohm meter
- One set of Test leads (1meters) with Crocodile clips
- Mains Cord
- User Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Current Source | 10A |
|---|---|
| Aux. Power | 230V + 10% AC, 50Hz |
| Resolution | 0.1 Micro Ohm |
| Display Digits | 4-1/2 Digit |
